SWT-JRT-2G-01 GPS anti-jamming antenna

SWT-JRT-2G-01 GPS anti-jamming antenna

n Function

1) Receiving the BDS-B1/GPS L1/GLONASS L1 satellite navigation signal, and realizing the anti-jamming function for the BDS-B1/GPS L1 frequency signal；

2) Power supply and RF signal output together。

n Main Technique Data

² Number of channels	2 channels	² weight	270g±10g

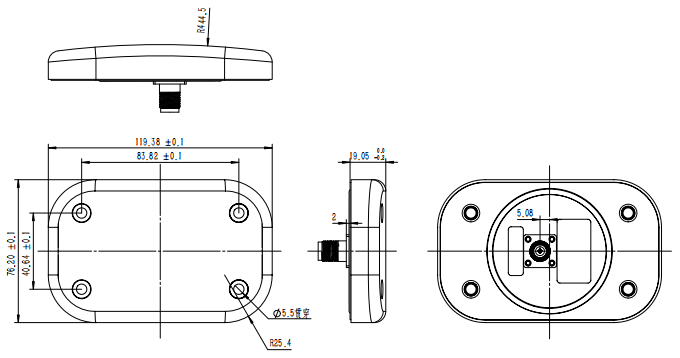

² Anti-jamming signal ratio	One broadband jam: 85dB～90dB。	² size	Shape：119.4mm x 76.2mm x 18.9mm; Installation：83.8mm x 40.6mm
² Power / Power consumption	DC5V±0.5V; 5.0W±0.5W	² Connectors	TNC-K
² Storage temperature range	-55℃～85℃	² working temperature range	-40℃～85℃
