Description

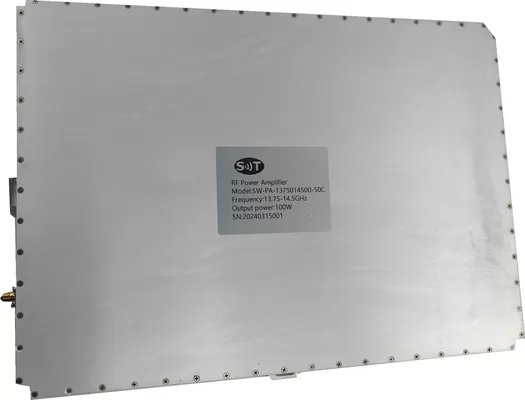

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Outline Dimensional Drawing
Specification
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 13750 | 14500 | MHz | |
| RF INPUT | 0 | dBm | ||
| P-sat Power Output | 50 | dBm | ||
| Power Gain | 50 | dB | ||
| Power Gain Flatness | ±1 | dB | ||
| Harmonic Signals | -30 | dBc | ||
| IM3@Two-tone Test,Po=41dBm (Single Carrier Level) Δ f=5MHz(IM3) | -25 | dBc | ||
| Input VSWR | 1.5 | 2 | ||
| Operating Voltage | 24 | V DC | ||
| Currents | 32 | A | ||
| In-Out impedance | 50 | Ω | ||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 350*280*40 | mm |
| RF Connectors (Input / Output) | SMA- KFD/ N- KFD | — |
| DC / Control Connector | D-SUB 7W2 | — |
| Cooling | Consider heat dissipation with the system | — |
| Mounting | φ3-8 Thru Hole | — |
| Weight | ≤10 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -20 | +55 | °C |
| Humidity Range | 0-100 | % | |
| PA Baseplate Shutoff Temperature | + 85 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2 | ||
| TRIAD CABLE PART NUMBER: | — | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1-2 | +VDC | +24V | |
| 3 | GND | Ground | |
| 4 | NC | NC | |
| 5 | Amp Enable | Disable: TTL "Low", Enable : TTL "High" (Low : 0~0.5V, High : 2.5~5V) | |
| 6-9 | GND | Ground | |
