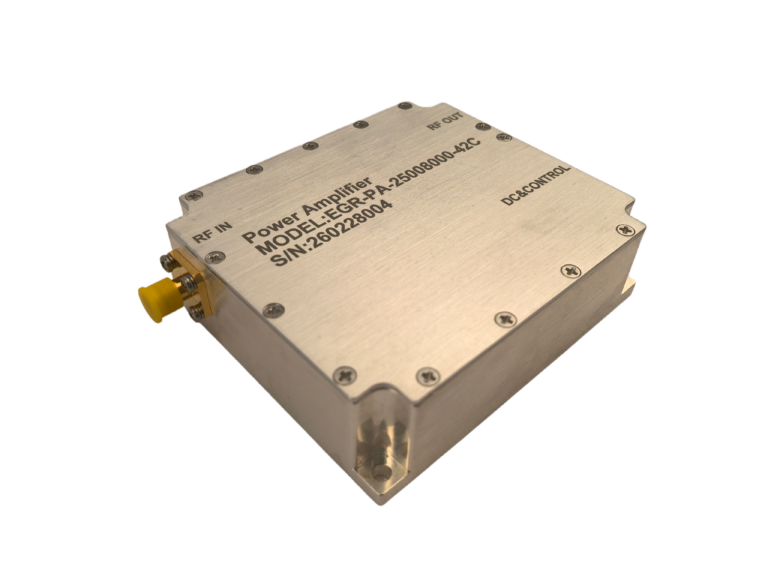

Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.

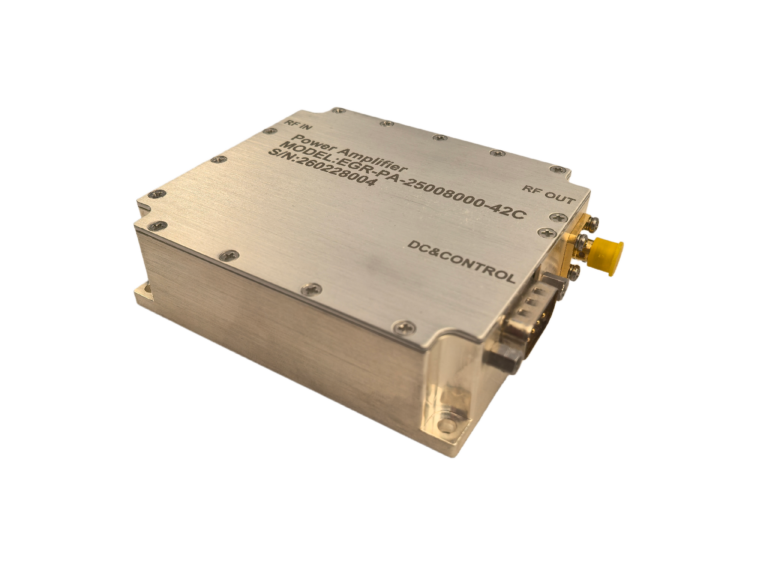

RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2500 | 8000 | MHz | |
RF INPUT | 0 | 5 | dBm | |
RF Gain @ P–sat | 42 | dB | ||
P–sat Output Power | 41 | 42 | dBm | |
Power Gain Flatness | ±2 | dB | ||
Switching time | 400 | ns | ||
In/Out Impedance | 50 | Ω | ||
Input VSWR | 1.3 | –– | ||
Operating Voltage | 26 | 28 | 30 | V DC |
Current@15W | 2.5 | 3.5 | A | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

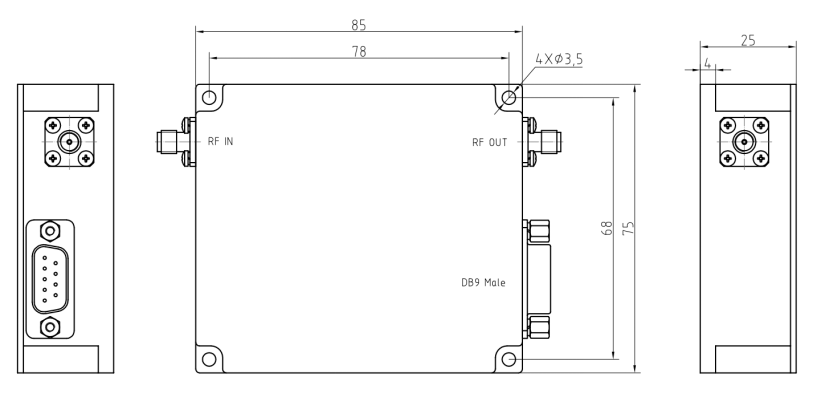

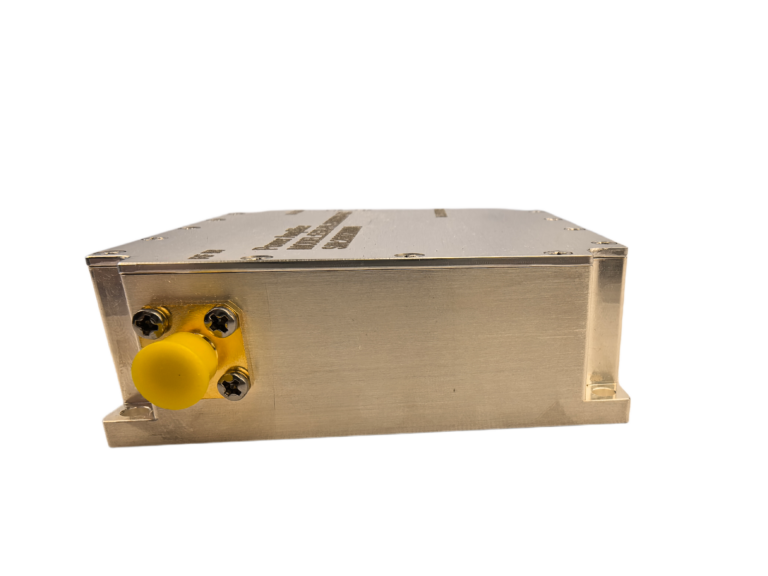

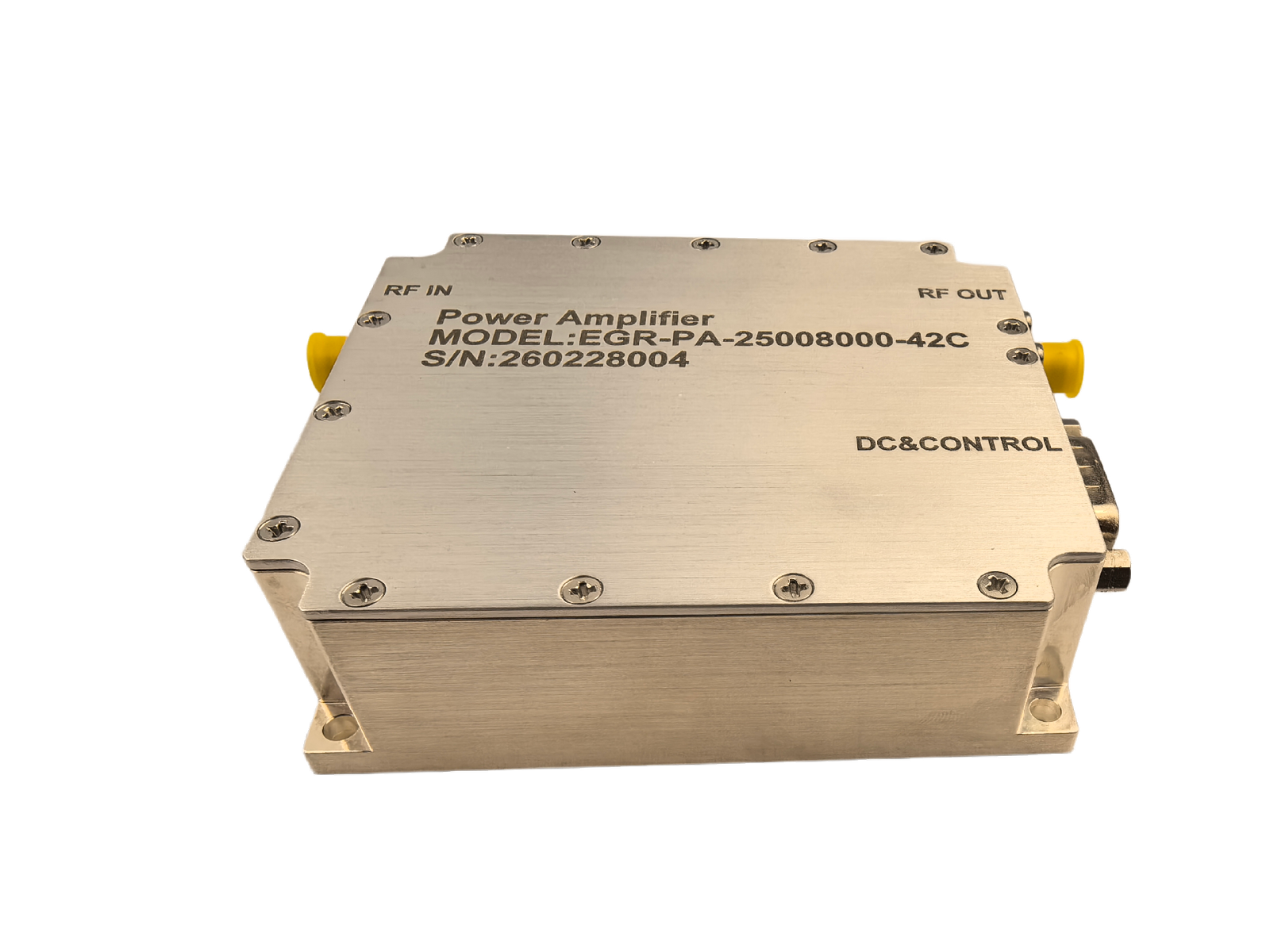

Dimensions (W x D x H) | 85*75*25 | mm |
RF Connectors (Input / Output) | SMA-K / SMA-K | — |
DC/Control Connector | DB9 Male | — |
Mounting | φ3.5–4 Thru Hole | — |
Cooling | External heat dissipation fins are required | — |
Weight | ≤0.35 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +50 | °C |
Humidity Range | 0-95 | % | |
| ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |
X1 | SMA- KFD | RF IN |
X2 | SMA- KFD | RF OUT |
X3 | DB9 Male | DC / Control interface |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | DB9 Male | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1-3 | VDD | + 28V |
4-6 | GND | GND |
7 | Current sensor | Current sensor voltage value: Voltage range 2.5-3.15V corresponds to output power of 0 A~3 A |
8 | Temperature sensor | Temperature sensor voltage value: Voltage range 0.25-1.25V corresponds to output power of -25 ℃~+75 ℃ |
9 | PA Enable(1) | On/Off (0…0.5V off, 2.5…5V on) |
Note: (1) Logic Lo: 0~1V; Logic Hi: 2.5~5V
