High Power Output 47dBm 2 – 8GHz Wideband Power Amplifier for signal transmission in Telecommunications
Description
The 2-8 GHz 47 dBm Wideband Power Amplifier is an RF amplifier designed to provide high-power amplification across a broad frequency range of 2 GHz to 8 GHz. Its key features include:
Wide Frequency Range: Covers the 2 GHz to 8 GHz range, making it suitable for a variety of RF applications, including communication, radar, and satellite systems.
High Power Output: Delivers up to 47 dBm of output power, enabling strong signal transmission over long distances or to high-power systems.
Wideband Performance: Capable of amplifying signals across a wide frequency spectrum without significant distortion, making it versatile for different types of RF signals.
Applications:
This wideband power amplifier is commonly used in:
Telecommunications: In communication systems that require high power for signal transmission, such as mobile base stations and wireless communication links.
Radar Systems: For long-range detection and imaging in radar applications, including military, aerospace, and automotive radar.
Satellite Communication: Amplifying uplink or downlink signals in satellite communication systems, particularly for high-capacity data links.
Test & Measurement: Used in RF testing and measurement systems to simulate or boost signals for evaluating system performance.
Broadcasting: For high-power signal transmission in broadcasting applications, ensuring coverage over large areas.
The 2-8 GHz 47 dBm Wideband Power Amplifier is designed for applications that require both high output power and a broad frequency range, delivering strong, reliable performance in demanding RF environments.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 2 | 8 | GHz | |
| Power Gain | 42 | dB | ||
| Gain Flatness | ±3 | dB | ||
| Output Power | 47 | dBm | ||
| Noise Figure | dBm | |||
| IP3 | dBm | |||
| Spurious | -15 | dBc | ||
| Harmonics | -10 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| DC Power Supply | +28 | Volt | ||
| Current | 6 | A | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | dBm | |||
| Operating Temperature | -20 | +70 | ℃ | |
| Non-operating Temperature | -55 | +70 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | 10000 | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||

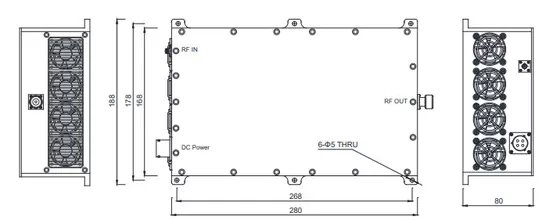

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 280*188*80 | Max | Millimeter |
| Weight | 3 | Max | Kg |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | N-F | ||
| DC Interface Connectors | DB15 | ||
| Impedance | 50 | Ohms | |
