Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
PARAMETER | RF / CHARACTERISTICS | UNIT |
Frequency Range | DC-3GHz | GHz |
VSWR | ≤1.15 | — |
Power | 50W | W |
Connector | N-Male | — |
Impedance | 50 Ω | Ω |

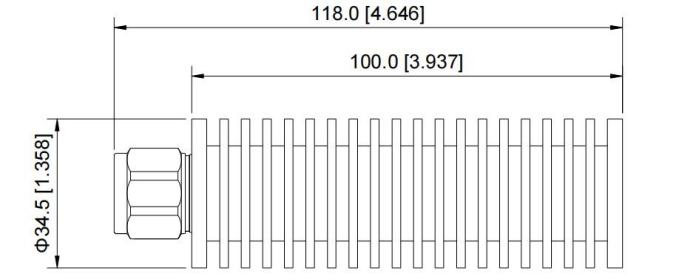

Outline Dimensional Drawing（ mm/ inch）
