High-performance device 5000-5990MHz RF Power Amplifier for Wi-Fi , 5G millimeter-wave, and satellite communication
The 5000-5990 MHz RF Power Amplifier is a high-performance device designed for the 5-5.99 GHz frequency range, delivering up to 50W of output power. It is widely used in wireless communication, radar systems, electronic warfare, and testing equipment, making it ideal for scenarios requiring high-frequency and medium-power solutions.
Features
Wide Frequency Coverage: Operates within the 5-5.99 GHz range, meeting the needs of advanced communication and signal transmission.
High Power Output: Provides stable output power of up to 50W, ensuring reliable performance.
High Efficiency: Optimized energy conversion efficiency, reducing heat loss.
Compact Design: Modular or chassis-based design for easy integration into various systems.
Typical Applications
Wireless Communication: Widely used in Wi-Fi (especially Wi-Fi 6E), 5G millimeter-wave, and satellite communication.
Radar Systems: Supports high-frequency radar applications such as long-range monitoring, maritime surveillance, and aviation radar systems.
Electronic Warfare: Enhances the output of jamming signals, playing a critical role in electronic warfare.
Testing Equipment: Serves as an RF signal amplification module in laboratory and industrial testing systems.
Research and Development: Provides support for prototype validation and advanced RF technology development.
Technical Choices
Core Technology: Utilizes Gallium Nitride (GaN) or LDMOS transistor technology, offering high power density and excellent linearity.
Thermal Management: Equipped with air-cooled or liquid-cooled designs to ensure stable operation during high-power output.
Protection Features: Includes built-in over-temperature, overload, and reflected power protection (VSWR protection) to extend the device's lifespan.
Modular Design: Enables easy system integration and customization based on specific requirements.
This 5000-5990 MHz 50W RF Power Amplifier, with its superior performance, wide frequency range, and high reliability, is an essential choice for modern wireless communication and defense applications.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 5000 | 5990 | MHz | |
Oeration mode | Sweep frequency source | |||
P-sat Power Output | 46.5 | 47 | dBm | |
Power Gain Flatness | ±2.5 | dB | ||
Input VSWR | 2 | |||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Current | 9 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

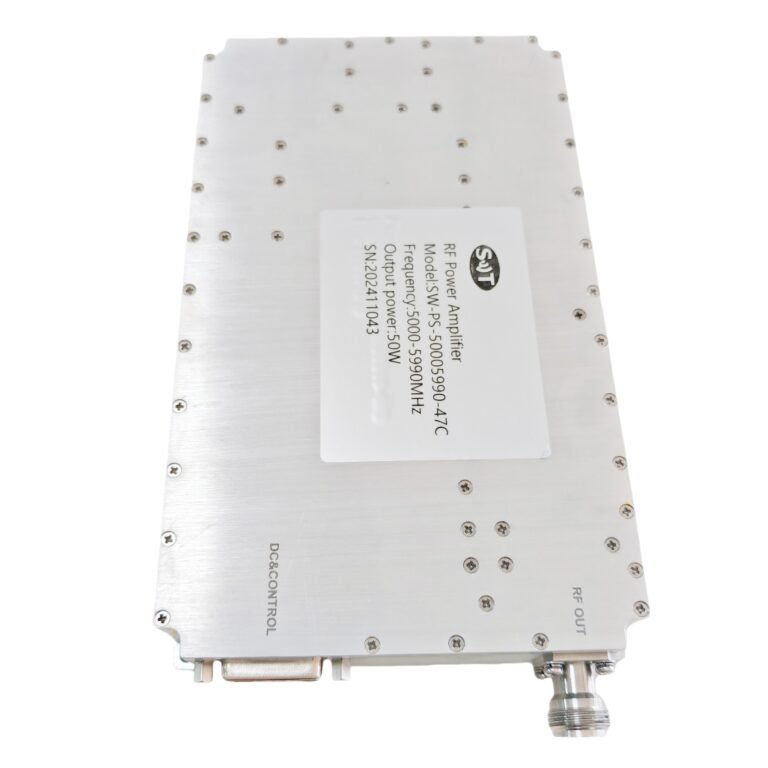

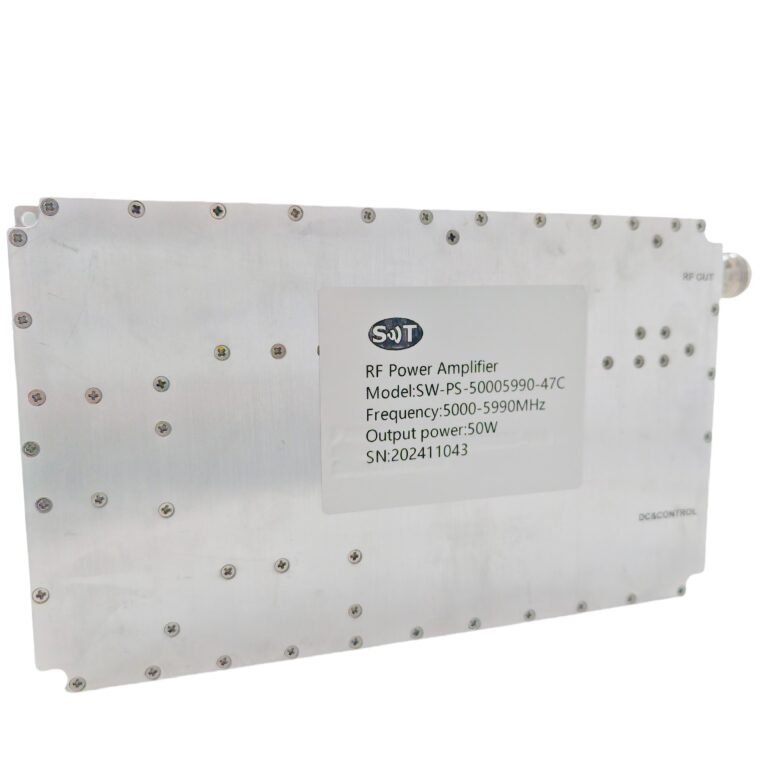

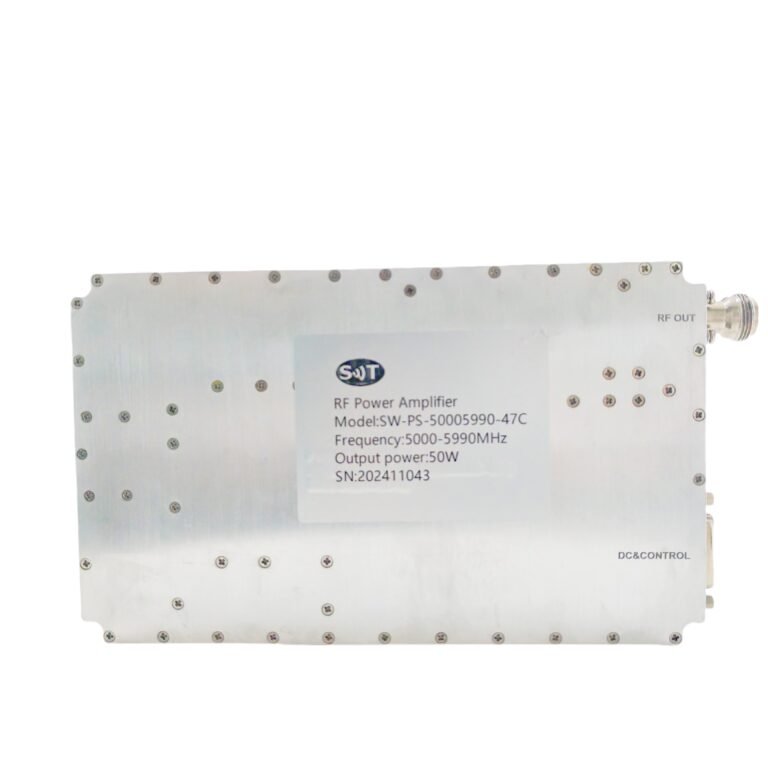

Dimensions (L x W x H) | 200x120x30 | mm |

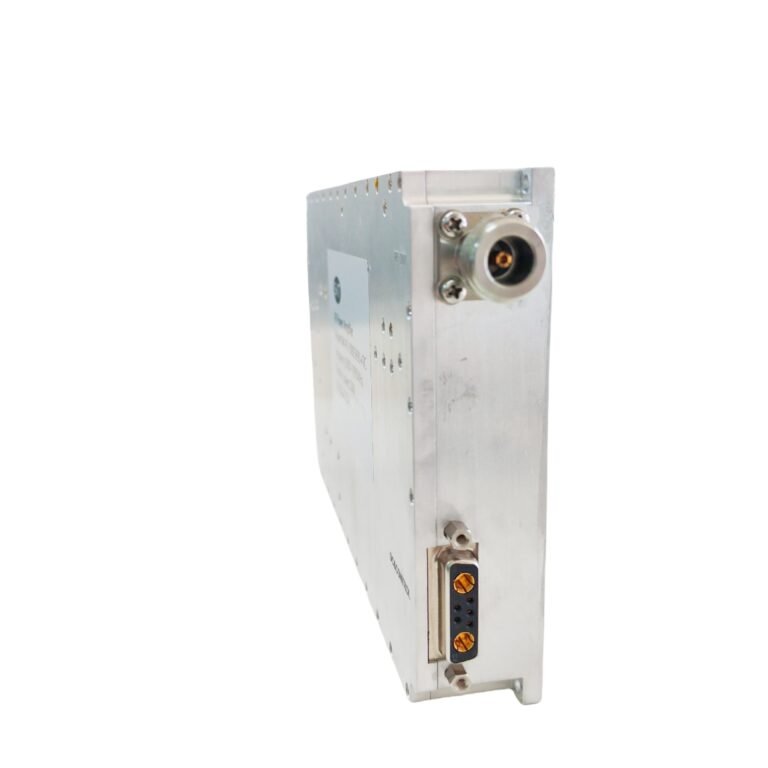

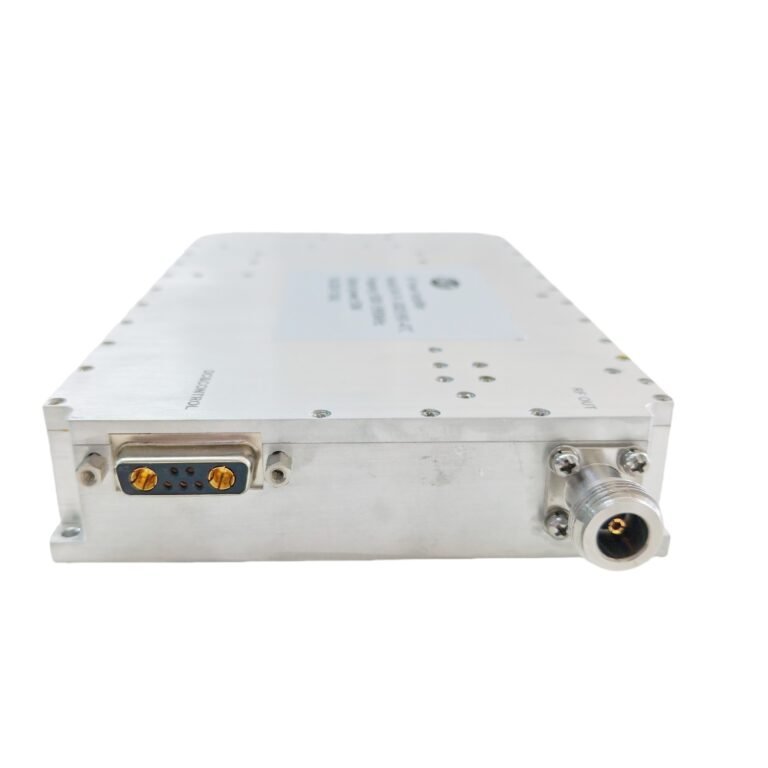

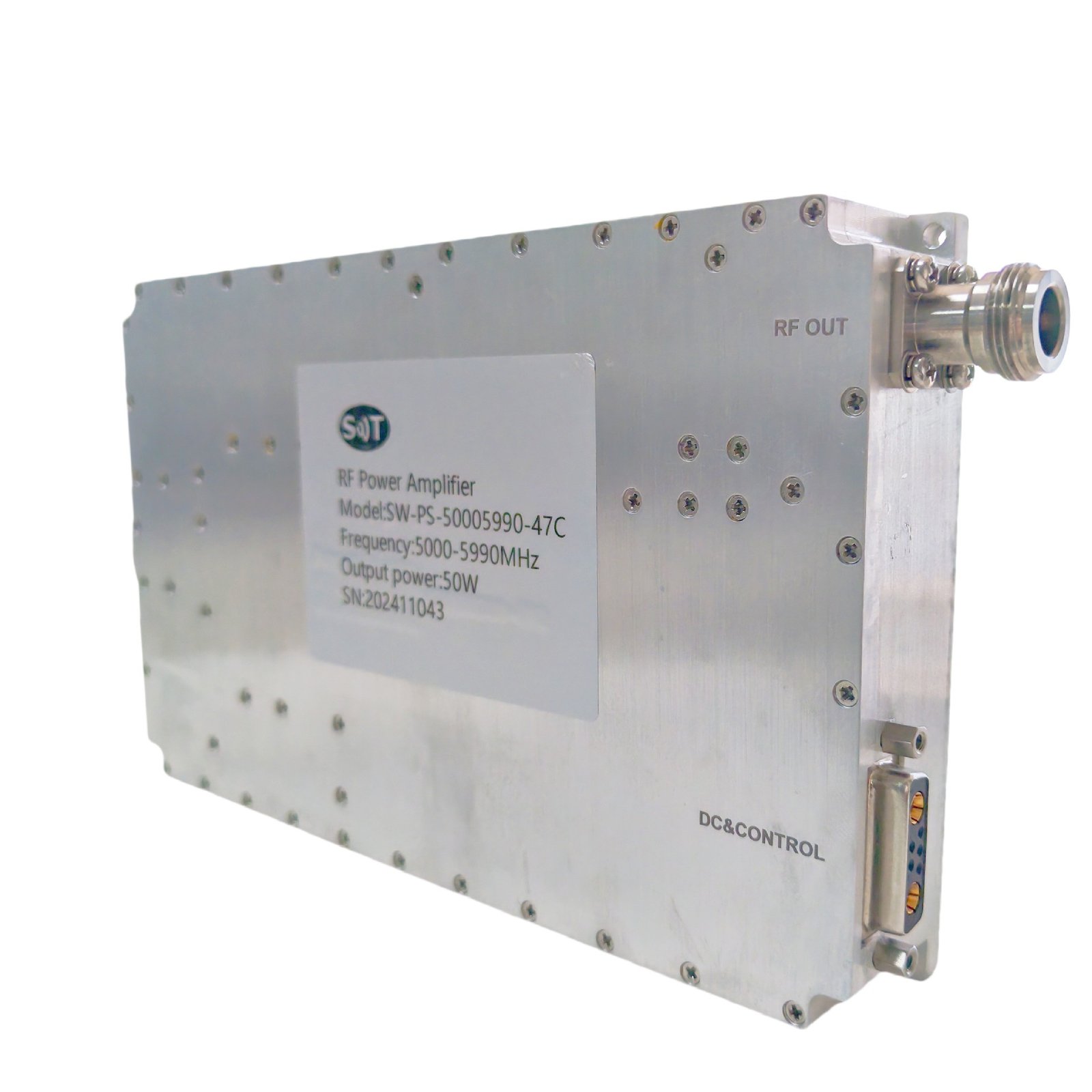

RF Connectors (Input / Output) | N- KFD | — |
DC / Control Connector | D SUB 7W2 | — |
Cooling | Consider heat dissipation with the system | — |
Mounting | 3-6 Thru Hole | — |
Weight | ≤1.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -40 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 90 | °C | |
INPUT/OUTPUT PINS | |||
AMPLIFIER CONNECTOR TYPE: | D SUB 7W2 | ||
TRIAD CABLE PART NUMBER: | —— | ||
PIN NUMBER | LABEL | DESCRIPTION | |
A1 | +VDC | +28V | |
A2 | GND | Ground | |
1-2 | NC | NC | |
3 | RS485A | Gain Control and Seep speed Control | |
4 | RS485B | ||
5 | GND | ||
