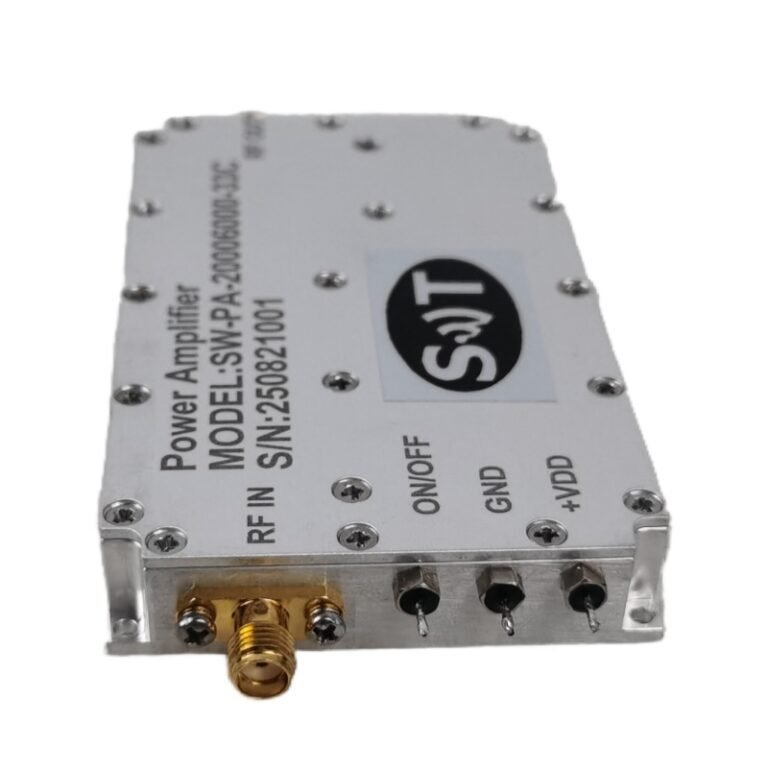

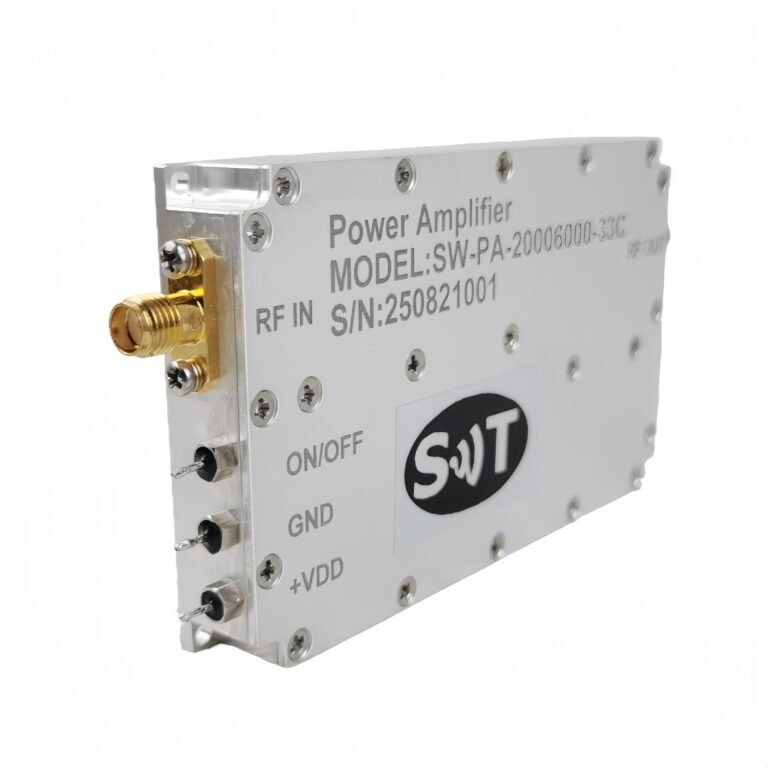

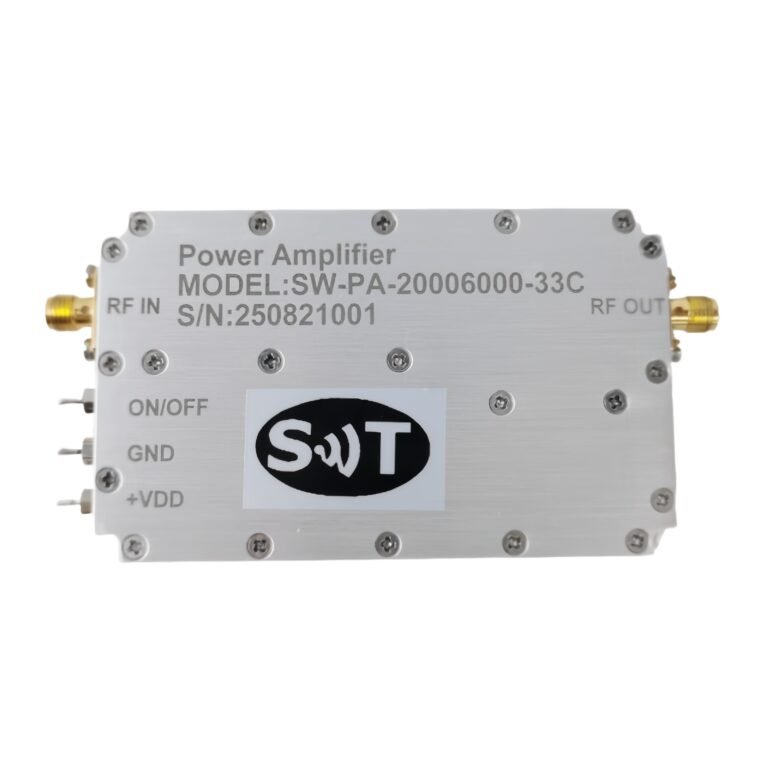

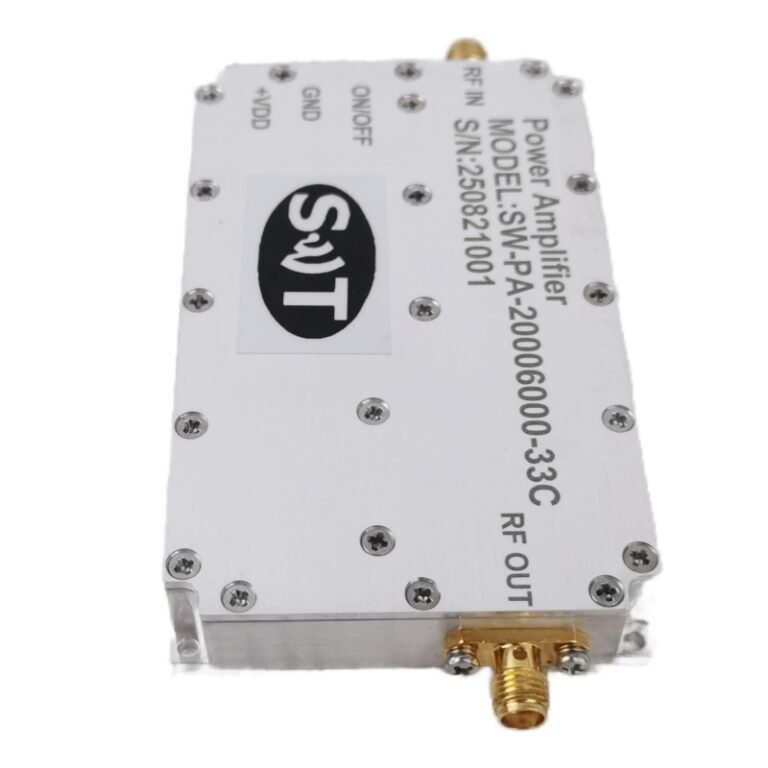

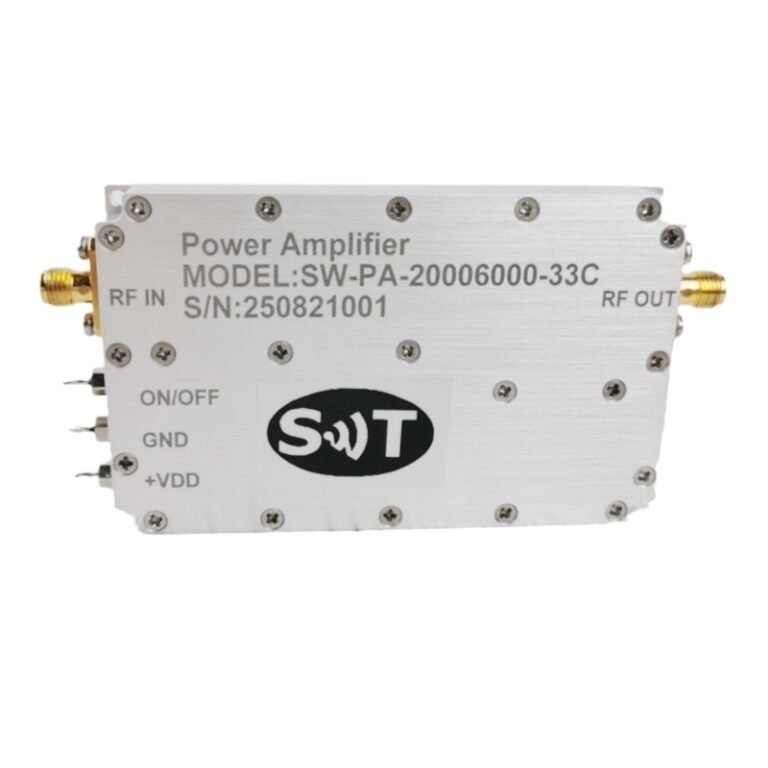

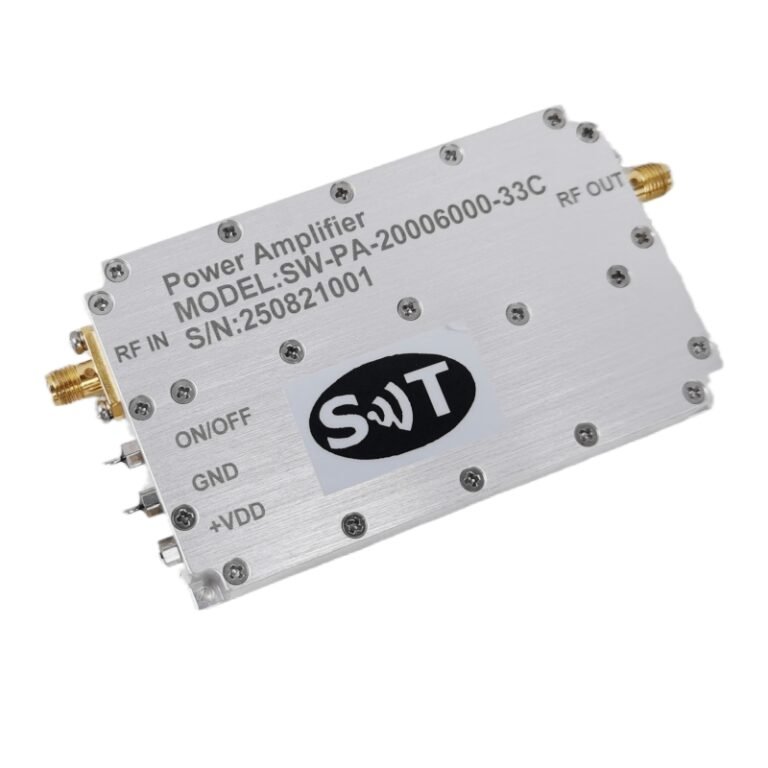

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28V DC +25℃, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2000 | 6000 | MHz | |
RF INPUT | 0 | dBm | ||
P-1dB Power Output | 33 | dBm | ||
Power Gain | 31 | 33 | dB | |
Power Gain Flatness | ±1.5 | dB | ||
Input VSWR | 2.0 | |||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -10 | dBc | ||
Operating Voltage | 24 | 28 | V DC | |
In-Out impedance | 50 | Ω | ||
Currents | 0.8 | A | ||
Switching time | 300 | ns | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

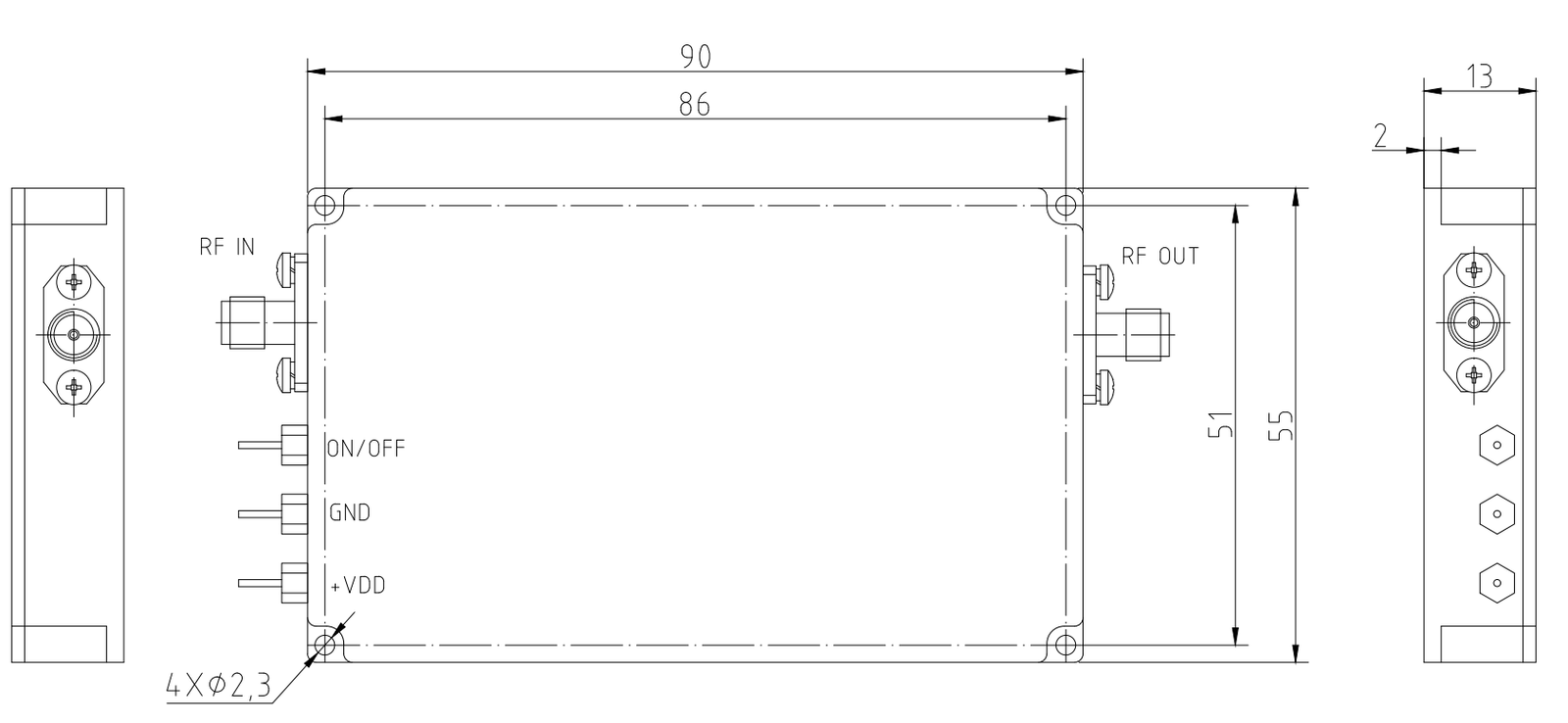

Dimensions (L x W x H) | 90 x 55 x 13 | mm |
RF Connectors (Input / Output) | SMA- KFD/ SMA – KFD | — |
DC/Control Connector | Feed thru capacitor | — |
Cooling | Consider heat dissipation with the system (Not Supplied) | –– |
Mounting | φ2.3-4 Thru Hole | — |
Weight | ≤0.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +60 | °C |
Humidity Range | 0-95 | % | |
