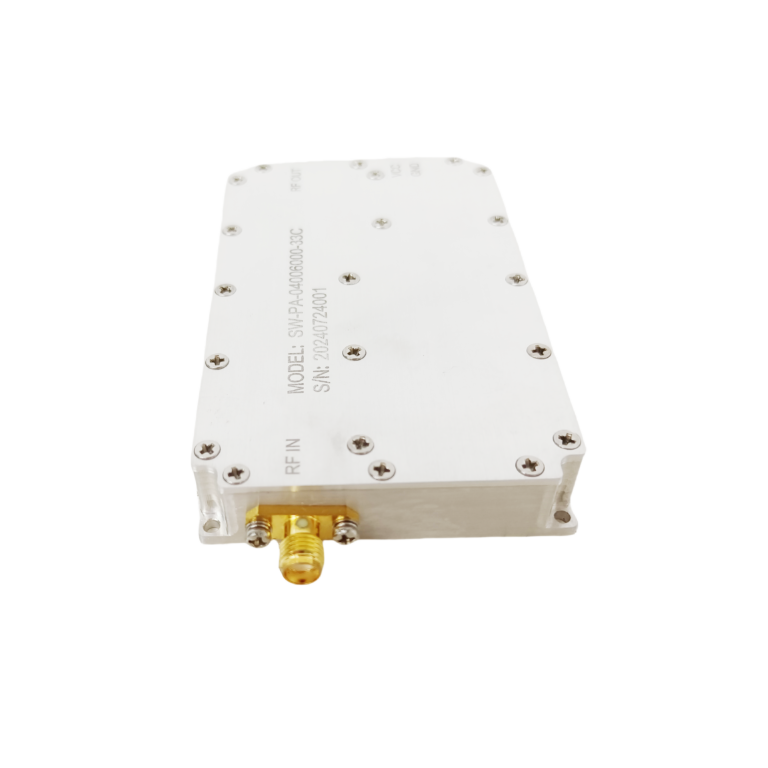

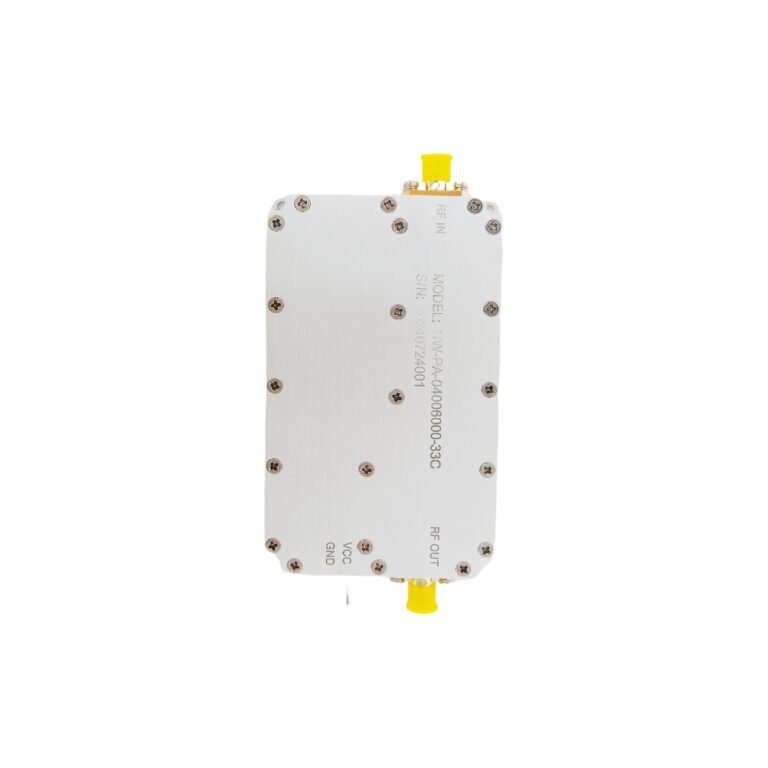

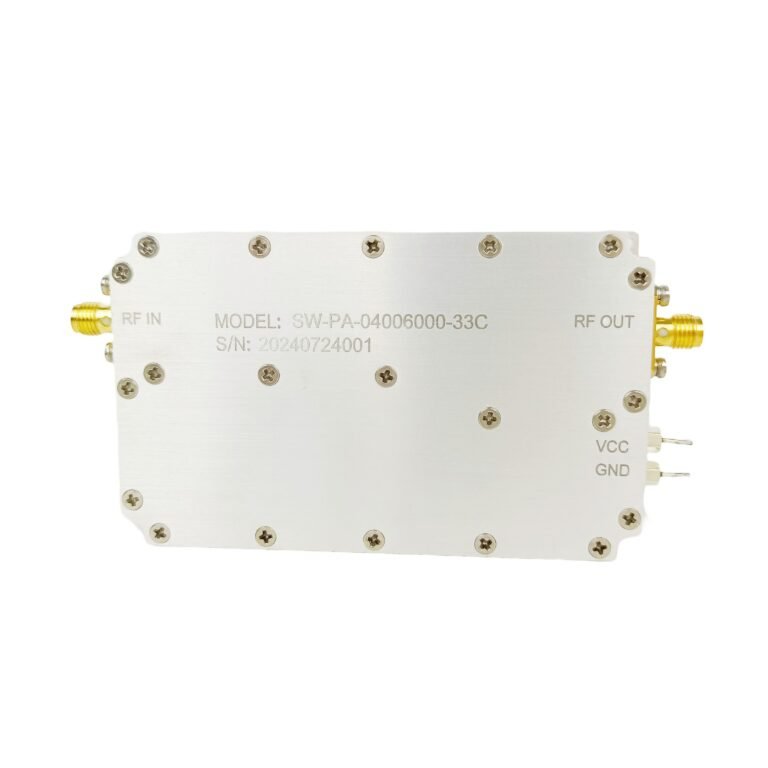

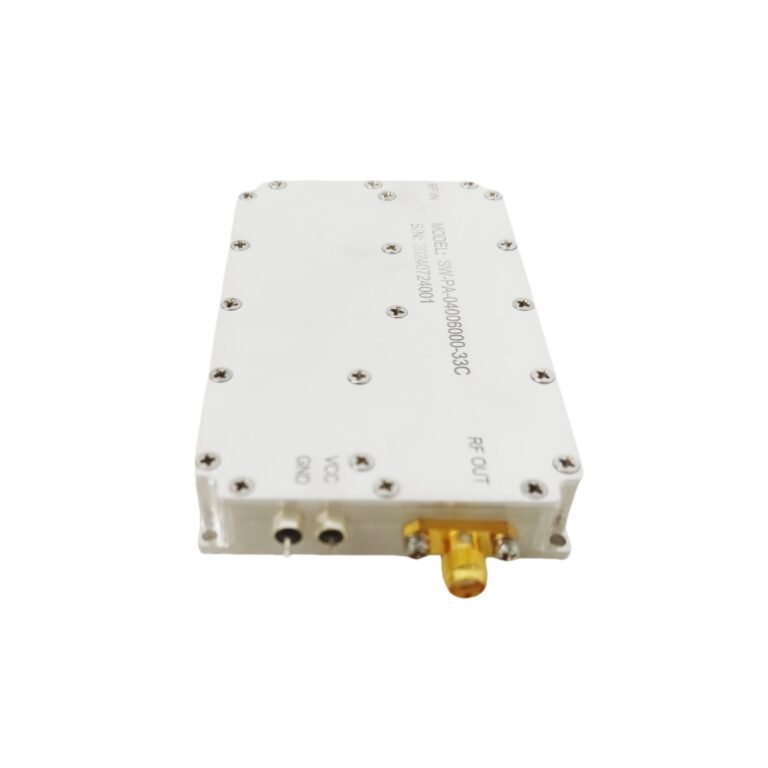

High Linearity and High Gain Ultra-Broadband Power Amplifier for Wireless Communication, Radar Syatem
The 400-6000MHz 2W RF power amplifier is a high-performance, medium-power device suitable for various RF and wireless communication applications. Key features include:
Wide Frequency Range: Covers 400MHz to 6000MHz, suitable for diverse communication and testing scenarios.
2W Output Power: Provides 33dBm output, ideal for medium-range signal transmission.
High Gain: Delivers 30dB gain, effectively amplifying signals.
Compact Design: Small form factor for easy integration.
Applications:
Used in wireless communication, testing equipment, radar, and electronic warfare to enhance signal transmission and system performance.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 400 | 6000 | MHz | |
| Oeration mode | Seep frequency source | |||
| P-sat Power Output | 46.5 | 47 | dBm | |
| Power Gain Flatness | ±2.5 | dB | ||
| Input VSWR | 2 | |||
| Operating Voltage | 28 | VDC | ||
| In-Out impedance | 50 | |||
| Current | 7 | 8 | A | |
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 200x150x30 | mm |
| RF Connectors (Input / Output) | N- KFD | — |
| DC / Control Connector | D SUB 7W2 | — |
| Cooling | Consider heat dissipation with the system | — |
| Mounting | 3-6 Thru Hole | — |
| Weight | ≤1.5 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -40 | +60 | °C |
| Humidity Range | 0-100 | % | |
| PA Baseplate Shutoff Temperature | + 90 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | D SUB 7W2 | ||
| TRIAD CABLE PART NUMBER: | — | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| A1 | +VDC | +28V | |
| A2 | GND | Ground | |
| 1-2 | NC | NC | |
| 3 | RS485A | Gain Control and Seep speed Control | |
| 4 | RS485B | ||
| 5 | GND | ||
Outline Dimensional Drawing
