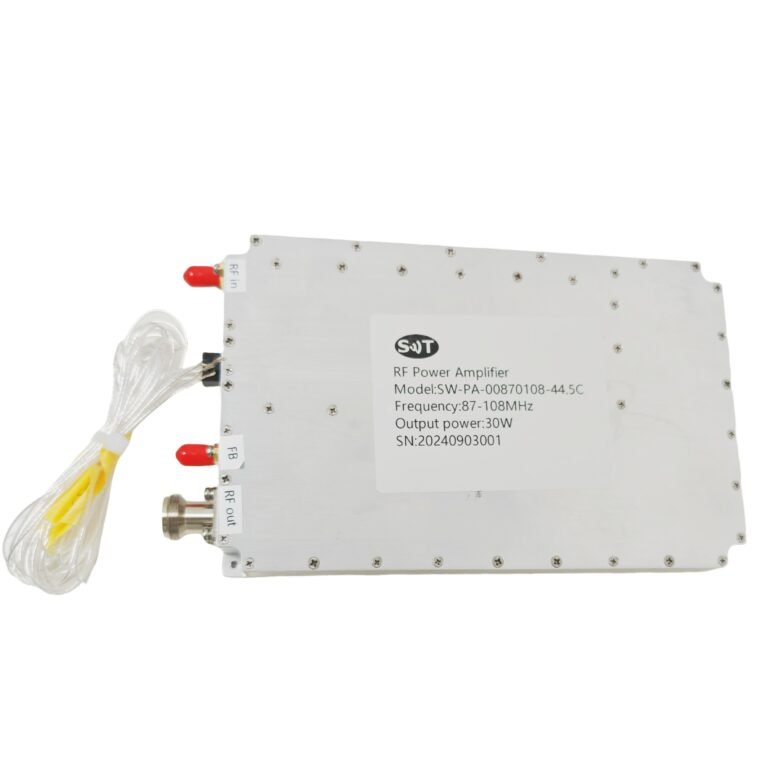

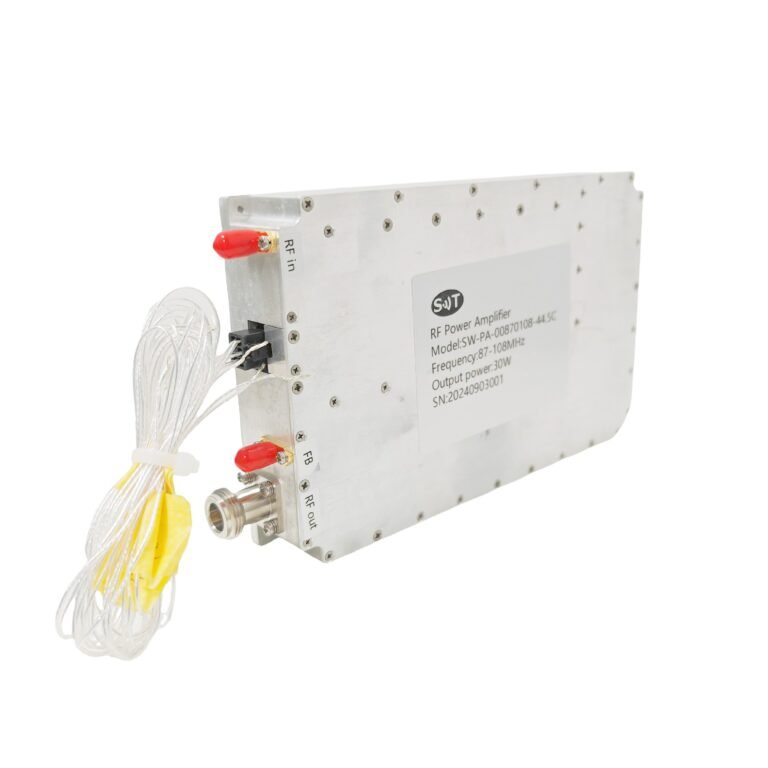

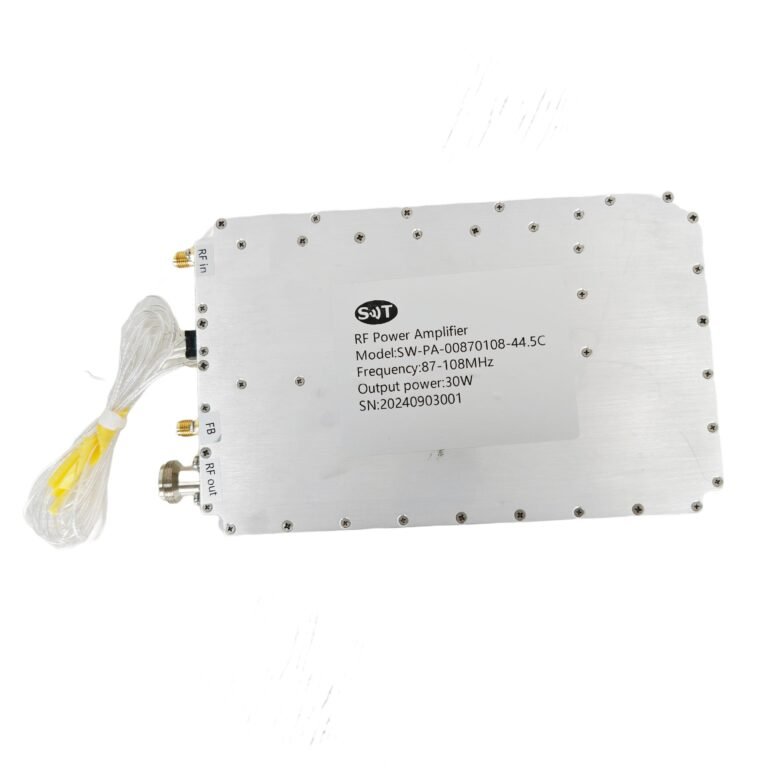

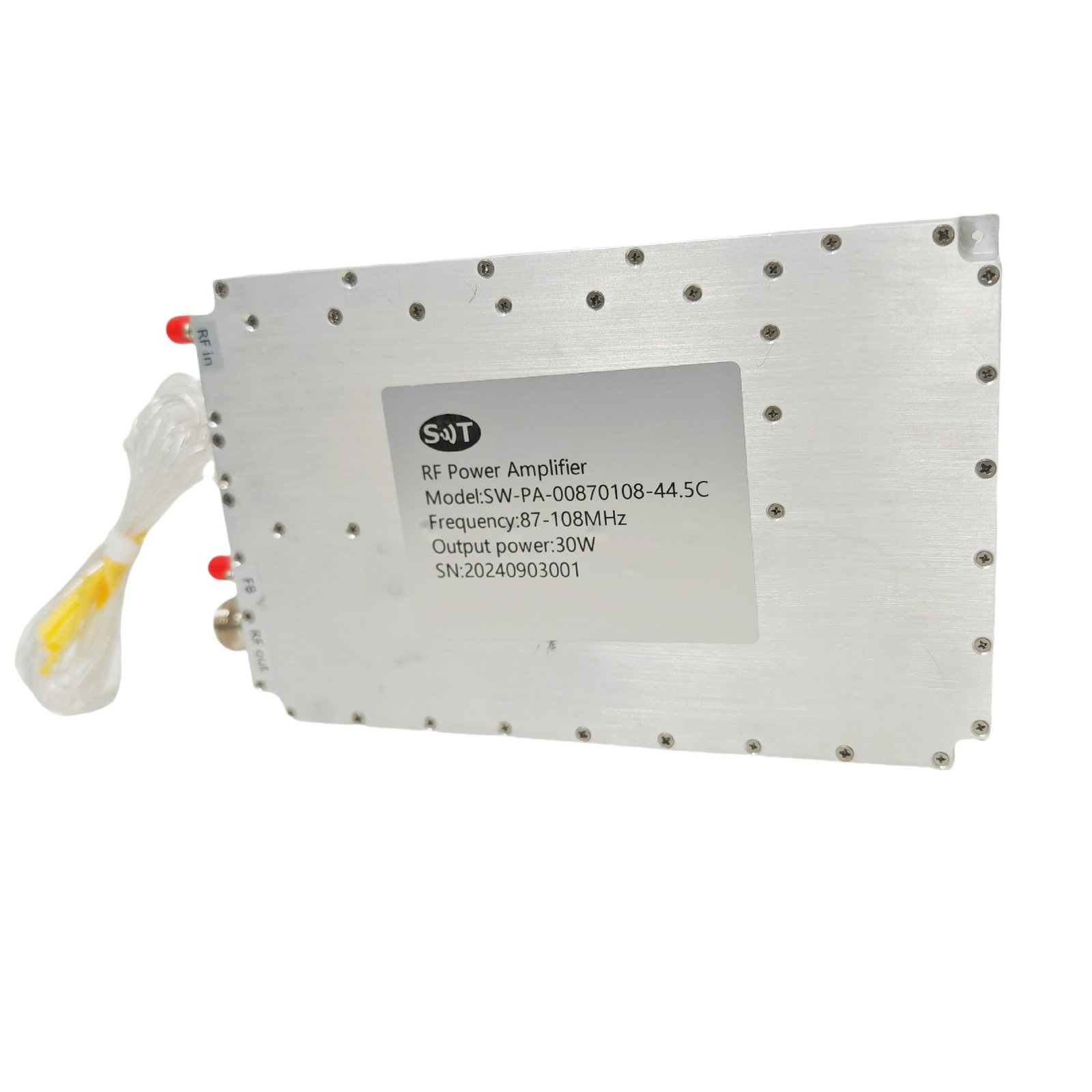

High Gain & Low Distortion Amplifier Module 87-108MHz 30W RF power amplifier for FM broadcasting, radio communication
The 87-108MHz 30W RF power amplifier is designed for FM broadcasting, radio communication, and signal transmission, providing high gain and low noise for stable signal amplification, ensuring high-quality broadcast coverage.
Key Features:
Operating Frequency: 87-108MHz, specifically designed for FM broadcasting and radio applications.
High Power Output: 30W (Psat 45dBm), ensuring stable long-distance signal transmission.
High Gain & Low Distortion: Offers high-linearity amplification, reducing distortion and enhancing audio and signal quality.
Efficient Cooling System: Optimized thermal design supports long-term continuous operation, improving device stability.
Durable & Reliable: Suitable for FM transmitters, radio systems, and laboratory testing environments.
This RF power amplifier delivers high performance and reliability, making it an ideal solution for FM broadcasting, long-range wireless communication, and professional radio applications, ensuring efficient and stable signal transmission.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| Amplifier Electrical Specifications Requirements | ||
| Indicator project | Indicator requirements | note |
| down train (i.e. away from the capital) | ||
| Operating frequency (MHZ) | 87~108 | |
| Maximum output power | 44.5± 1.5dBm | MIN |
| Maximum Gain | 45±1dB | |
| Gain adjustment range | 30dB | |
| Gain Adjustment Step | 1dB | |
| Output power stability (-20ºC~+ 50 )ºC | ±1.5dB | |
| Maximum lossless input | +10dBm | |
| bandwidth | ≤2dB | |
| VSWR (input) | ≤1.5 | |
| VSWR (output) | ≤2.0 | |
| Third-order symphony (IP3) | ≤-40dBc | |
| harmonic suppression | ≥70dBc | |
| Operating current | ≤5A | |
| Standing wave detection | Support (query via 485 interface) | |
| Temperature Detection | Support (query via 485 interface) | |
| Gain adjustment | Support (setup via 485 interface) | |
| working environment | -20ºC~+ 50ºC | |
| Power & Communication Interface | HX30002-6A | |
| RF Signal Input Connector | SMA-KFD | |
| RF signal output connector | N-K | |
| FB signal output connector | SMA-KFD | FB port coupling 30 |
| Module size (mm) | 175*110*30 | |
| Module fixing aperture | M3 | |
| Module Monitoring Protocol | RS485 | |
| Module Monitoring Interface | HX30002-6A | |

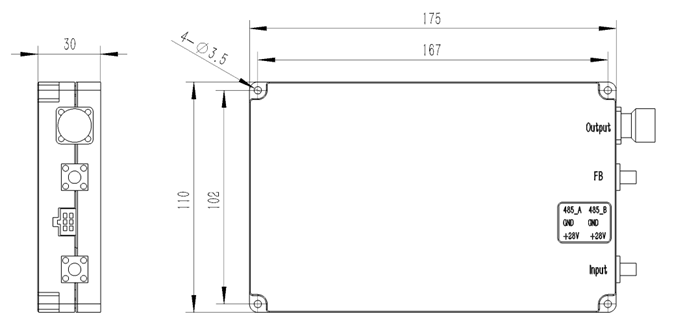

Outline Dimensional Drawing
