1/pcs
Standard Packing
5-8 work days
L/C, D/A, D/P, T/T, Western Union, MoneyGram
1.0 | Electrical parameters: | |
1.1 | frequency range | 17.6-26.5 GHz |
1.2 | Standing wave (Max. VSWR) | ≤1.5 |
1.3 | Antenna Gain (TYP) | 10 dB |
1.4 | Polarization mode | linear polarization |
2.0 | Mechanical parameters: | |
2.1 | Outer contour dimensions (length x width x height) | About 12*16*45mm |
2.2 | Paint the exterior surface | Sea grey |
2.3 | basic materials | aluminium product |
2.4 | weight | make an appointment: |
3.0 | Product profile | |

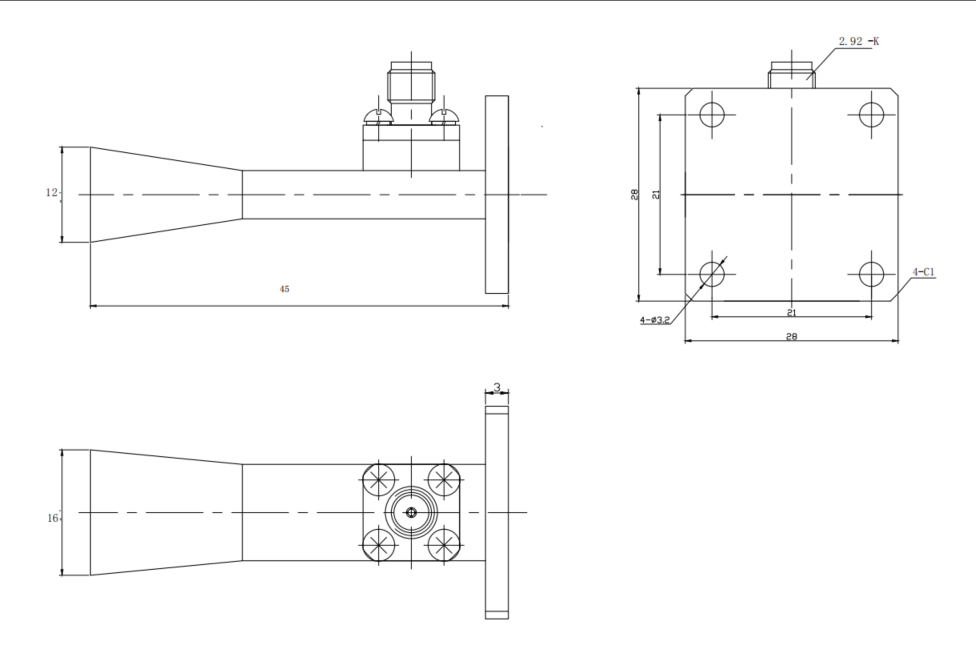

Product Specification Diagram
Focused on the development and manufacturing of RF and microwave products.
Product capabilities cover power amplifiers, active and passive components, antennas and subsystems.
Standard and customized solutions are available for different frequency, power, gain and interface requirements.
Supported by an experienced technical team, production facilities and continued product development.
