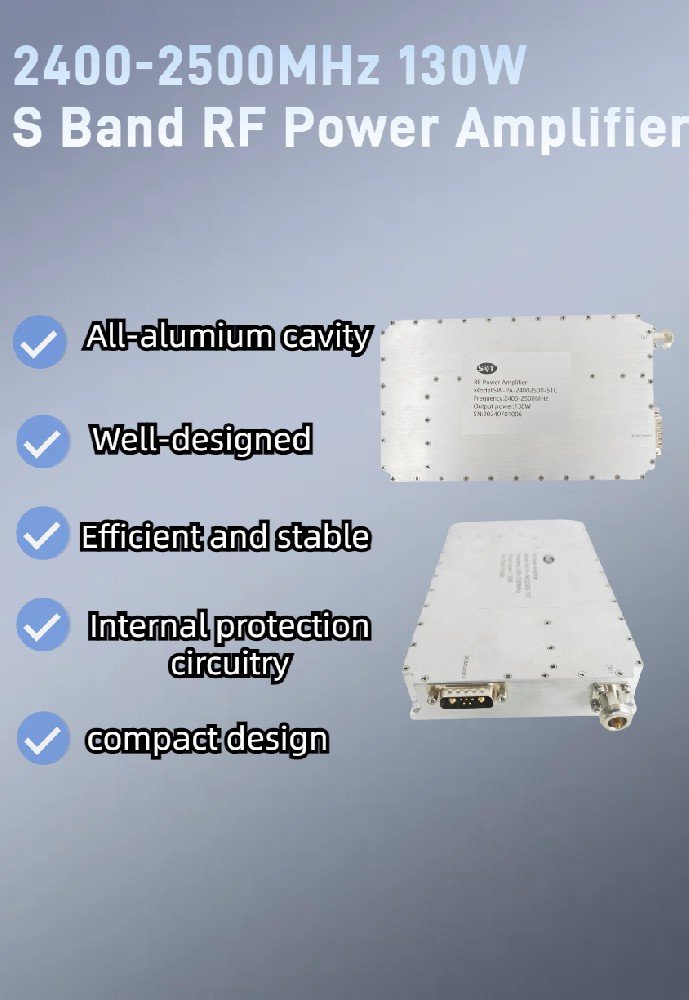

Durable and Reliable All-Alumium Cavity 130W High Power Amplifier S Band Solid State Amplifier for Wireless Communication
The 2400-2500MHz RF power amplifier is designed for S-band applications, covering the frequency range of 2400-2500MHz with an output power of up to 130W. It is ideal for wireless communication, industrial heating, microwave imaging, and other S-band related applications. This amplifier features high linearity and efficiency, ensuring high-performance output under various complex environments while maintaining signal quality and stability.
Key Features:
Wide Frequency Coverage: Supports the 2400-2500MHz frequency range, meeting the needs of S-band communication and related applications.
High Power Output: Delivers 130W of output power, suitable for applications requiring strong power transmission.
High Efficiency and Linearity: Maintains low distortion and high performance during amplification, ensuring signal integrity.
Durable and Reliable: Designed to withstand harsh operating conditions, ensuring long-term stability and reliability.
This amplifier is an essential component in high-performance communication and industrial systems, offering excellent signal amplification, especially for applications that require high-power transmission.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | |||||
| PARAMETER | MIN | TYP. | MAX | UNIT | |
| Operating Frequency | 2400 | 2500 | MHz | ||
| P-Sat Power Output | 51 | dBm | |||
| Power Gain Flatness | ±1 | dB | |||
| Operating Voltage | 20 | 24 | 30 | VDC | |
| Gain Adjust Range | 31 | ||||
| Gain Adjust Step | 1 | ||||
| Gain Adjustment Linearity | ±1 | ||||
| Power current | 17 | A | |||
| Spurious Signals | -60 | dBc | |||
| Harmonic Signals | -20 | dBc | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (Lx W x H) | 200×150×30 | mm |

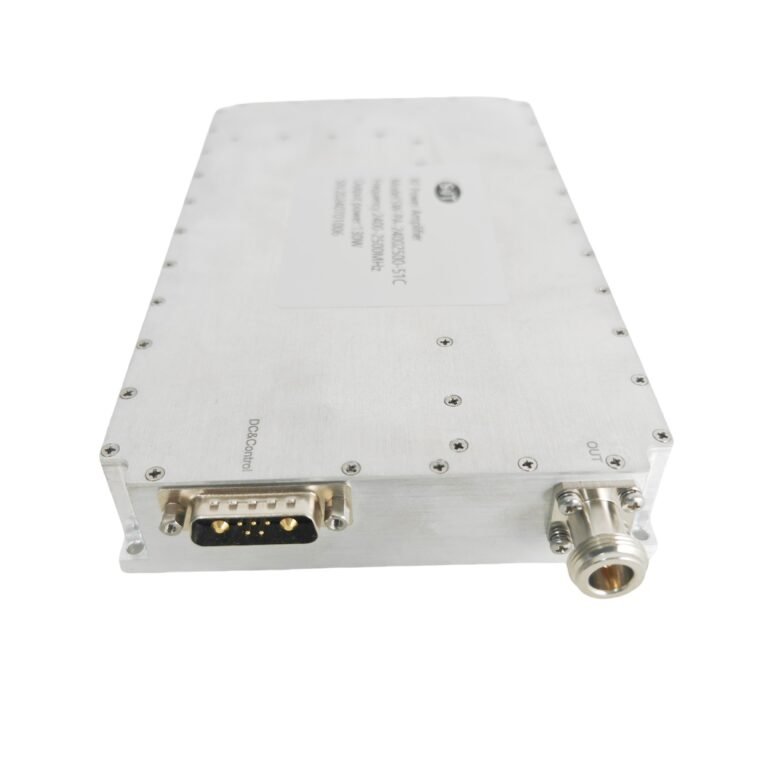

| RF Connectors (Input / Output) | N-female | — |
| DC / Control Connector | D-SUB 7W2 | — |
| Cooling | Baseplate Conduction – Optional Heatsink Available | — |
| Mounting | 3-8 Thru Hole | — |
| Weight | ≤3 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -40 | +60 | °C |
| Storage Temperature | -55 | +85 | |
| Humidity Range | 0-100 | % | |
| Max RF Input | +5 | dBm | |
| PA Baseplate Shutoff Temperature | + 85 | °C | |
| INPUT/OUTPUT PINS | ||
| AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2 | |
| TRIAD CABLE PART NUMBER: | — | |
| PIN NUMBER | LABEL | DESCRIPTION |
| 1 | +VDC | +24V |
| 2 | GND | Ground |
| 3 | NC | NC |
| 4 | GND | Ground |
| 5 | 485A | |
| 6 | 485B | |
| 7 | GND | Ground |
