DC-8GHz Brass Nickel Plated 10W low Insertion Loss SPDT Coaxial Switches
Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.

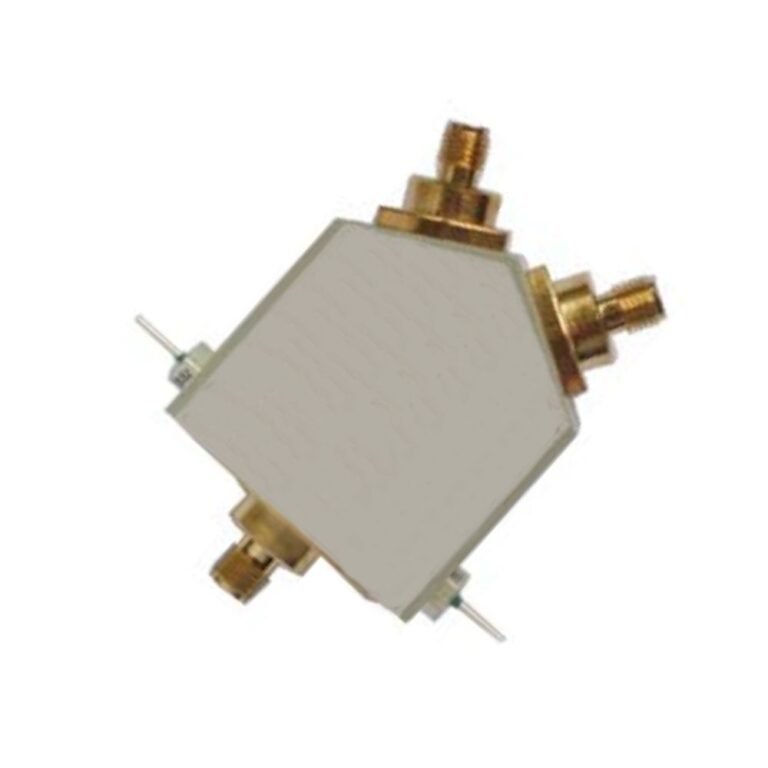

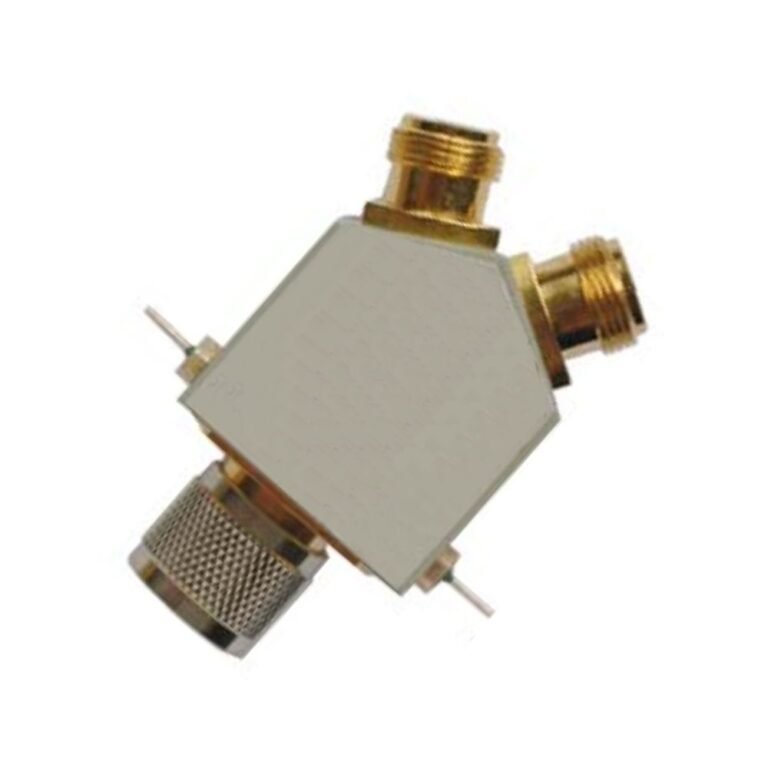

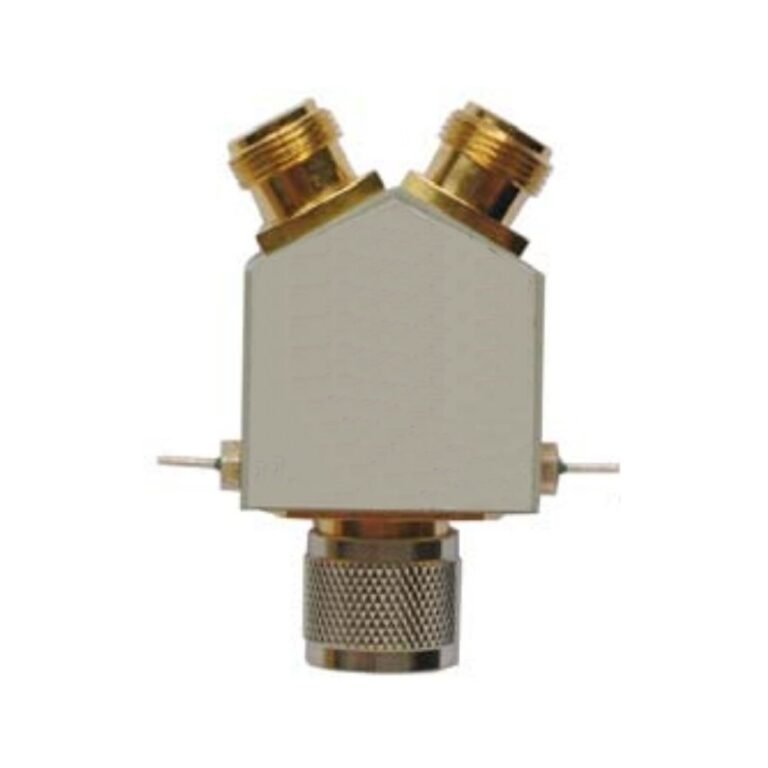

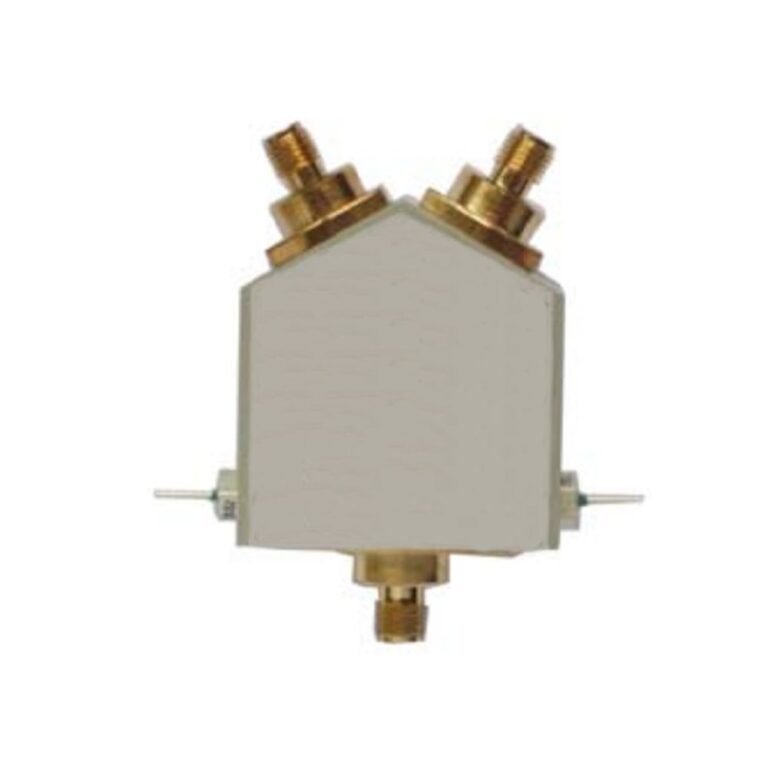

SWT101,SWT1011 SPDT coaxial switches' average power 10W, frequency range DC-8GHz and the features include low Insertion Loss,low VSWR and excellent Wide-band performance.

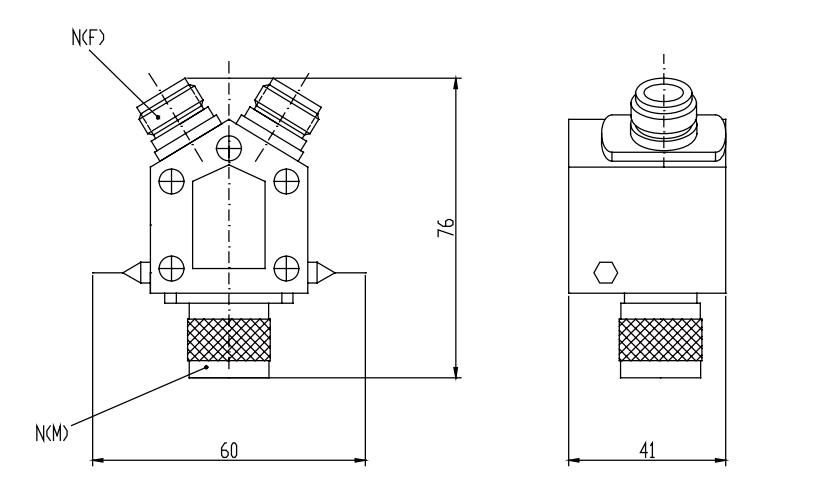

MECHANICAL SPECIFICATIONS
| Connectors | Male Pin | Female Pin | Housing | Temp Range | Dimensions | Weight |
| Brass Nickel Plated | Brass Gold Plated | Beryllium Copper Gold Plated | Aluminum | Operating: -10°C~+50°C Non-operating: -40°C~+70°C | 60×41×76mm | 21g |
RoHS Complient: Yes
ELECTRICAL SPECIFICATIONS
| Model Number | Frequency Range (GHz) | Max VSWR | Insertion Loss (dB) | Isolation (dB) |
| SWT101 | DC-8 | 1.5 | ≤1.0 | ≥40 |
| SWT1011 |
| NOMINAL IMPEDANCE | 50Ω |
| AVERAGE POWER | 10W |
| OPERATING VOLTAGE | +12V, +15V, +24V |
| COIL CURRENT | ≤100mA |
| SWITCHING TIME | 10ms min |
| CONNECTOR TYPE | N, SMA |
Notes:
1. Dimensions Tolerance ±2%
