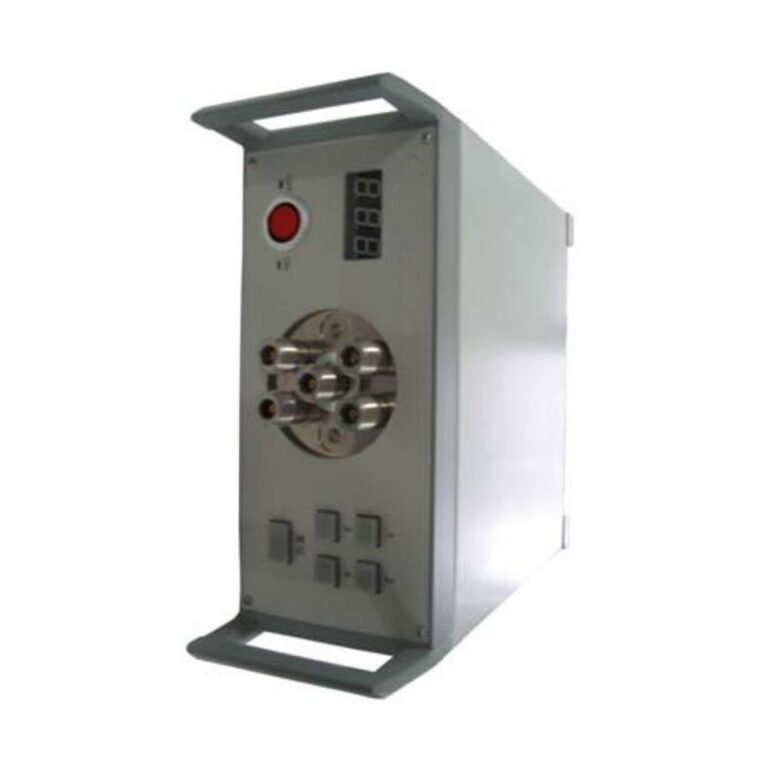

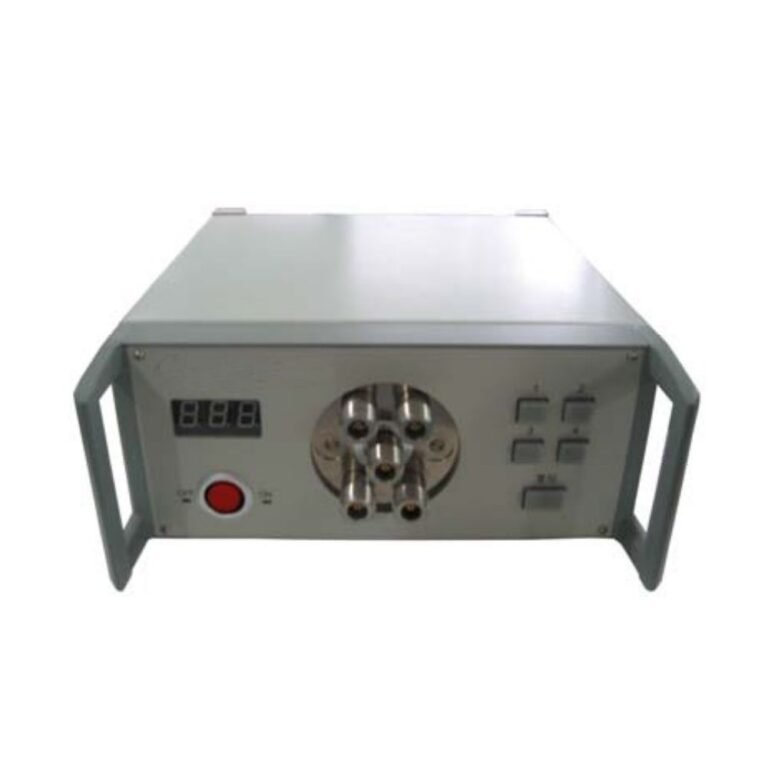

DC-8GHz 100W power N(F) connector SWT652-1*4 Switch Control Box for Microwave,Switch and Control
SWT615-1*4 switch control boxes' frequency range is DC~8GHz, feature is high precision,easy operation, high frequency, capability steady, expansibility better and etc. It has be applied widely in microwave, switch and control.
MECHANICAL SPECIFICATIONS
| Connectors | Brass Nickel Plated |
| Female Pin | Beryllium Copper Gold Plated |
| Housing | Aluminum, Spray-Paint |
| Temp Range | -40° C ~ +85° C |

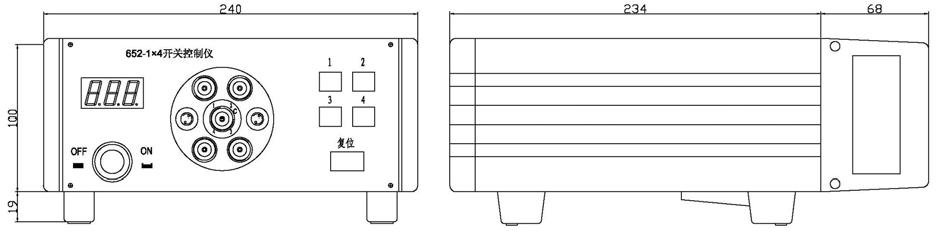

| Dimensions | 302×240×119mm |
| Weight | 2.4Kg |
RoHS Complient: Yes
ELECTRICAL SPECIFICATIONS
| Model Number | Frequency Range(GHz) | VSWR | Insertion Loss(dB) | Isolation (dB) | Switch Times(ms) | Operating Voltage(V) | Remote Control |
| SWT652-1×4 | DC-2 | 1.15 | 0.2 | >80 | <20 | AC220 | RS232 |
| 2-4 | 1.25 | 0.3 | >75 | ||||
| 4-8 | 1.40 | 0.4 | >65 | ||||
| IMPEDANCE | 50Ω |
| MEACHICAL LIFES | 106 times |
| AVERAGE POWER | 100W average to 25°C ambient temperature, derated linearly to 50W @ 85°C |
| CONNECTOR TYPE | N(F) |
Notes:
1. Dimensions Tolerance ±2%. Custom designs available.
2. This switch is cold switch
