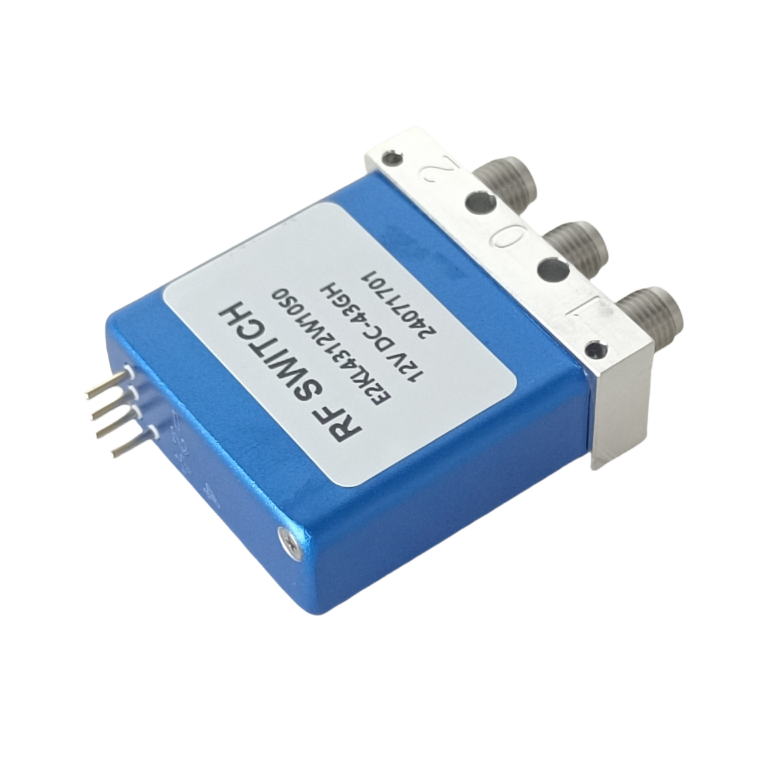

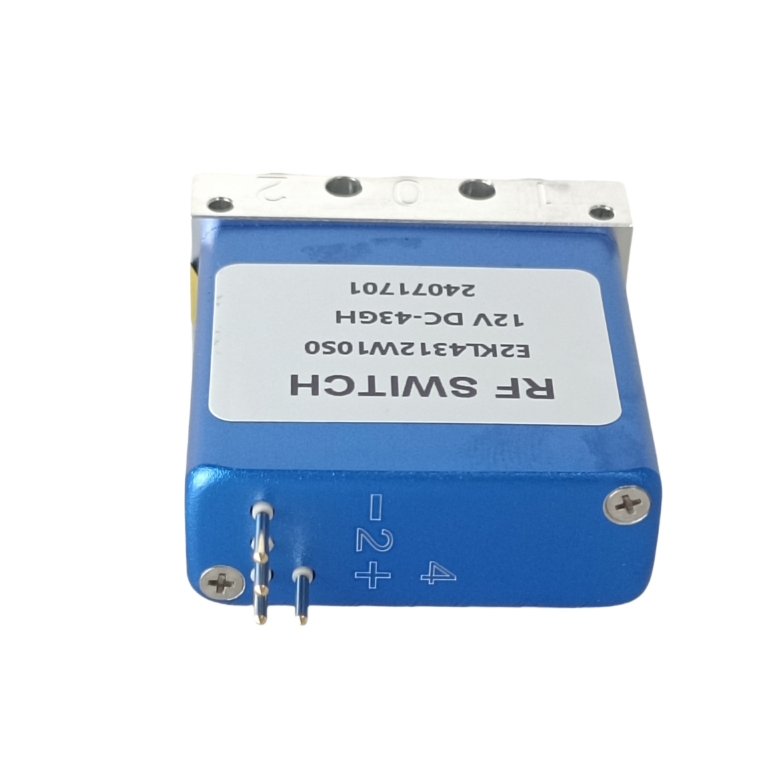

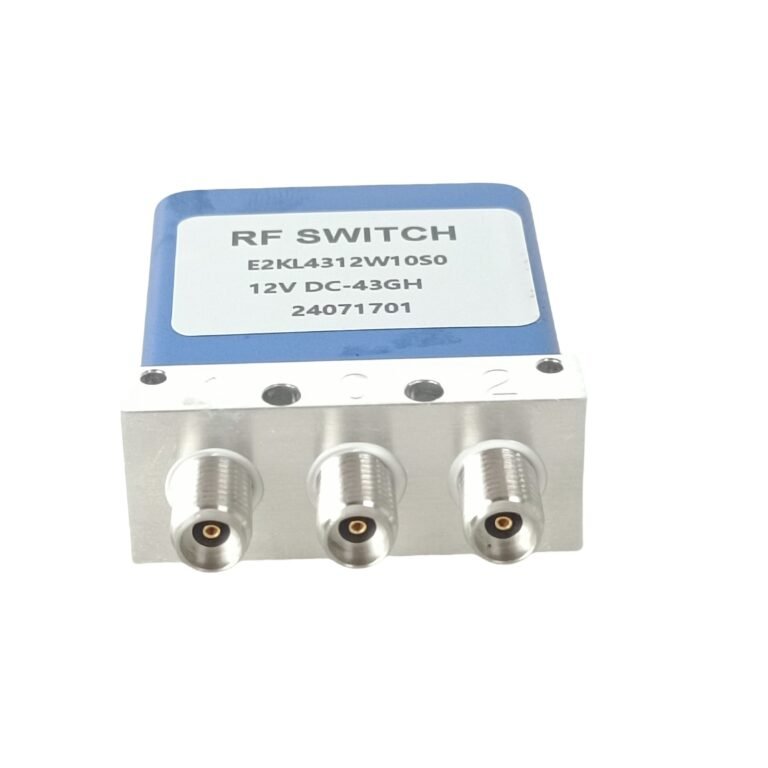

DC-43.5GHz Low Loss Coaxial Switch for Mechanical Microwave Switching in Communications, Radar, Test and Electronic Warfare Systems
RF Characteristics
| Frequency (GHz) | Ins.loss (dB) | Isolation (dB) | VSWR | RF Power CW (W) |
| DC-6 | 0.2 | 70 | 1.2 | 40 |
| 6-12 | 0.3 | 70 | 1.3 | 30 |
| 12-18 | 0.4 | 60 | 1.4 | 25 |
| 18-26.5 | 0.6 | 55 | 1.6 | 12 |
| 26.5-32 | 0.7 | 50 | 1.7 | 8 |
| 32-40 | 0.8 | 50 | 1.8 | 5 |
| 40-43.5 | 0.8 | 50 | 1.8 | 4 |
Operating Voltage/Coil Current
| Operating Voltage(V) | 12 | 24 | 28 | |
| Coil Current (mA) | Failsafe | 195 | 100 | 95 |
| Latching | 230 | 140 | 120 | |
*It can be selected according to user requirements
| TTL | TTL Low(V) | TTL High | |
| 0-0.3 | 3~5V | 20mA | |
| Indicators | Withstand Voltage V (max) | Currentcapacity mA(max) | Resistance Ω (max) |
| 50 | 100 | 15 |
* Connect VDC &GND before the function operates
