DC-1GHz 50Ω Impedance 10W Low Insertion Loss Spdt Coaxial Switch
Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.

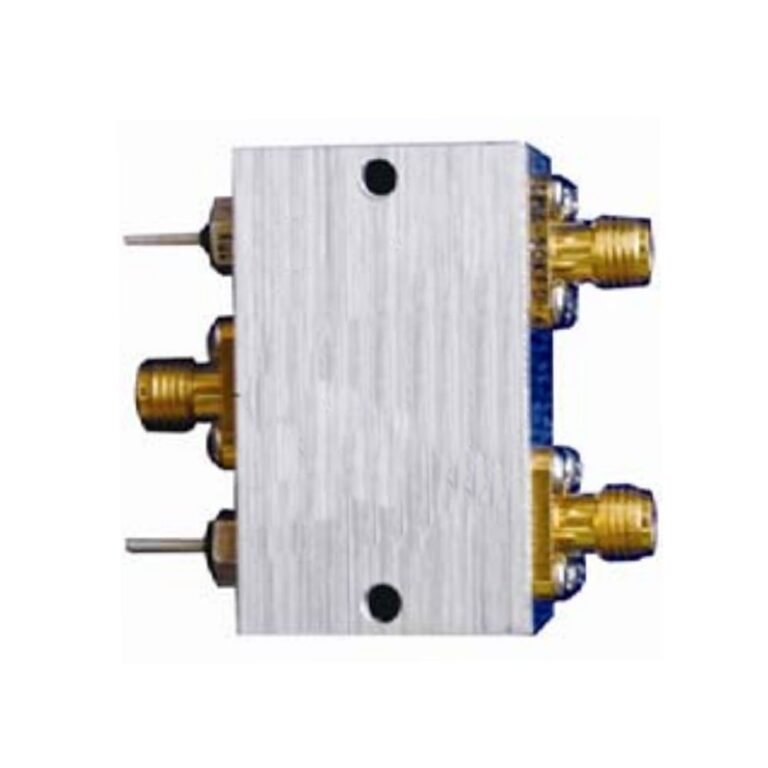

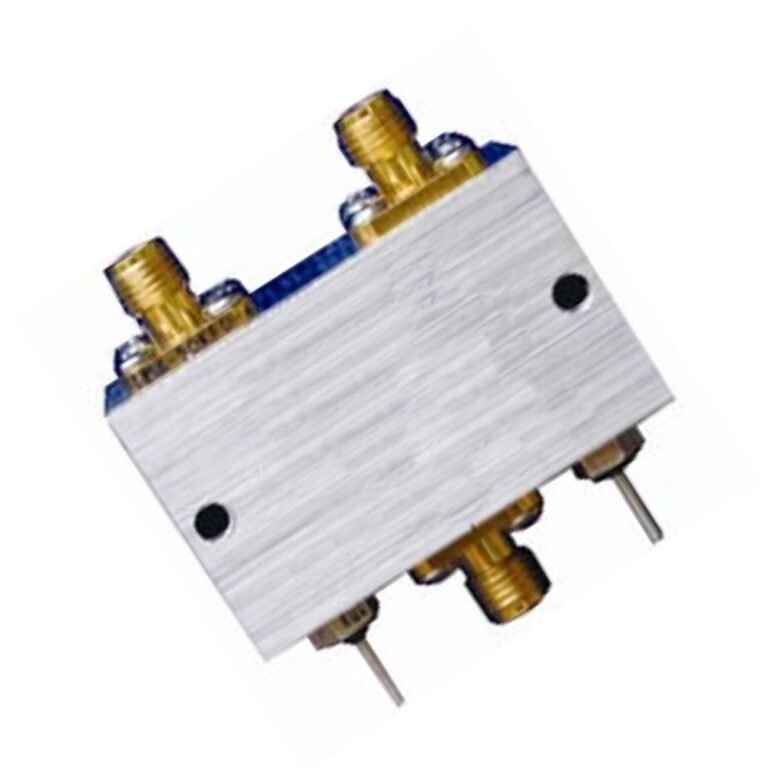

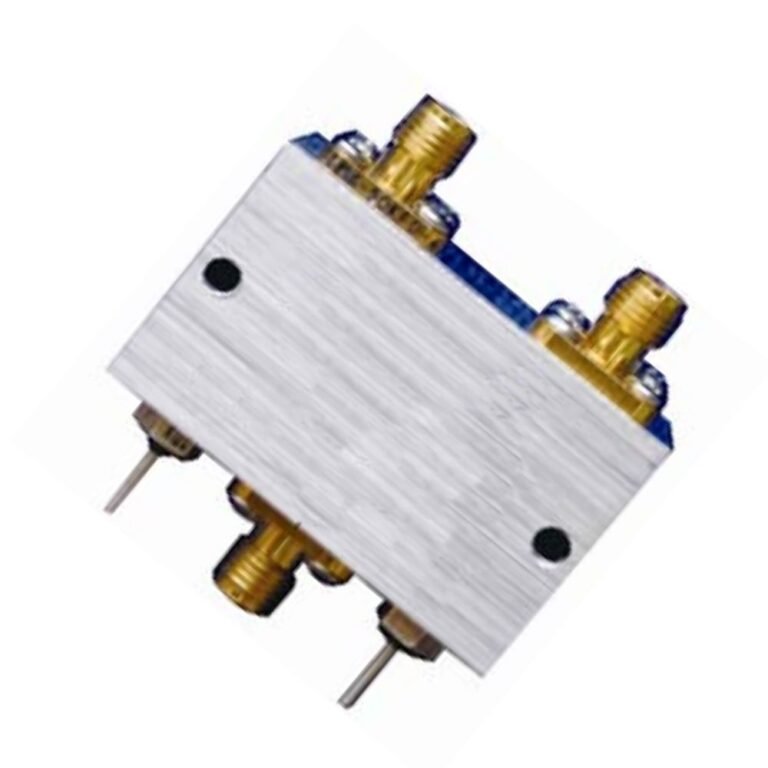

SWT-TKC-2 SPDT coaxial switches' average power 10W, frequency range DC-1GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.

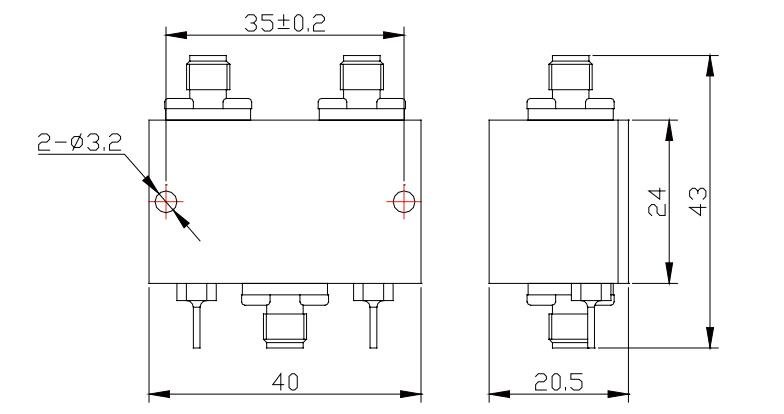

MECHANICAL SPECIFICATIONS
| Connectors | Female Pin | Housing | Temp Range | Dimensions | Weight |
| Brass Gold Plated | Beryllium Copper Gold Plated | Aluminum, Anodic Oxidation | Operating: -10°C~+50°C Non-operating: -40°C~+70°C | 40×43×20.5mm | 60g |
RoHS Complient: Yes
ELECTRICAL SPECIFICATIONS
| Model Number | Frequency Range (GHz) | Max VSWR | Insertion Loss (dB) | Isolation (dB) |
| SWT-TKC-2 | DC-1 | 1.3 | ≤0.6 | ≥50 |
| NOMINAL IMPEDANCE | 50Ω |
| AVERAGE POWER | 10W |
| OPERATING VOLTAGE | +12V |
| COIL CURRENT | ≤100mA |
| SWITCHING TIME | 10ms min |
| CONNECTOR TYPE | SMA(F) |
Notes:
1. Dimensions Tolerance ±2%
