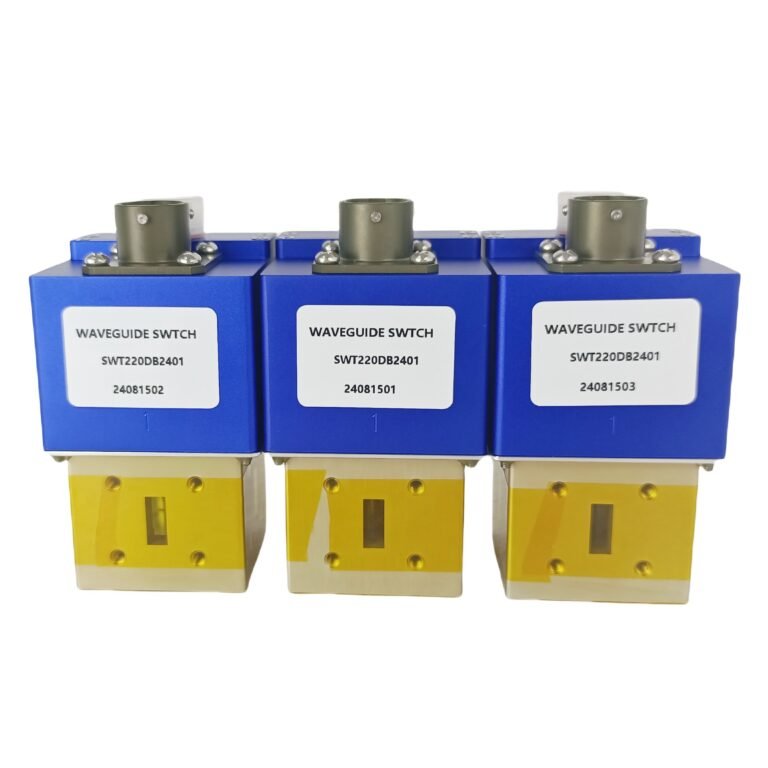

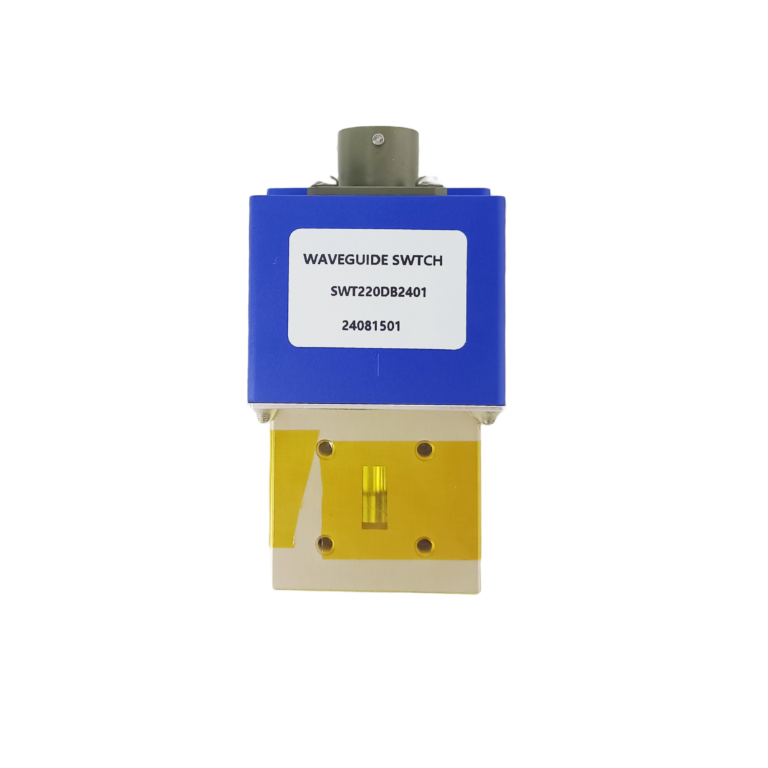

Customized 18.0 GHz – 26.5 GHz RF Waveguide Switch for microwave systems, communication equipment

Minimum Order Quantity

1/pcs

Packaging Details

Standard Packing

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Get Inquiry
  • In stock, lead time: 4–6 weeks
  • CE & RoHS certified with built-in protection circuits
  • Global shipping available; OEM & ODM customization supported
Description
Why Choose Us
Recommended Reading
Certificates
Cases
Survey

Customized 18.0 GHz – 26.5 GHz RF Waveguide Switch for microwave systems, communication equipment



Key Features

  • Frequency Range: 18.0 GHz – 26.5 GHz

  • VSWR (Voltage Standing Wave Ratio): ≤1.10

  • Insertion Loss: <0.10 dB

  • Isolation: >60 dB

  • Switching Time: ≤50 ms

Electrical Specifications

  • Voltage: 24 VDC

  • Current: ≤625 mA @ 24 VDC (25°C)

  • Switching Duration: >50 ms

Environmental and Durability

  • Working Temperature: -40°C to +70°C

  • Operational Life: 100,000 cycles

Control Options

  • Modes: Latching, Manual, and Electric control

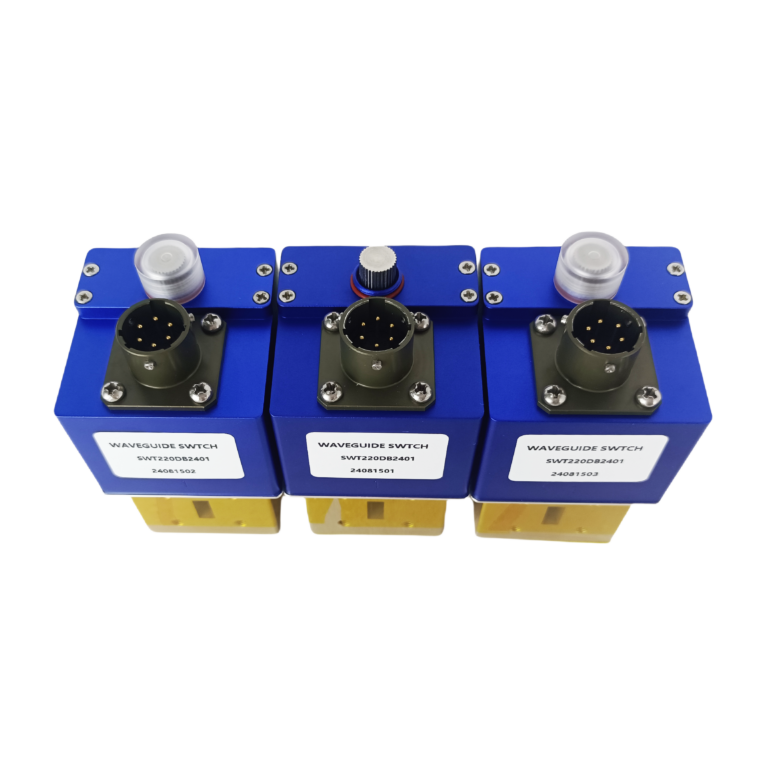

  • Connector: MS3112E10-6P



Technical Parameters

Advantages

Why Choose Us

Established in 2008

Focused on the development and manufacturing of RF and microwave products.

RF & Microwave Expertise

Product capabilities cover power amplifiers, active and passive components, antennas and subsystems.

Custom Engineering Support

Standard and customized solutions are available for different frequency, power, gain and interface requirements.

R&D and Production Capability

Supported by an experienced technical team, production facilities and continued product development.
