Anti Jamming 1420-1530MHz 10W Amplifier Optimises UAV Datalink Video Transmission Performance

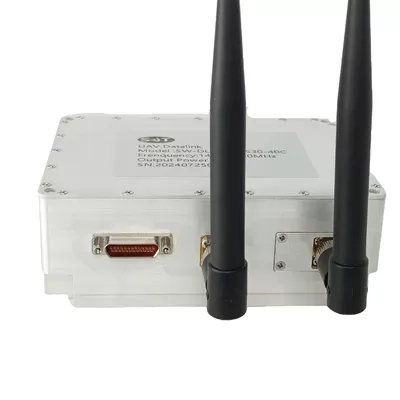

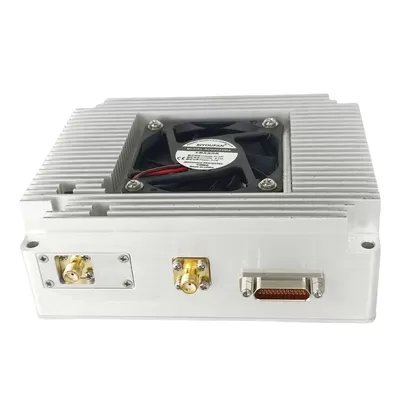

The SW-DL-14201530-40C is a 10W data link power amplifier designed for military and commercial applications. It supports a frequency range of 1420 to 1530 MHz and offers modulation methods such as CoFDM (QPSK, QAM16, QAM64 TDD). This amplifier provides a maximum wireless transmission rate of 25 Mbps and supports point-to-point, point-to-multipoint, and star network configurations. It measures 128 x 100 x 46 mm, uses forced air cooling, and includes over-temperature protection.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Working frequency band | 1420 | 1530 | MHz | |
| Channel bandwidth | 1.4/3/5/10/20 | MHz | ||
| Modulation method | CoFDM (QPSK/QAM16/QAM64) TDD | — | ||
| Output Power | 40 | dBm | ||
| Platform speed | 700 km/h | |||
| Range | Upto 200 Km (LoS) depends upon receive station antenna gain. Platform GPS coordinates required for antenna alignment and pointing | |||
| Networking mode | point-to-point, point-to-multi-point star network | — | ||
| Data interface | 1 network ports + 1 serial port | — | ||
| Wireless transmission rate | maximum 25Mbps, shared by all nodes in two-way transmission | optional | ||
| Antenna interface | 2 SMA connectors | — | ||
| Operating Voltage | 24 | V DC | ||
| Currents | 1.4 | A | ||
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Working frequency band | 1420 | 1530 | MHz | |
| Channel bandwidth | 1.4/3/5/10/20 | MHz | ||
| Modulation method | CoFDM (QPSK/QAM16/QAM64) TDD | — | ||
| Output Power | 40 | dBm | ||
| Platform speed | 700 km/h | |||
| Range | Upto 200 Km (LoS) depends upon receive station antenna gain. Platform GPS coordinates required for antenna alignment and pointing | |||
| Networking mode | point-to-point, point-to-multi-point star network | — | ||
| Data interface | 1 network ports + 1 serial port | — | ||
| Wireless transmission rate | maximum 25Mbps, shared by all nodes in two-way transmission | optional | ||
| Antenna interface | 2 SMA connectors | — | ||
| Operating Voltage | 24 | V DC | ||
| Currents | 1.4 | A | ||
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -40 | +70 | °C |
| Storage Temp. | -40 | +80 | °C |
| Amplifier Safeguard Temp. | +90 | °C | |
| Protections | With over temperature protection | ||
| INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | — | ||
| TRIAD CABLE PART NUMBER: | — | ||
| NUMBER | interface type | DESCRIPTION | |
| X1 | SMA-FK | RF IN | |
| X2 | SMA-FK | RF OUT | |
| X3 | Power Supply | +24V Power Supply & Ethernet interface & UART | |
