1. Main Technical Specifications
qualification | code | Min | TYP | Max | Unit |
low frequency operating frequency | 10.7 | 11.7 | GHz | ||
high frequency operating frequency | 11.8 | 12.8 | GHz | ||
saturated output power | Psat | 42.5 | 43.5 | 45.5 | dBm |
power gain flatness | ΔG | ±1.5 | dB | ||
Default scan speed | Sweep rate | 100 | KHz | ||
Scan speed range Controlled by host computer software | Sweep rate | 1 | 300 | KHz | |
noise suppression@saturation output | Spur | -50 | dBc | ||
harmonic suppression@saturation output | 2nd/3nd | -50 | dBc | ||
input/output impedance | I/O-IMP | 50 | Ω | ||
supply electricity | Vdc | AC 220 | V | ||
power dissipation （CW） | Pdiss | 110 | W | ||
operating temperature range | OT | 0 | +55 | ℃ | |
size | DM | 315*200*117mm | |||
weight | WT | No more than 6 kg | |||
heat radiation | Cooling | natural wind self cooling | |||

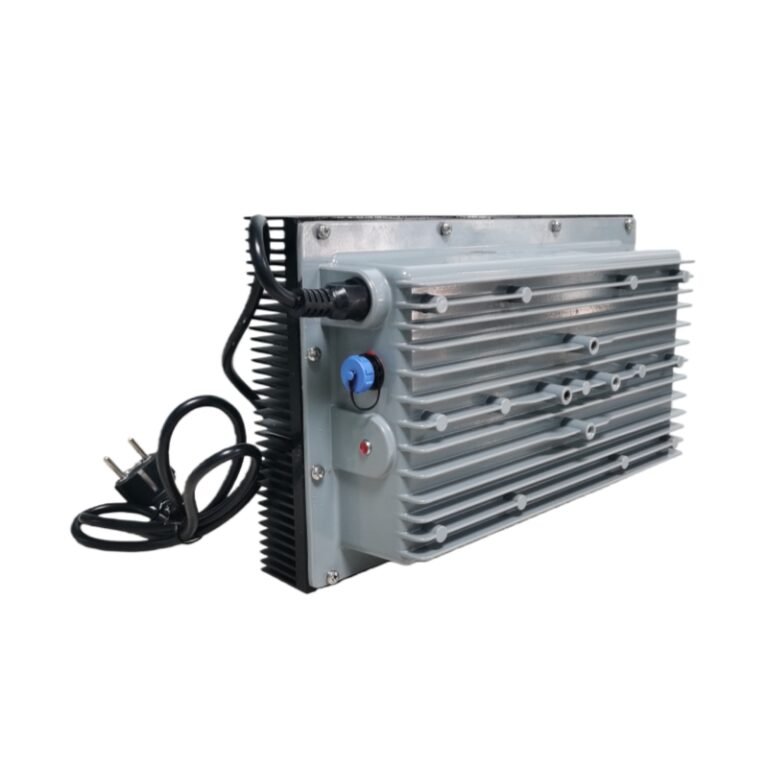

2. Interface Definition
interface code | interface type | interface function | remarks |
X1 | waterproof metal red indicator light | working station indicator | Normal, bright red |
X2 | waveguide | radio frequency output | antenna matching |
X3 | 220V/10A three-core power cord | 220VAC power supply interface | power supply interface |
X4 | RS485 interface three-core control line Connect via USB to RS485 adapter Host computer software) |
frequency sweep speed control |
RS485 communication |

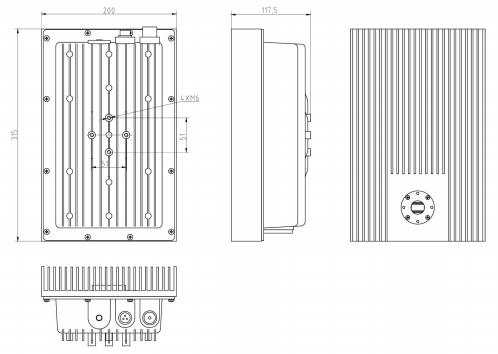

Schematic Diagram of Appearance

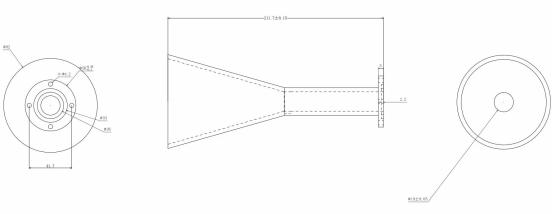

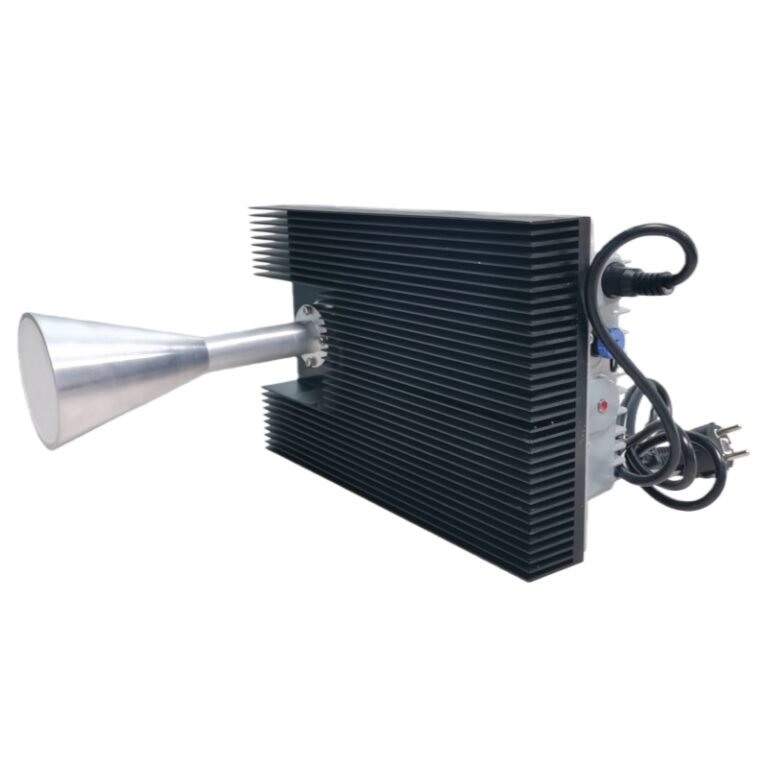

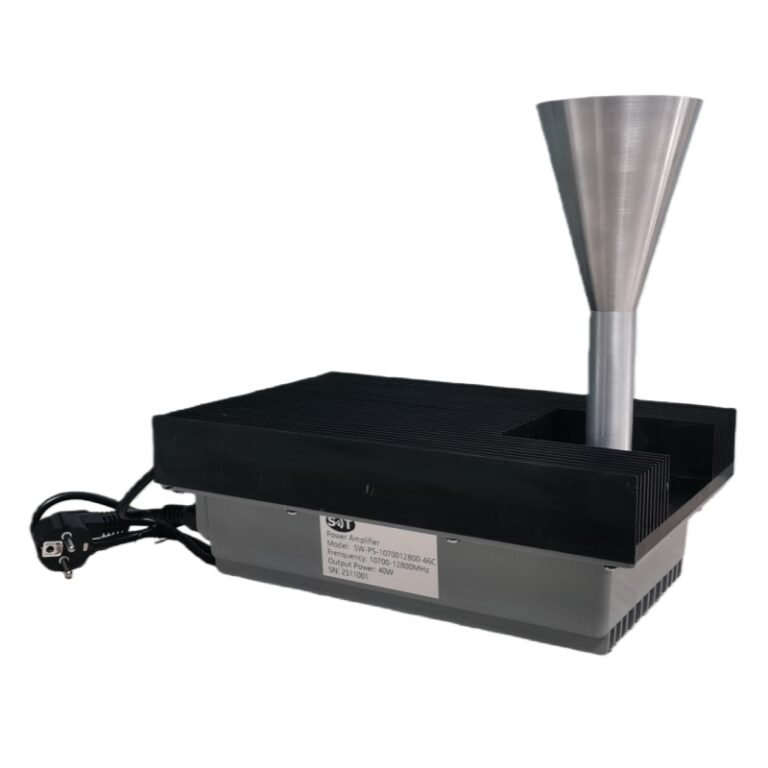

antenna profile
