1/pcs
Standard Packing
5-8 work days
L/C, D/A, D/P, T/T, Western Union, MoneyGram
1.0 | Electrical parameters | |
1.1 | Frequency Band | 8-12.4GHz |
1.2 | VSWR | ≤1.5 |
1.3 | Gain(TYP) | 20dB |
1.4 | Polarization | linear polarization |
1.5 | Connector | N-K / SMA-K |

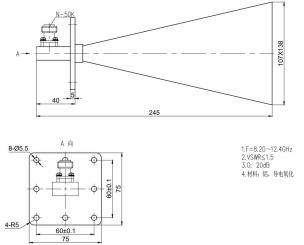

2.0 | Mechanical parameters | |
2.1 | Dimensions | 138*107*245mm |
2.2 | External surface paint color | Sea grey |
2.3 | Basic material | Aluminum |
2.4 | Weight | |

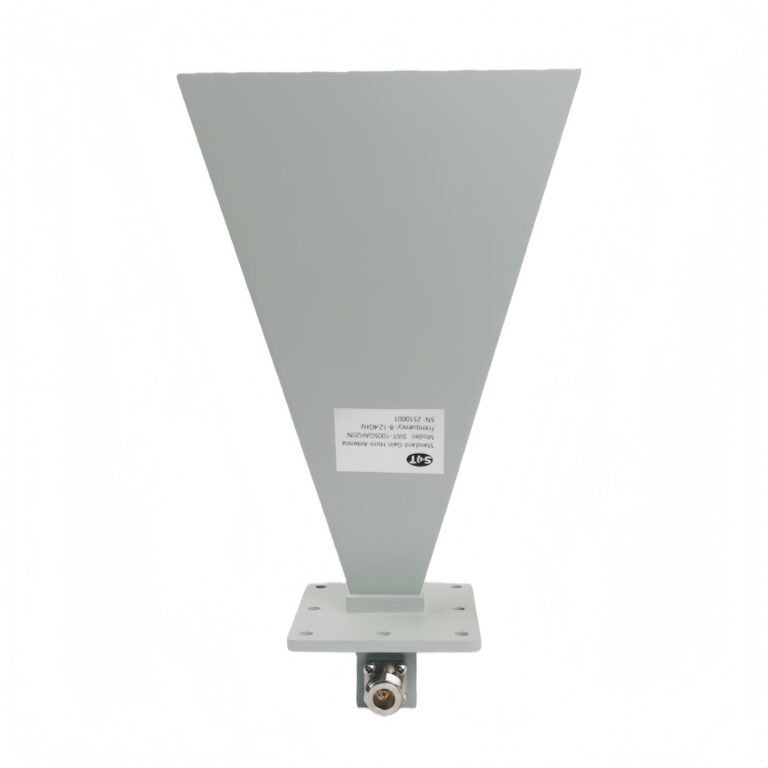

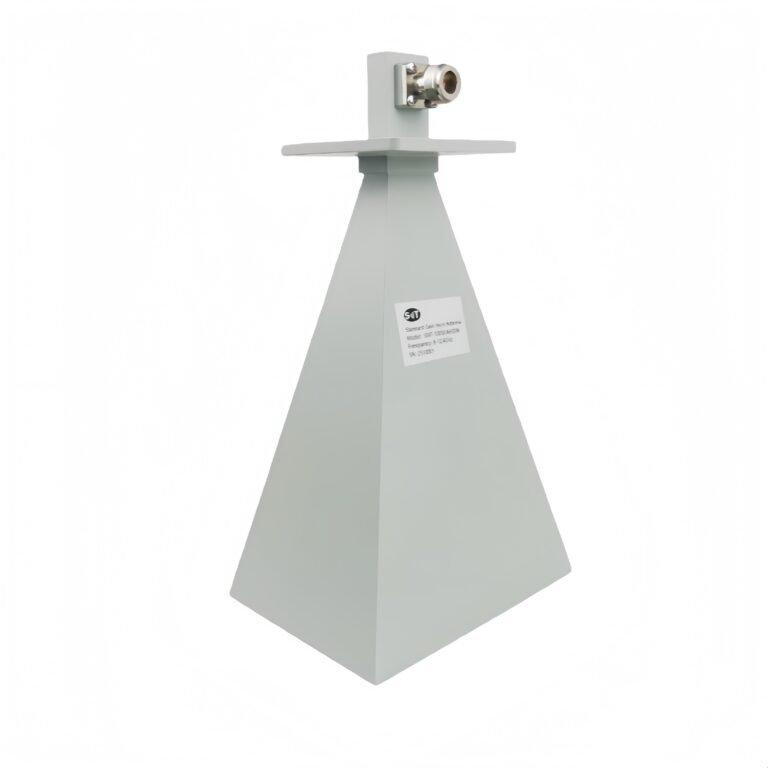

3.0 | Product appearance | |
