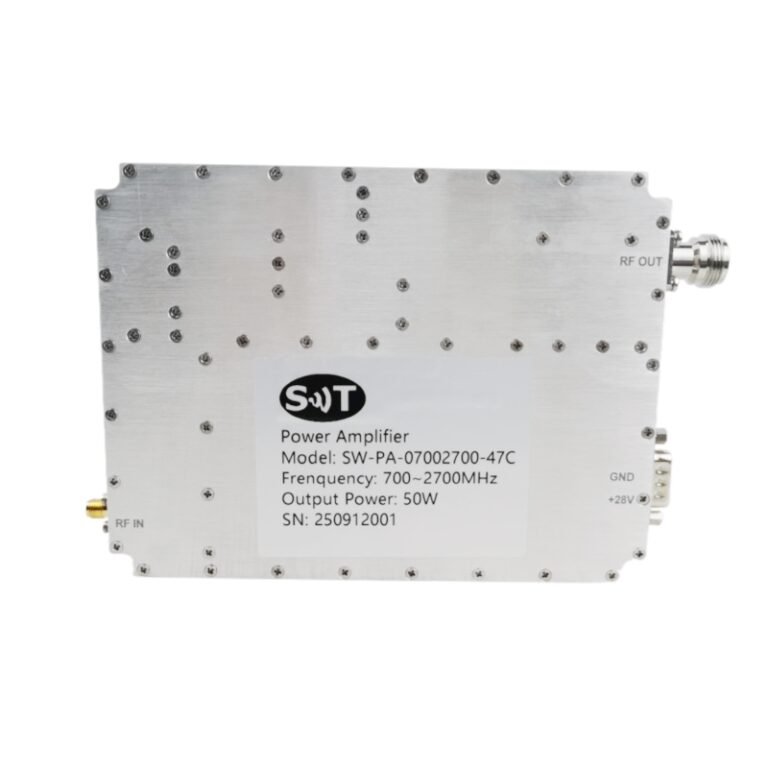

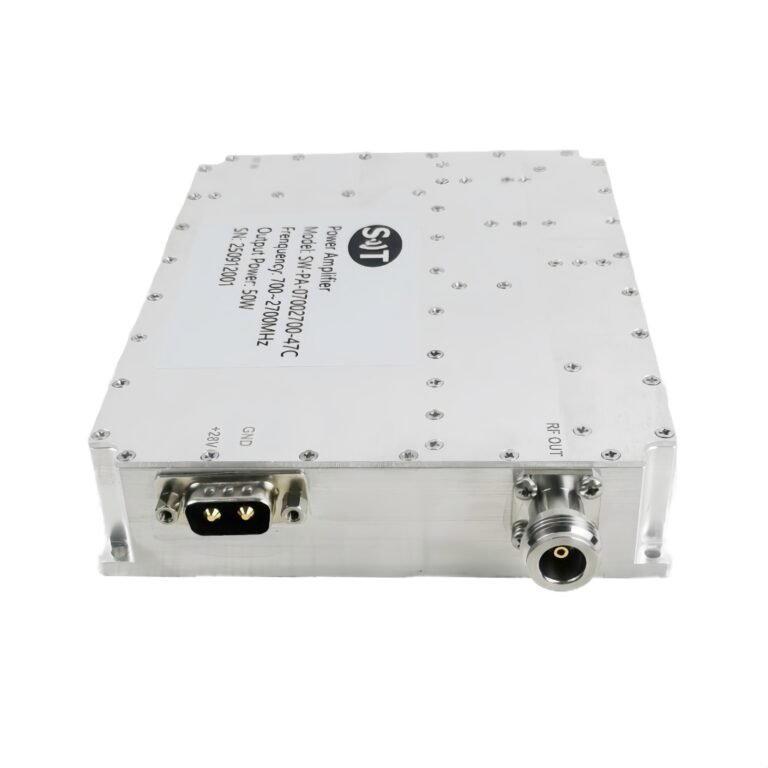

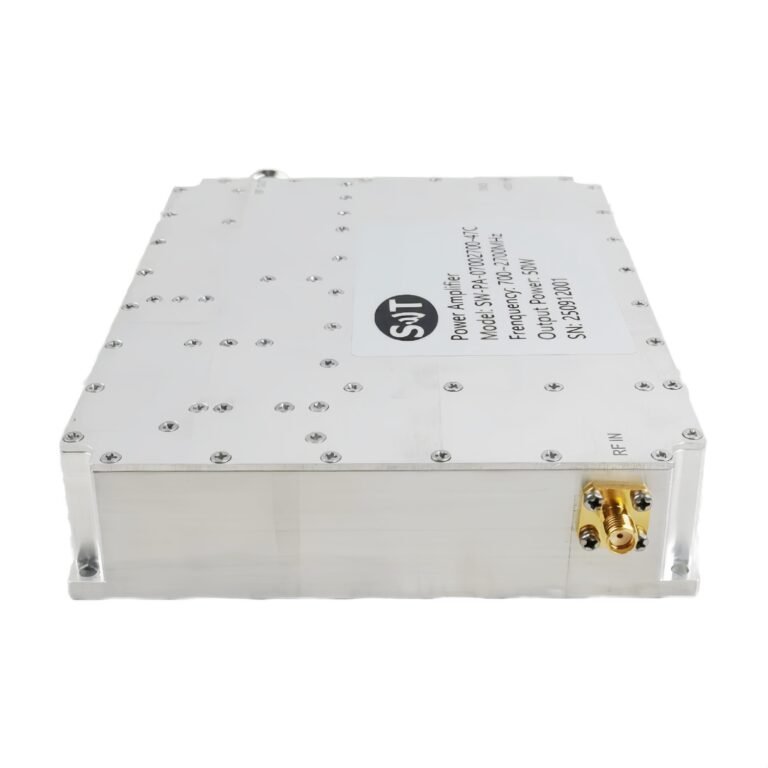

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28 VDC+25oC and in a 500 system
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 700 | 2700 | MHz | |
RF INPUT | 0 | dBm | ||
P-sat Power Output | 47 | dBm | ||
Power Gain | 47 | dB | ||
Power Gain Flatness | ±3 | dB | ||
Input VSWR | 2 | |||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Current | 8 | 10 | A | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 160x120x30 | mm |
RF Connectors (Input / Output) | SMA- KFD/ N – KFD | — |
DC / Connector | DSUB 2W2 | — |
Cooling | Consider heat dissipation with the system | — |

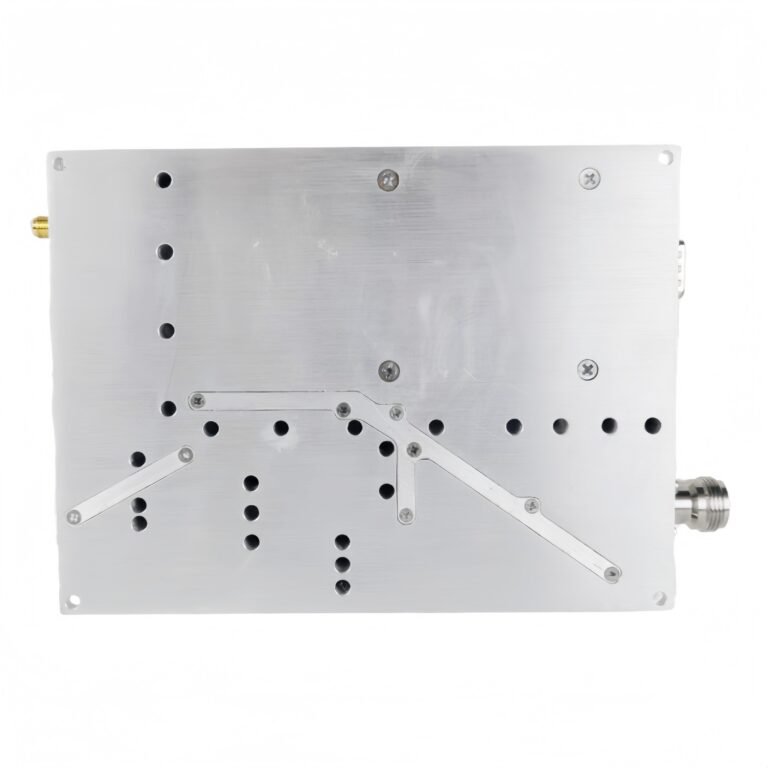

Mounting | φ3.5-6 Thru Hole | — |
Weight | ≤1.8 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 80 | °C | |
INPUT/OUTPUT PINS | ||
AMPLIFIER CONNECTOR TYPE: | DSUB 2W2 | |
TRIAD CABLE PART NUMBER: | —— | |
PIN NUMBER | LABEL | DESCRIPTION |
A1 | +VDC | +28V |
A2 | GND | Ground |
