Description

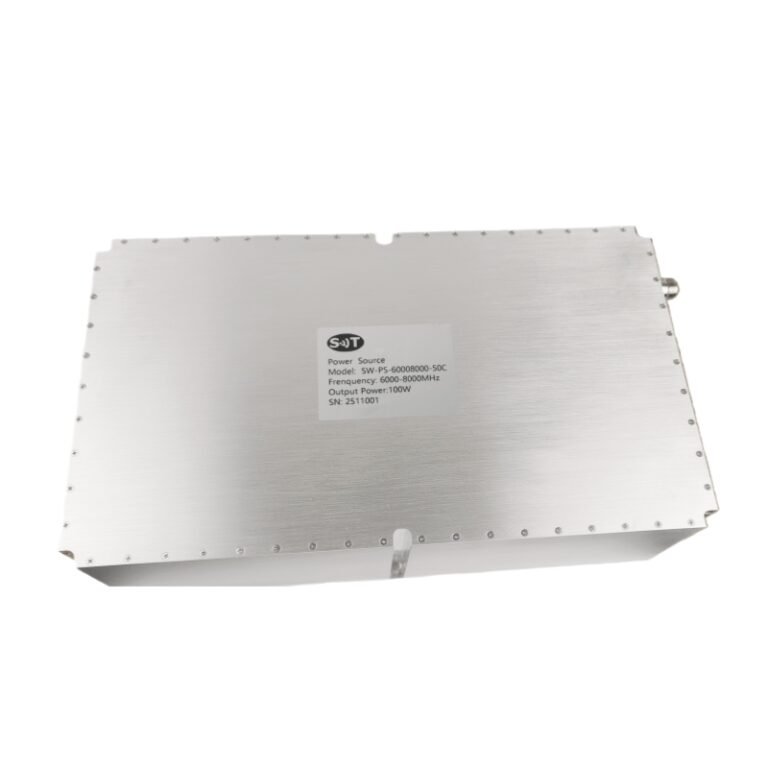

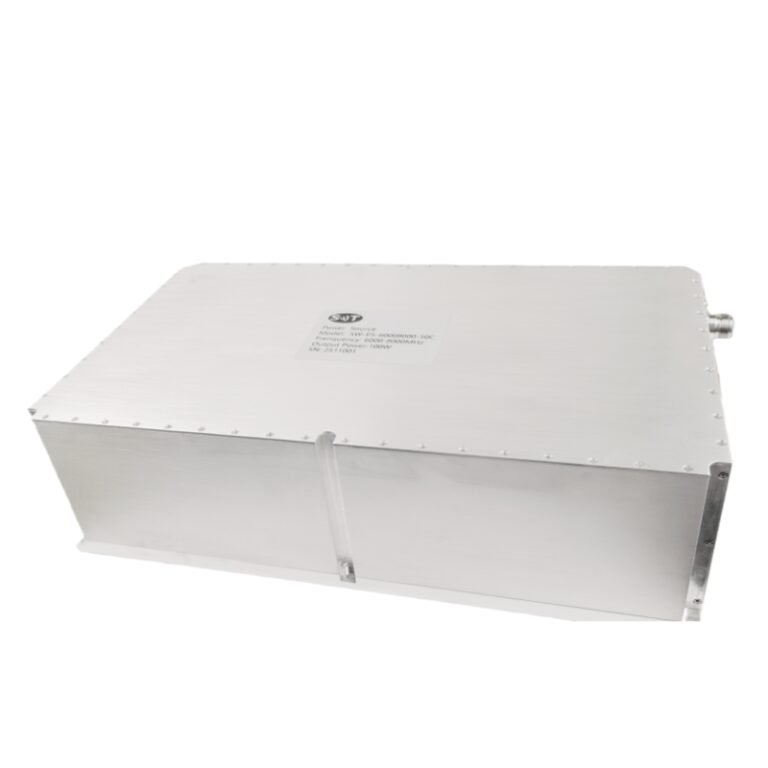

The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28 VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 6000 | 8000 | MHz | |
Operation Mode | CW | |||
Sweeping signal type | Linear frequency modulation | dBm | ||
Sweeping signal band | 5 | 250 | MHz | |
Customization Dwell time | 100 | 2000 | ns | |
Saturated Output Power | 50 | dBm | ||
Gain Flatness @ Psat | ±1.5 | dB | ||
Spurious Signals @ 100W | -55 | dBc | ||
Harmonic Signals @ 100W | -20 | dBc | ||
Input VSWR | 2 | — | ||
Operating Voltage | 32 | V DC | ||
Currents | 15 | A | ||
In-Out impedance | 50 | Ω | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

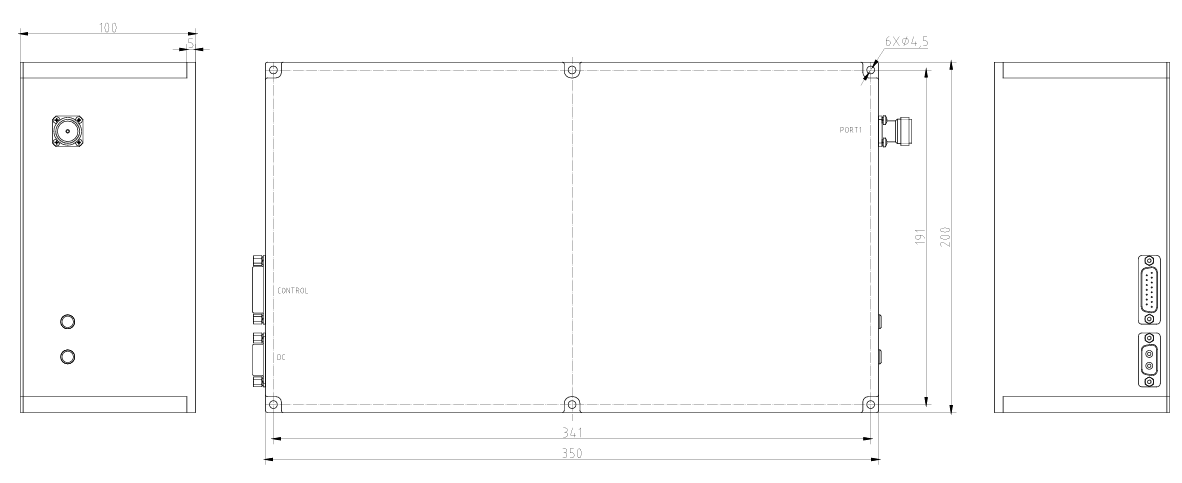

Dimensions (L x W x H) | 300*200*100 | mm |
RF Connectors (Output) | N- KFD | — |

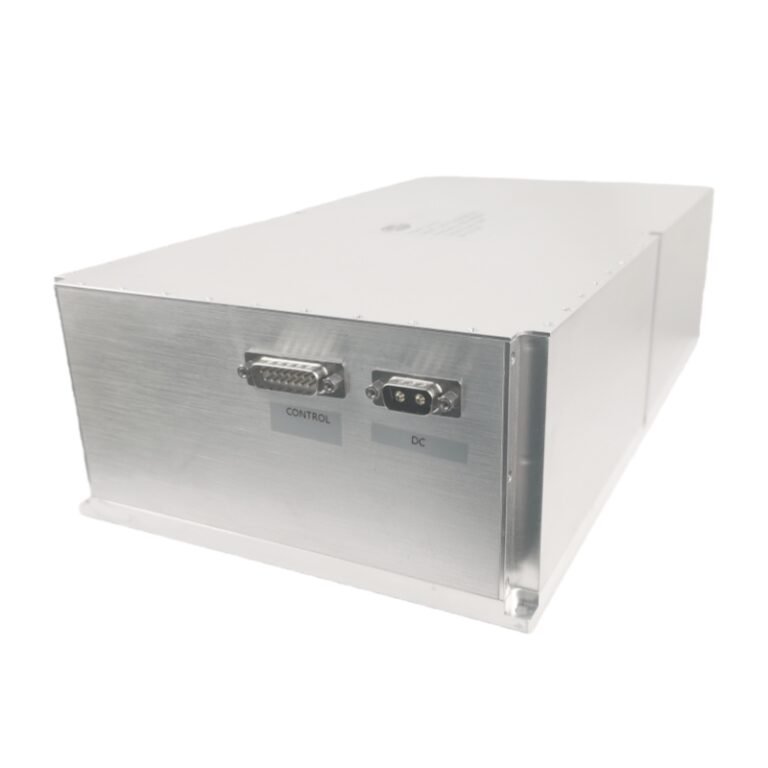

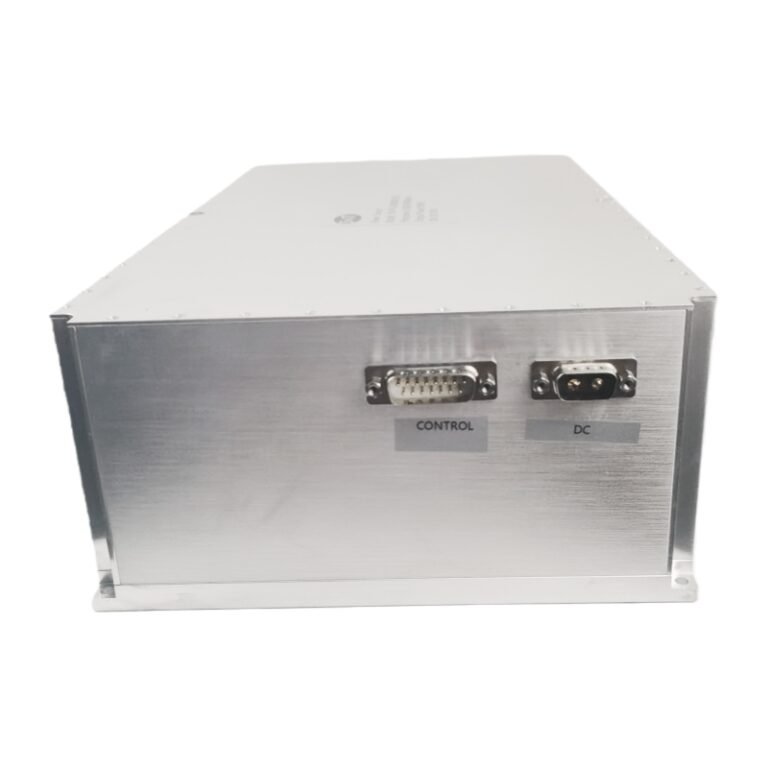

DC / Control Connector | D-SUB 2W2 M / D-B15 M | — |
Cooling | Consider heat dissipation with the system | — |
Mounting | φ4.5-6 Thru Hole | — |
Weight | ≤8 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -10 | +55 | °C |
Humidity Range | 0-95 | % | |

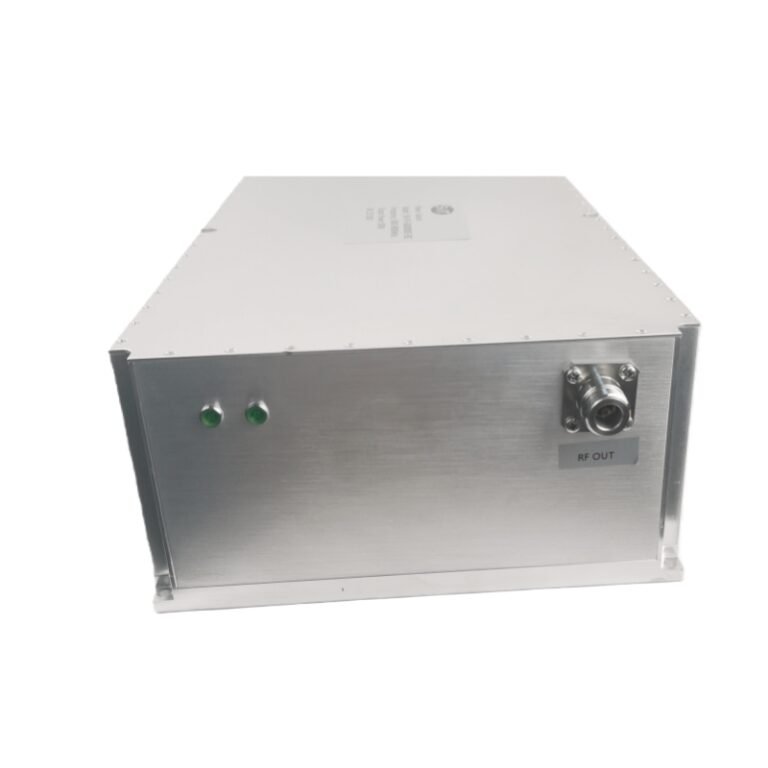

LED Monitoring | PA module must be have a LED for DC power on and another LED for RF power monitoring | — | |
Protections | Open/Short Output Protection | — | |
Low voltage protection | — | ||
Reverse Polarity Protection | — | ||
Over Temperature Protection | — | ||
INPUT/OUTPUT PINS | |||
AMPLIFIER CONNECTOR TYPE: | D-SUB 2W2 M | ||
TRIAD CABLE PART NUMBER: | —— | ||
PIN NUMBER | LABEL | DESCRIPTION | |
A1 | +VDC | +32V | |
A2 | GND | Ground | |
INPUT/OUTPUT PINS | ||
AMPLIFIER CONNECTOR TYPE: | D-B15 M | |
TRIAD CABLE PART NUMBER: | —— | |
PIN NUMBER | LABEL | DESCRIPTION |
1 | Power On/OFF Control | Power OFF: TTL “Low”, Power On: TTL “High” (Low : 0~0.5V, High : 2.5~5V) |
2 | GND | Ground |
3 | RS485A | PC software communicate with PA through RS485 communication protocol TTL communication |
4 | RS485B | |
5 | GND | |
6-15 | NC | NC |
