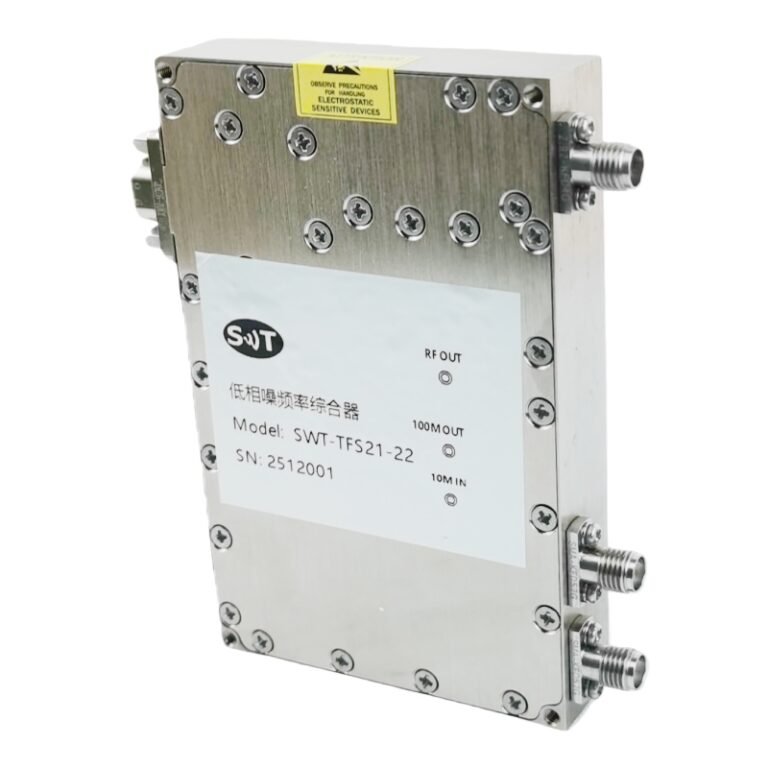

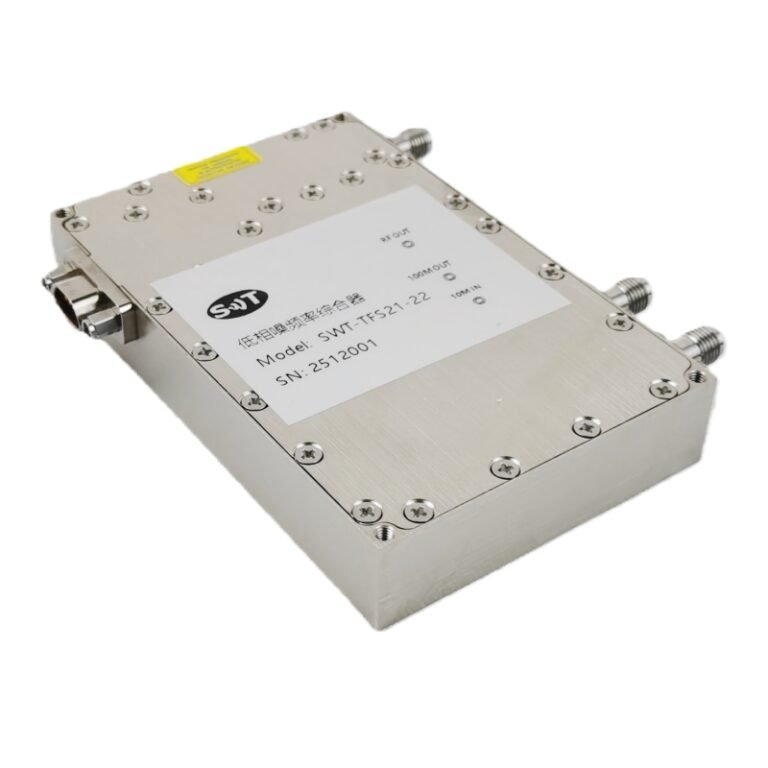

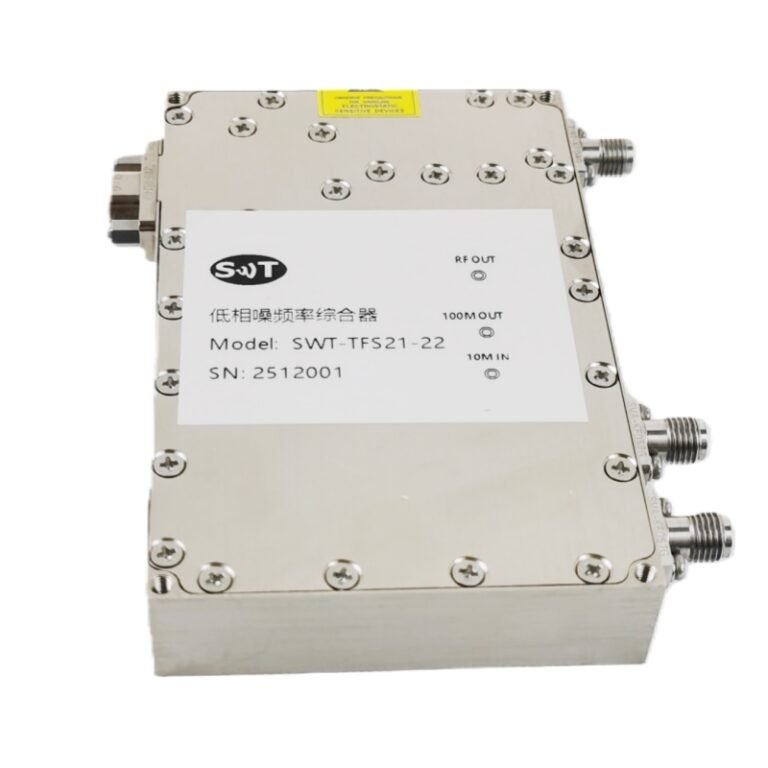

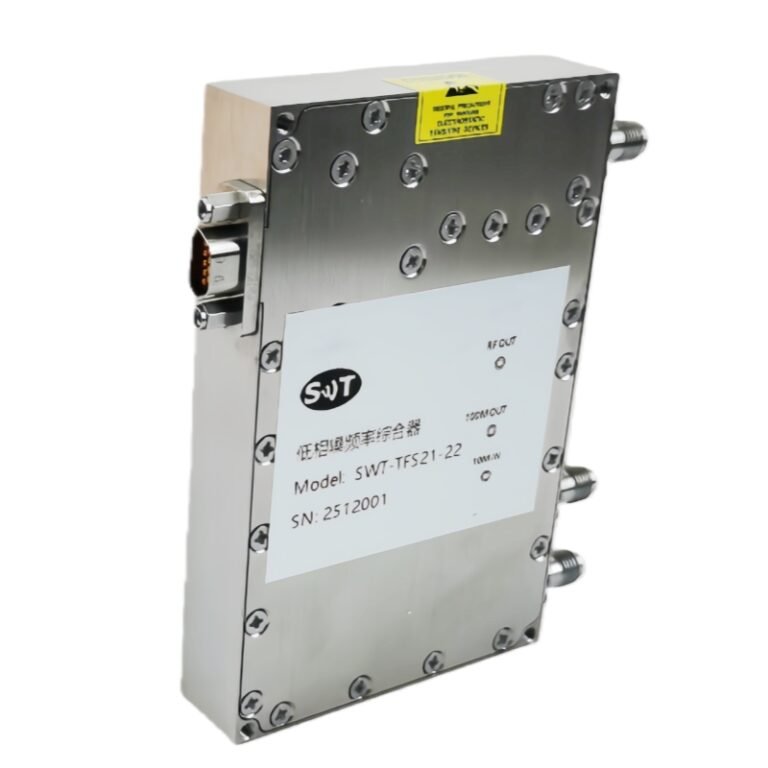

Input frequency (MHz) | 10 (Automatically lock to external references when available; use internal references otherwise) | ||||
Input power (dBm) | 7 ± 3 | ||||
Enter the reference phase noise | ≤ -155dBc/Hz@1kHz | ||||
Built-in reference (MHz) | 100 | ||||
Output frequency RF1 (MHz) | 50~22600 | ||||
frequency stability | ≤ 2×10-7 (external reference is synchronized with external reference when external reference is used) | ||||
frequency accuracy | ≤ 2×10-7 (external reference is synchronized with external reference when external reference is used) | ||||
Frequency step (mHz) | 0.1 | ||||
Frequency hopping time (μs) | ≤ 25 (excluding communication time) | ||||
Output power (dBm) | 4 ± 5 | ||||
stray （dBc） | ≤ -70/-65 (typical maximum) | ||||
harmonic wave （dBc） | ≤ -5 ≤ 1/2 and 3/2 harmonics of-20(11.3GHz~22.6GHz) | ||||
Output frequency RF2 (MHz) | 100 | ||||
Output power (dBm) | ≥ 0 | ||||
harmonic wave （dBc） | ≤ -30 | ||||
phase noise （ output frequency ）
| dBc/Hz@100Hz | @1GHz | ≤ -110 | @5GHz | ≤ -98 |
dBc/Hz@1kHz | ≤ -130 | ≤ -117 | |||
dBc/Hz@10kHz | ≤ -136 | ≤ -125 | |||
dBc/Hz@100kHz | ≤ -136 | ≤ -125 | |||
dBc/Hz@1MHz | ≤ -136 | ≤ -125 | |||
dBc/Hz@100Hz | @10GHz | ≤ -92 | @22.6GHz | ≤ -85 | |
dBc/Hz@1kHz | ≤ -110 | ≤ -104 | |||
dBc/Hz@10kHz | ≤ -119 | ≤ -112 | |||
dBc/Hz@100kHz | ≤ -119 | ≤ -112 | |||
dBc/Hz@1MHz | ≤ -119 | ≤ -112 | |||
supply electricity （V/A） | +12V/1A (stabilized) | ||||
Interface requirements | RF interface: SMA-KFD / 2.92 (K-type female connector) Control and power interface: J30J-9-ZKP | ||||

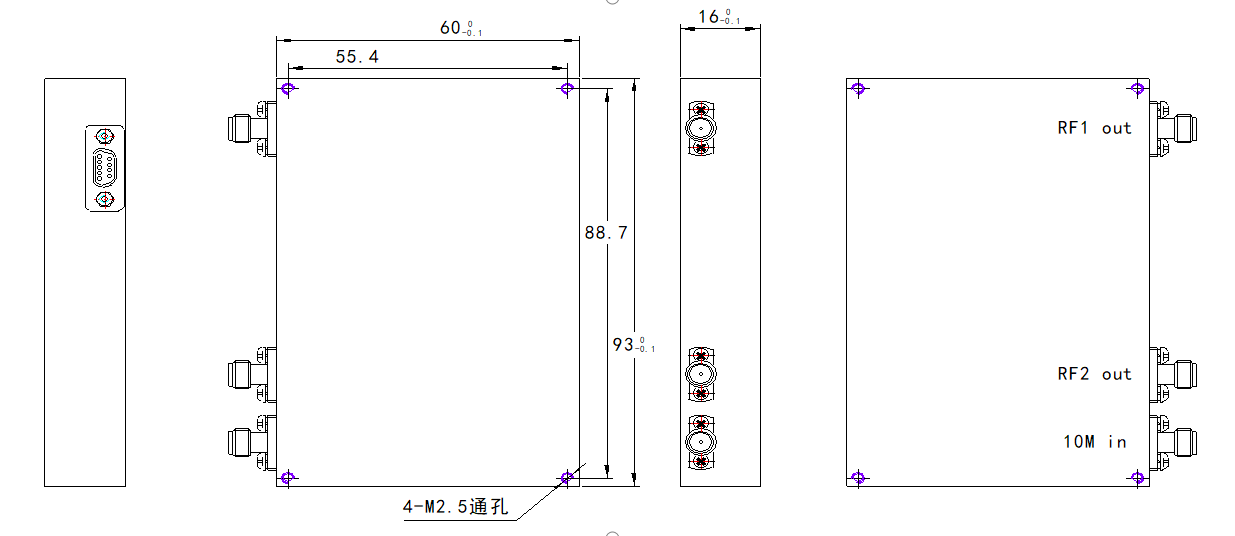

outline dimension | 93×60×16mm | ||||
control method | SPI (LVTTL level) | ||||
working temperature （℃） | -40~+70 | ||||
storage temperature （℃） | -55~+85 | ||||
Connector definition | ||||||
RF1 out | 2.92 (K-type female head) (removable) | |||||
RF2 out | SMA-KFD (Removable) | |||||
10M in | SMA-KFD (Removable) | |||||
Power and Control | J30J-9-ZKP | |||||
J30J-9-ZKP interface definition | ||||||
1 | +12V (Power) | 4 | GND（ the earth ） | 7 | MISO (SPI Communication Interface) | |
2 | +12V (Power) | 5 | LD (Lock: High-Level Lock) | 8 | SPI communication interface | |
3 | GND（ the earth ） | 6 | MOSI (SPI Communication Interface) | 9 | LE (SPI Communication Interface) | |
