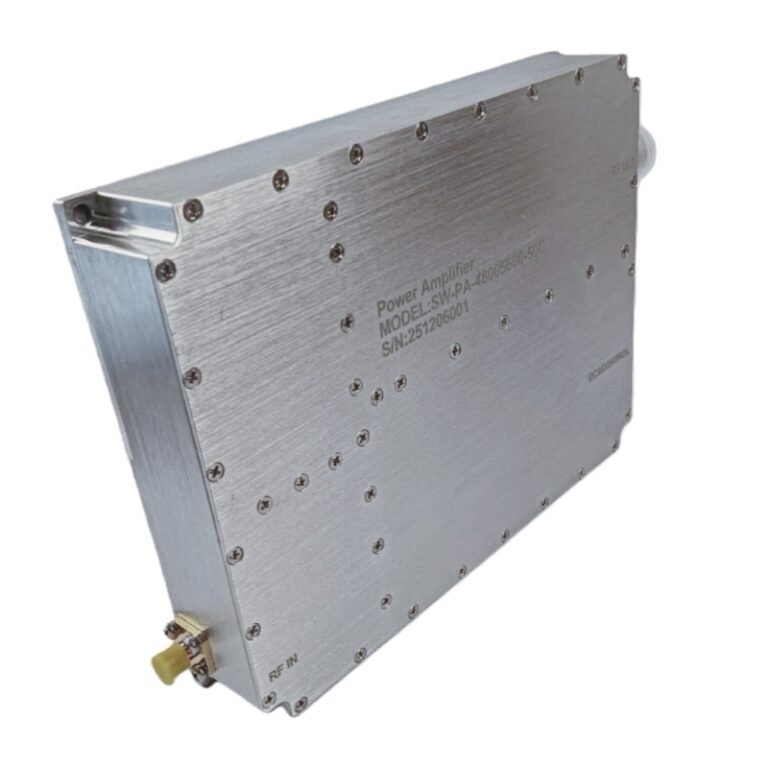

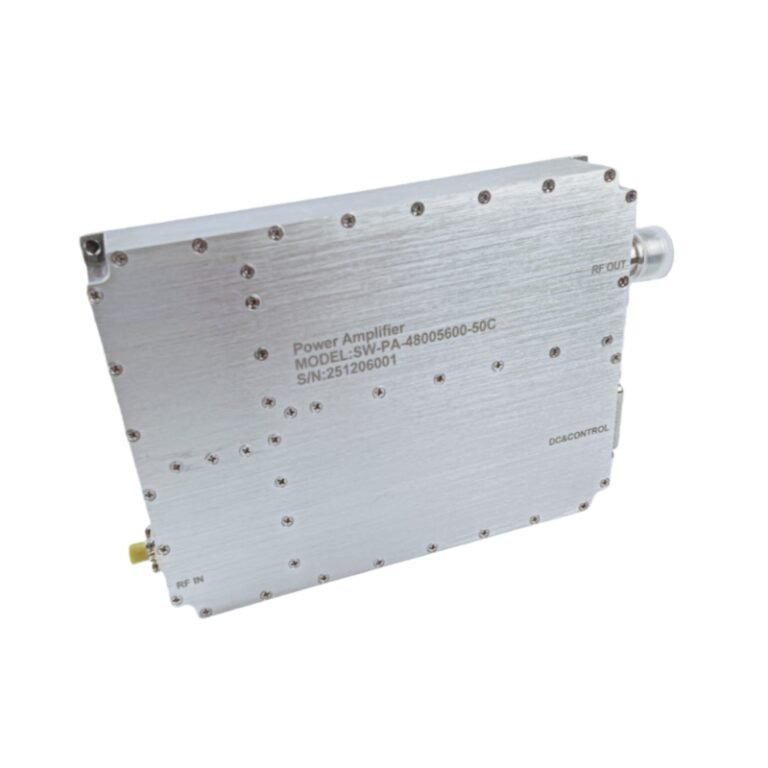

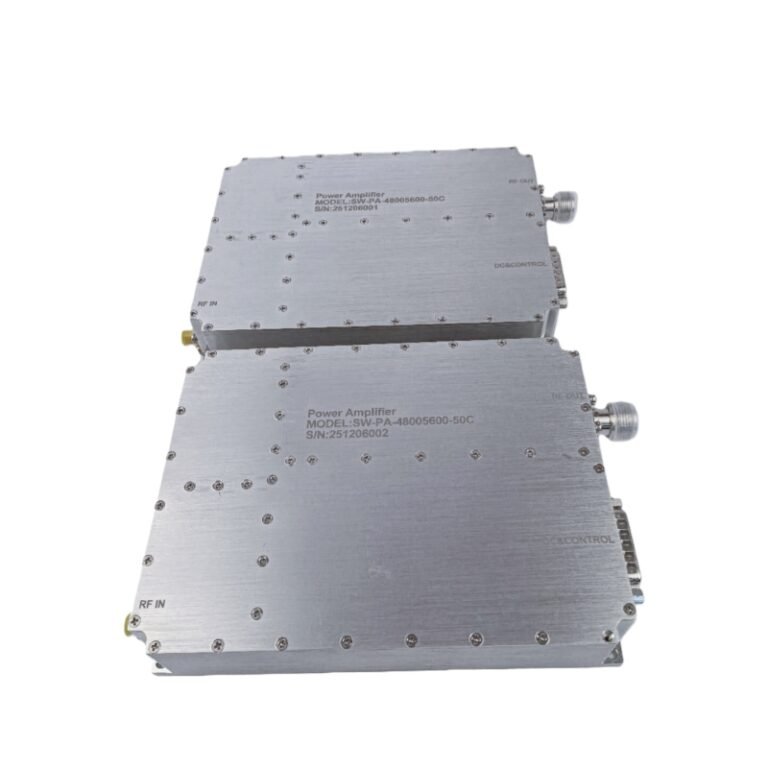

Description
The module is designed for both commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 4800 | 5600 | MHz | |
RF INPUT | -10 | dBm | ||
Power Gain | 60 | dB | ||
P-sat Output Power | 50 | dBm | ||
Power Gain Flatness | ±1.5 | dB | ||
In/Out Impedance | 50 | Ω | ||
Input VSWR | 1.25 | 2 | — | |
Spurious Signals | -55 | dBc | ||
Harmonic Signals | -20 | dBc | ||
Operating Voltage | 28 | V | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

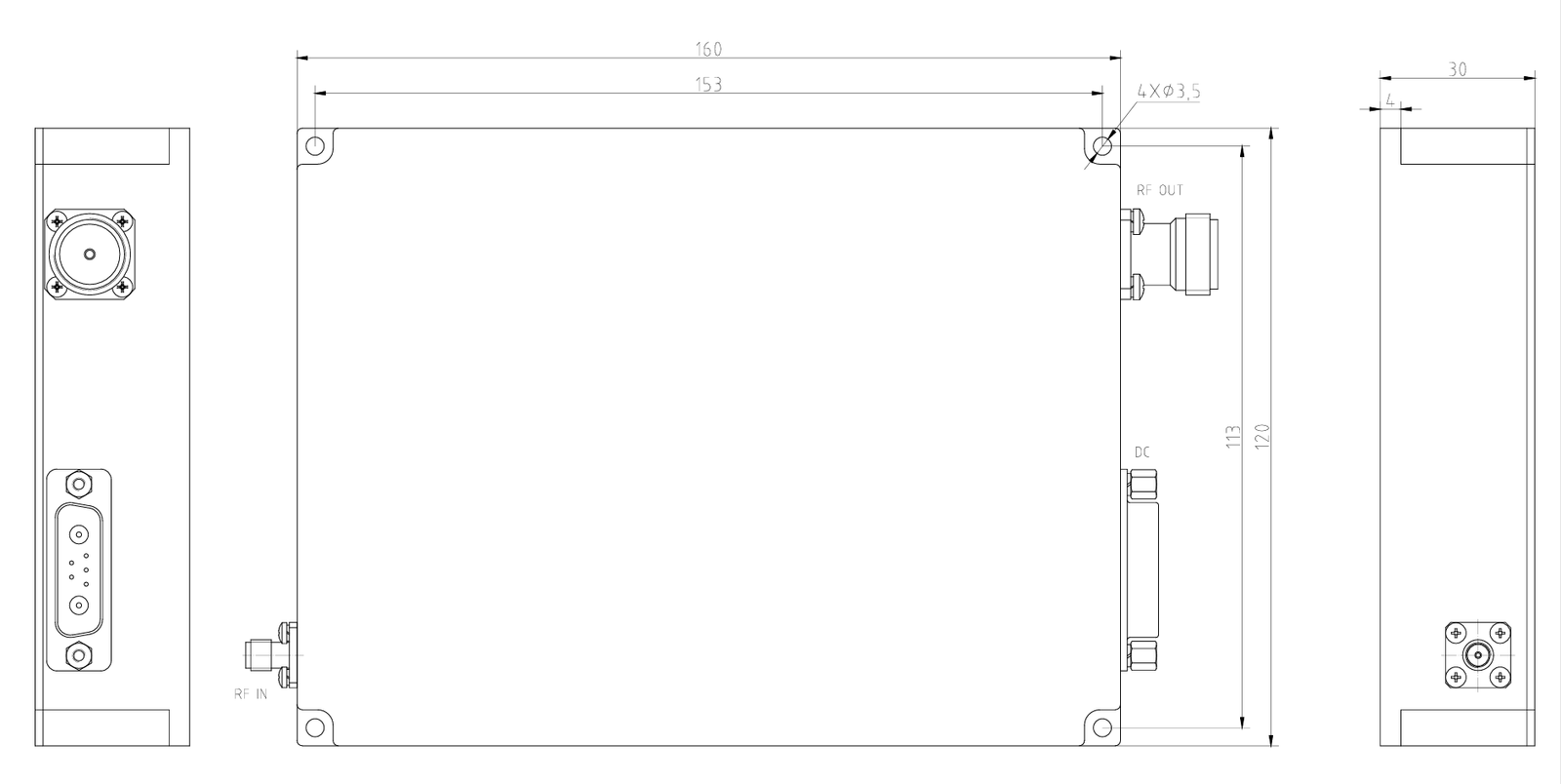

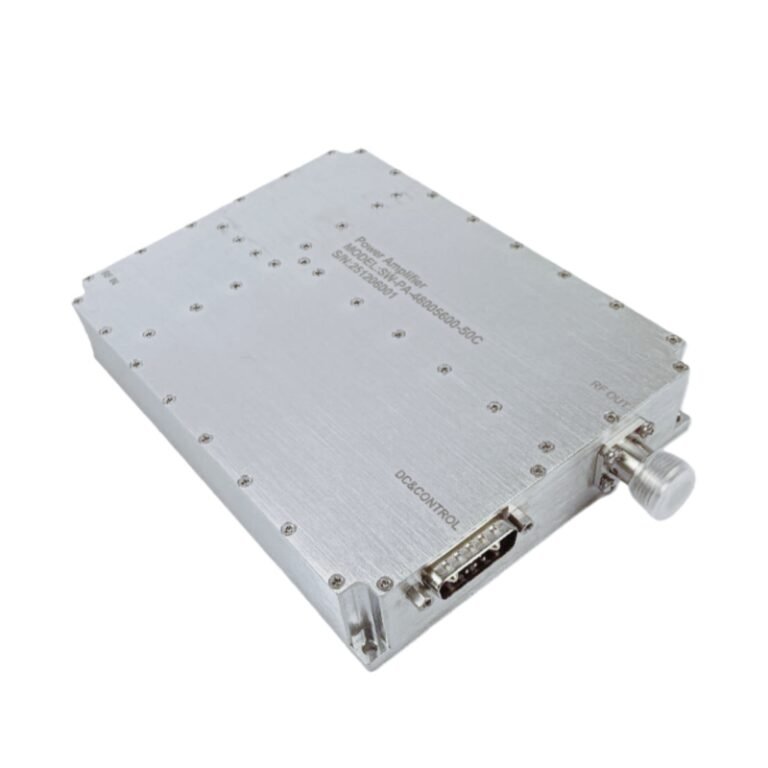

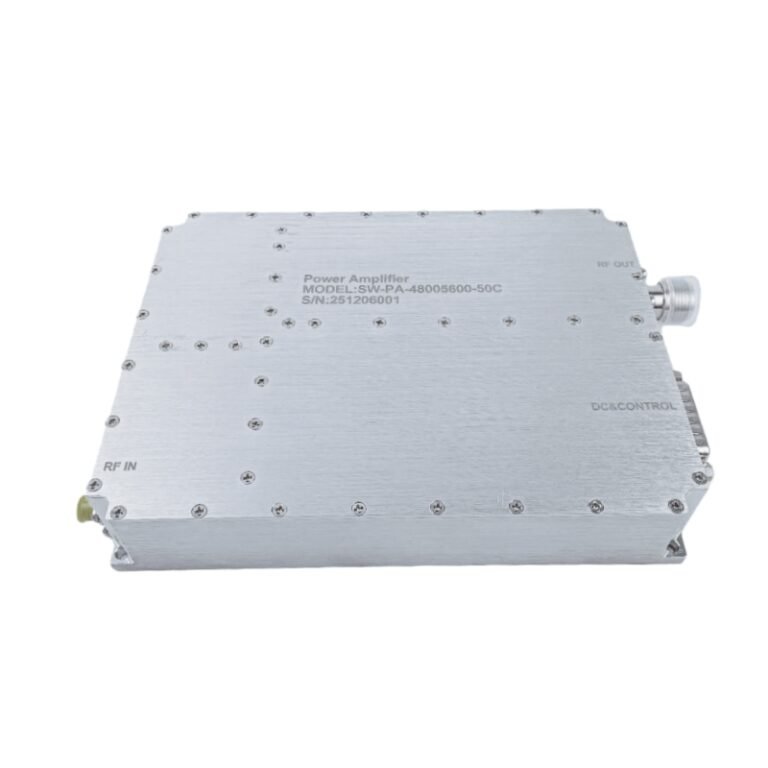

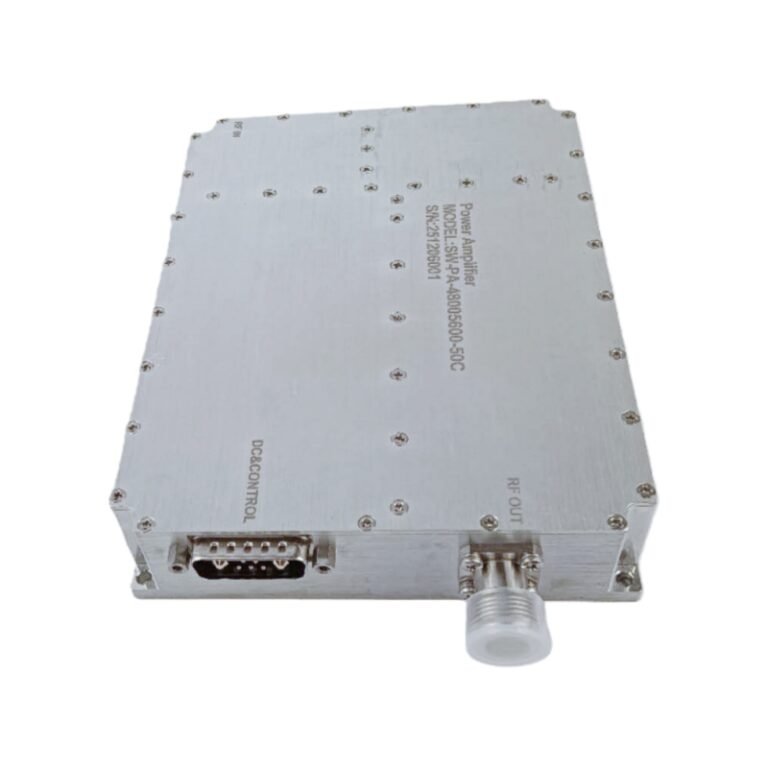

Dimensions (W x D x H) | 160*120*30 | mm |
RF Connectors (Input / Output) | SMA-KF /N-KF | — |
DC & Control Connector | D-SUB 7W2-M | — |
Cooling | Consider heat dissipation with the system | — |
Mounting | φ3.5-4 Thru Hole | — |
Weight | ≤2 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +65 | °C |
Humidity Range | 0-95 | % | |
PA Baseplate Shutoff Temperature | + 80 | °C | |
INPUT/OUTPUT panel Connector | |||
AMPLIFIER CONNECTOR TYPE: | —— | ||
TRIAD CABLE PART NUMBER: | —— | ||
NUMBER | interface type | DESCRIPTION | |
X1 | SMA-FK | RF IN | |
X2 | N-KF | RF OUT | |
X3 | D-SUB 7W2 M | DC & Control interface | |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2 M | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
A1 | VDD | 28V |
A2 | GND | GND |
1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
2-5 | GND | GND |
