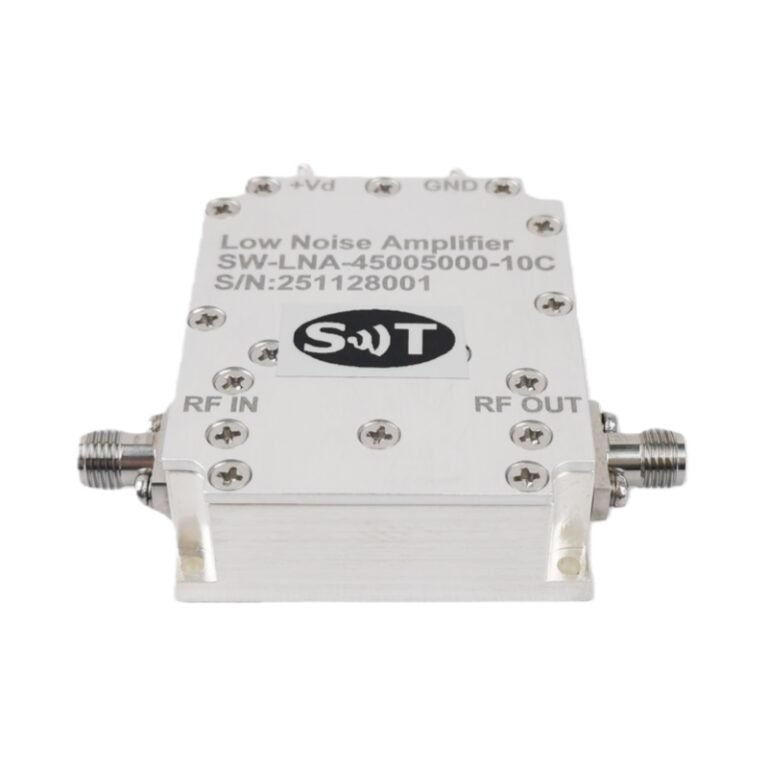

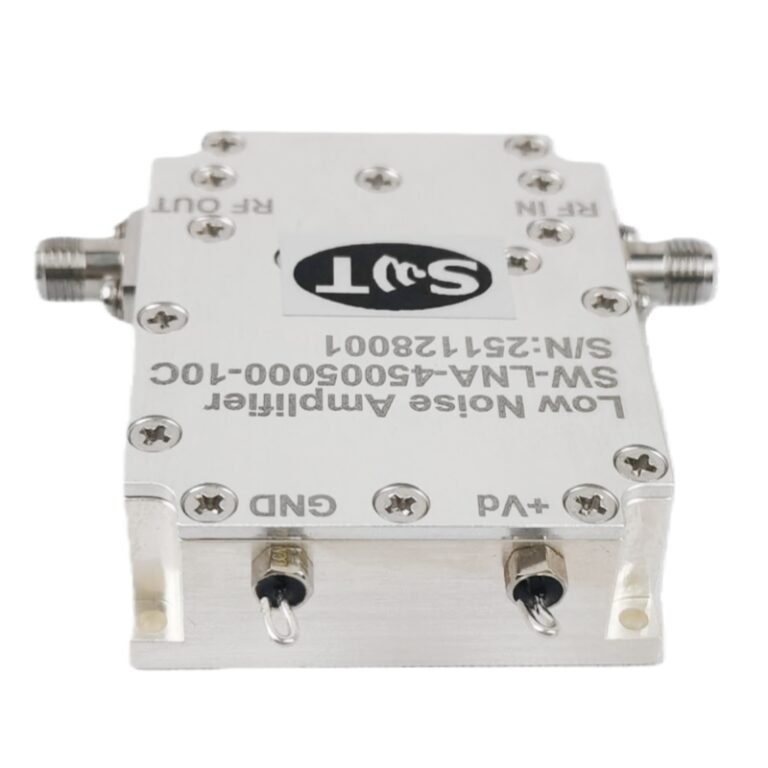

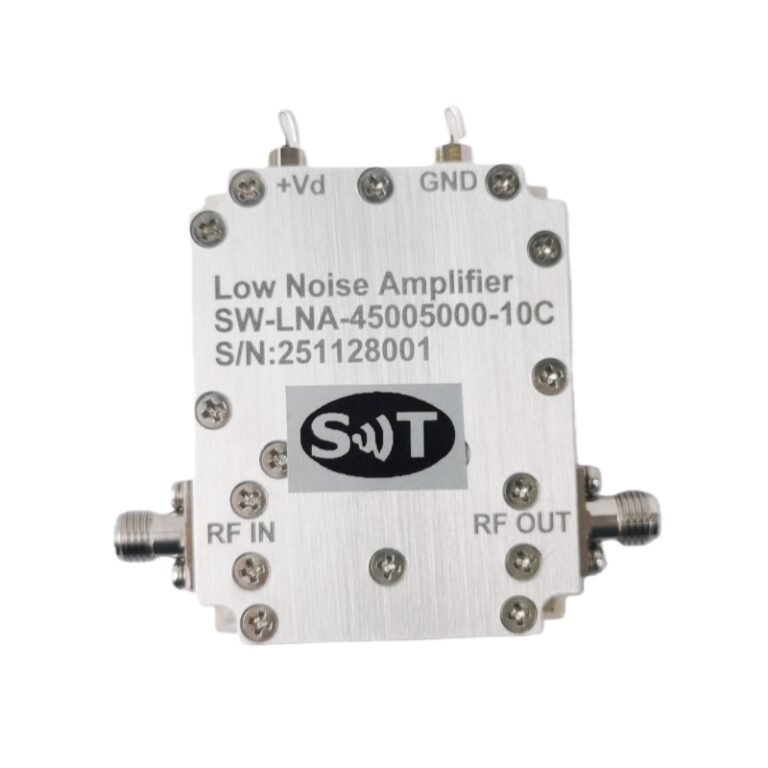

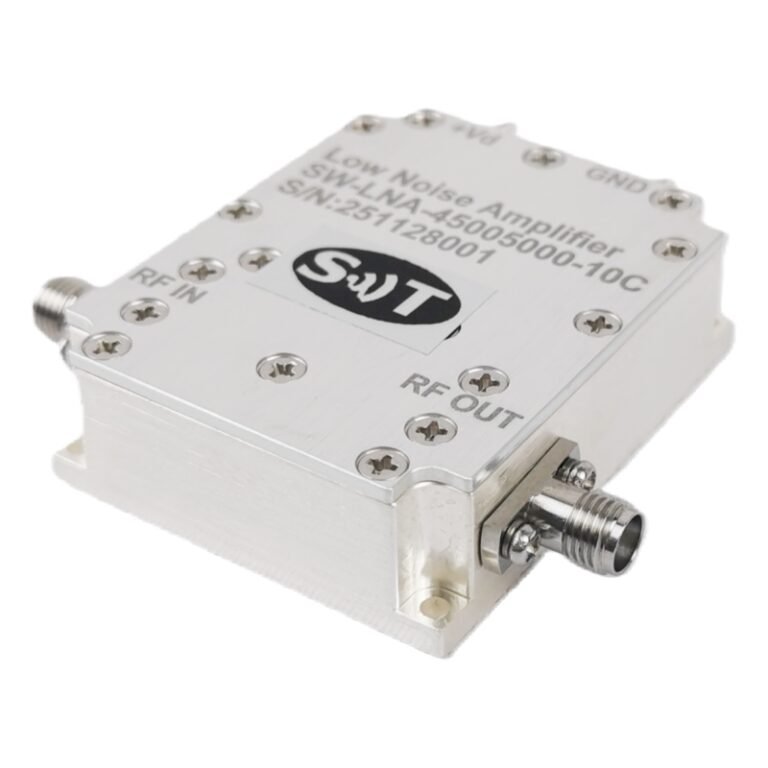

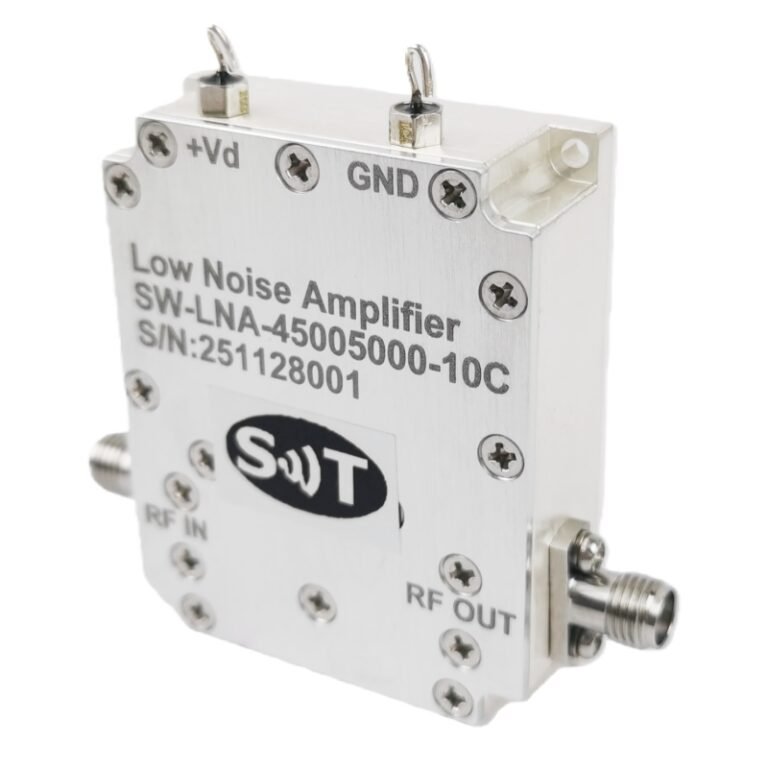

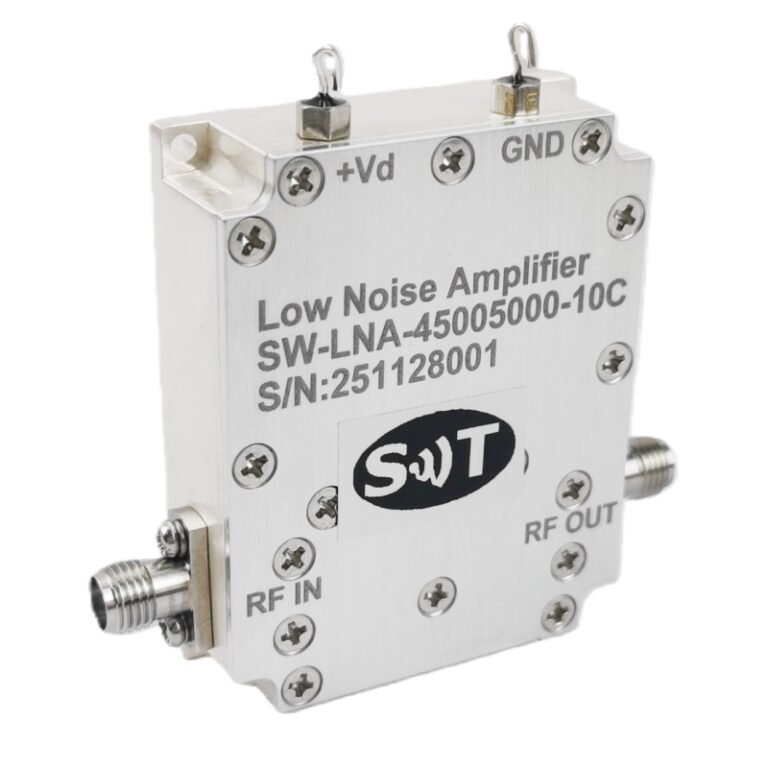

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +5V DC +25℃, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 4500 | 5000 | MHz | |
P-1dB Power Output | 10 | dBm | ||
Gain | 24 | dB | ||
Noise Figure@25℃ | 1.6 | 1.8 | dB | |
Power Gain Flatness@25℃ | ±2 | dB | ||
Input VSWR | 2.0 | |||
Operating Voltage | 5 | V DC | ||
In-Out impedance | 50 | Ω | ||
Currents | 70 | mA | ||

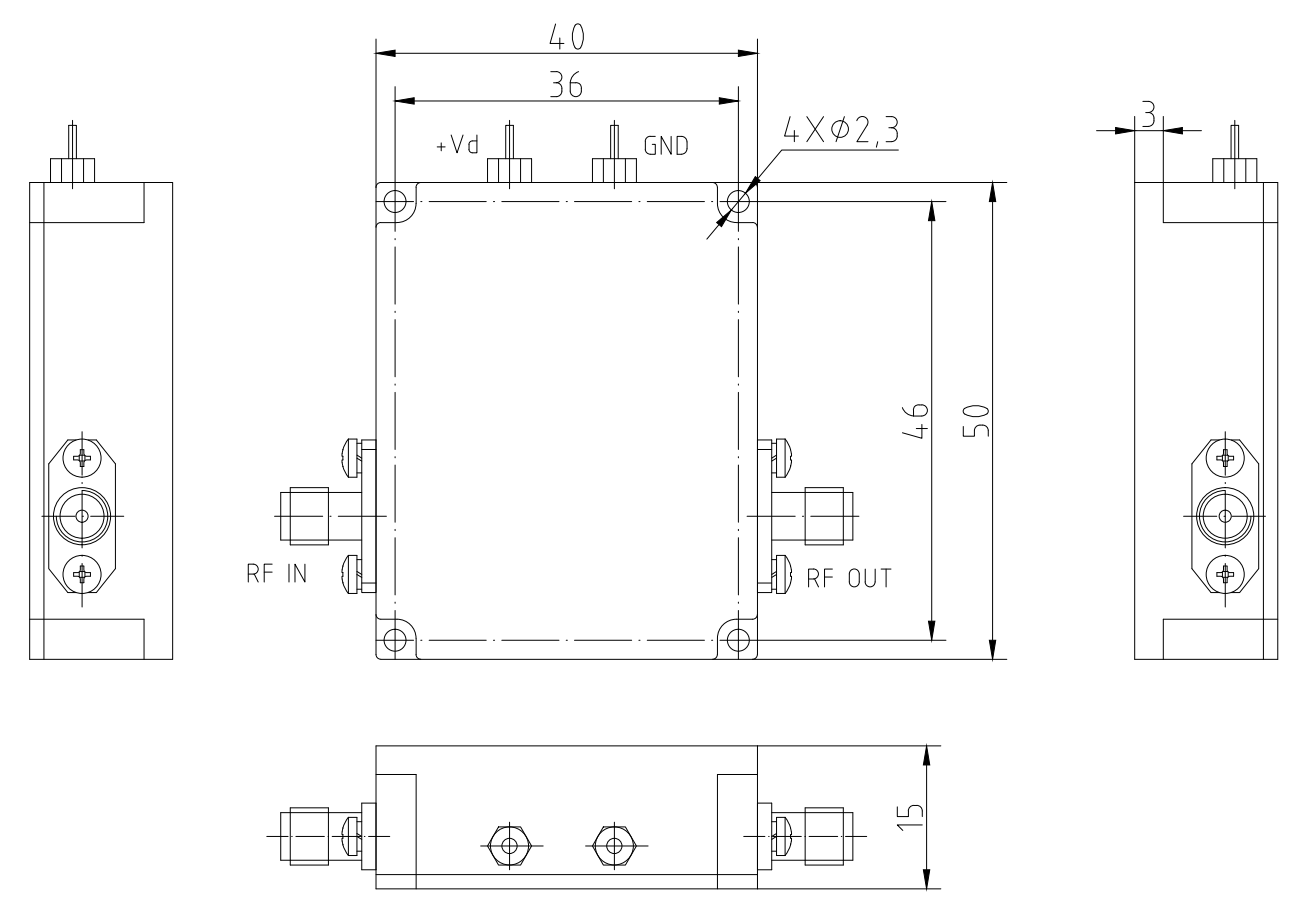

MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 40 x50 x 15 | mm |
RF Connectors (Input / Output) | SMA- KFD/ SMA – KFD | — |
DC Connector | Feed thru capacitor | — |
Cooling | Consider heat dissipation with the system (Not Supplied) | |
Mounting | φ2.3-4 Thru Hole | — |
Weight | ≤0.3 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +55 | °C |
Humidity Range | 0-95 | % | |
