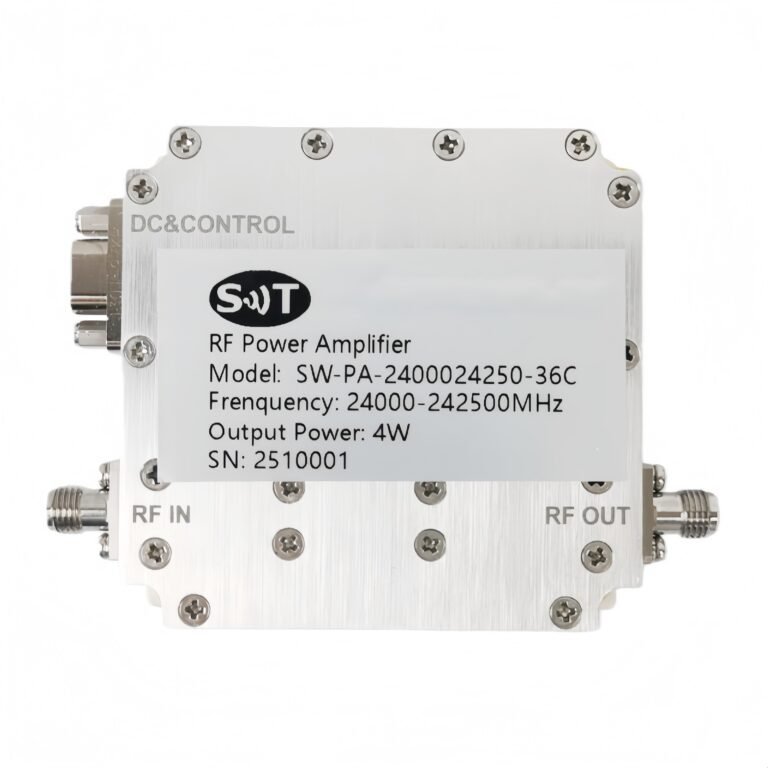

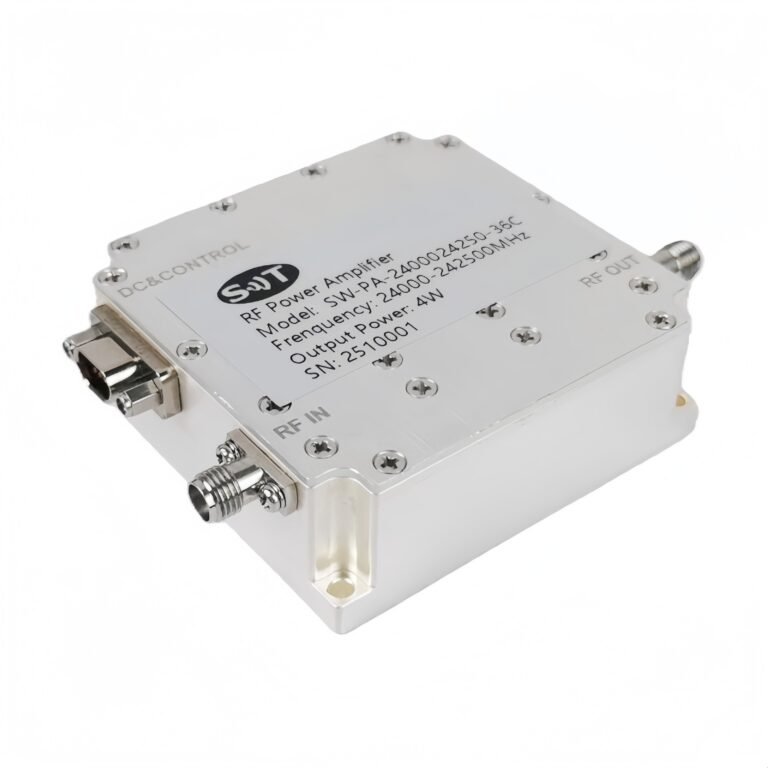

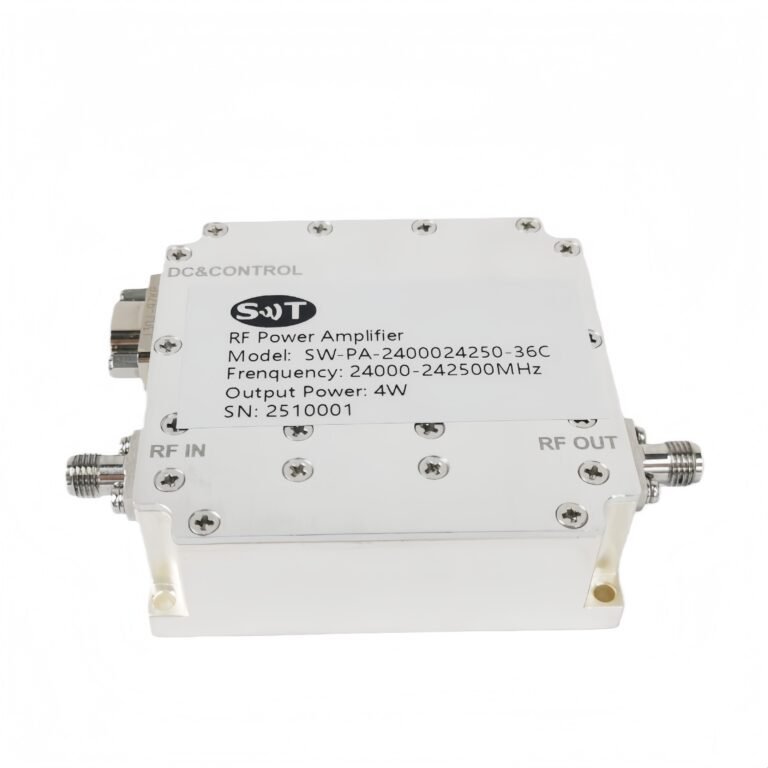

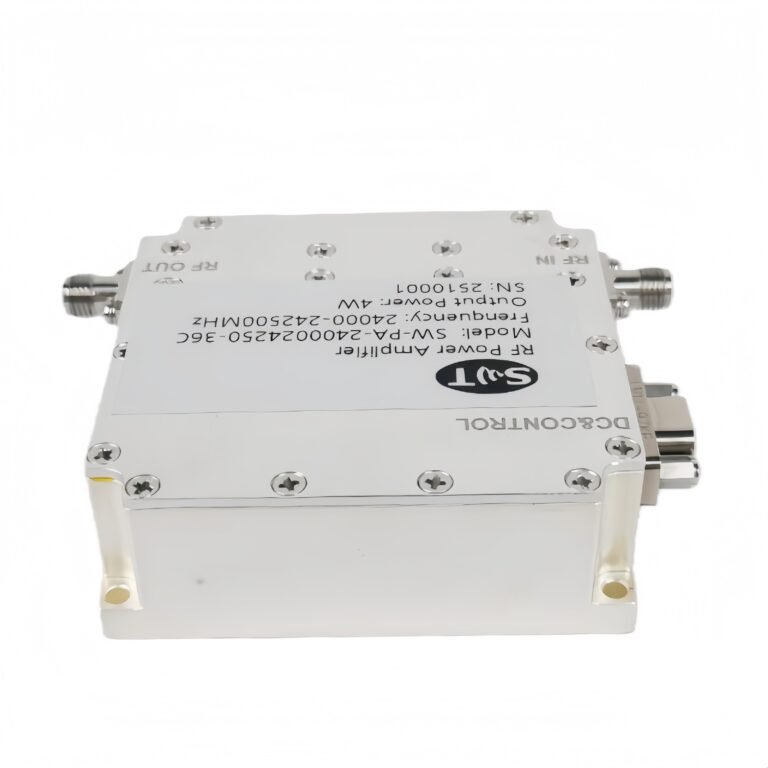

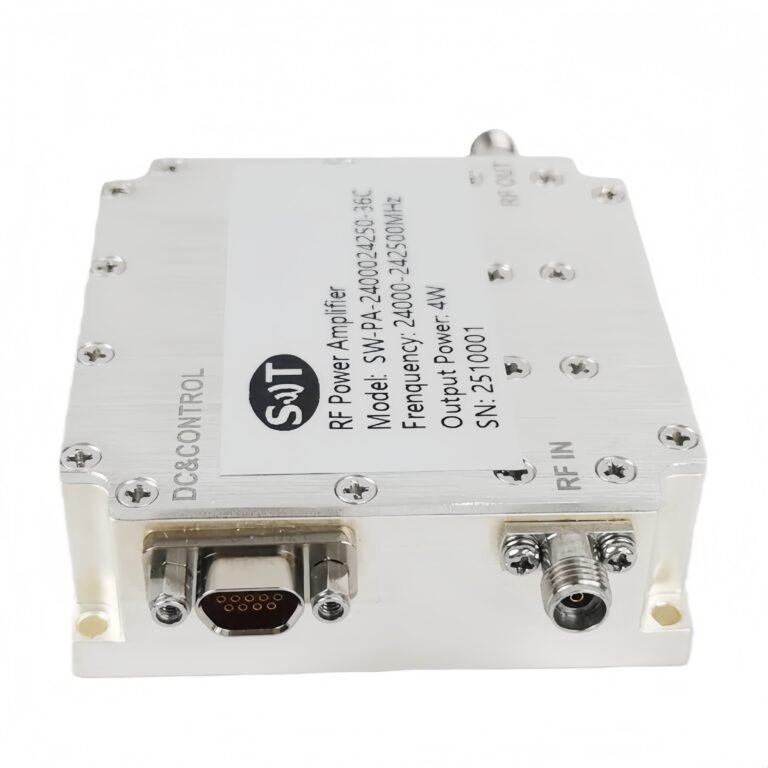

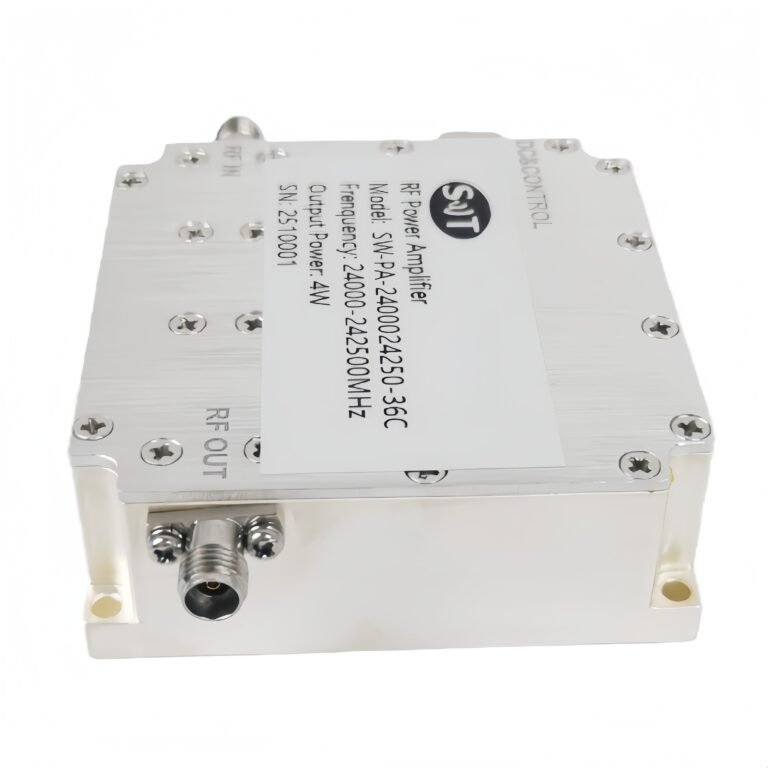

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 24V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 24000 | 24250 | MHz | |
RF INPUT | 0 | dBm | ||
RF Gain | 36 | dB | ||
P1 dB Output Power | 36 | dBm | ||
Power Gain Flatness | ±1.5 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -15 | dBc | ||
Input and Output VSWR | 2 | |||
Operating Voltage | 18 | 24 | 28 | V DC |
Current | 1.8 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | 100*100*30 | mm |
RF Connectors (Input / Output) | 2.92-F / 2.92-F | — |
DC/Control Connector | J30J-9ZKP：PA on/off control; Over-Temperature alarm | — |
Cooling | Base heat dissipation | — |
Weight | ≤1 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +60 | °C |
Storage Temp. | -40 | +80 | °C |
Humidity Range | 0-95 | % | |
