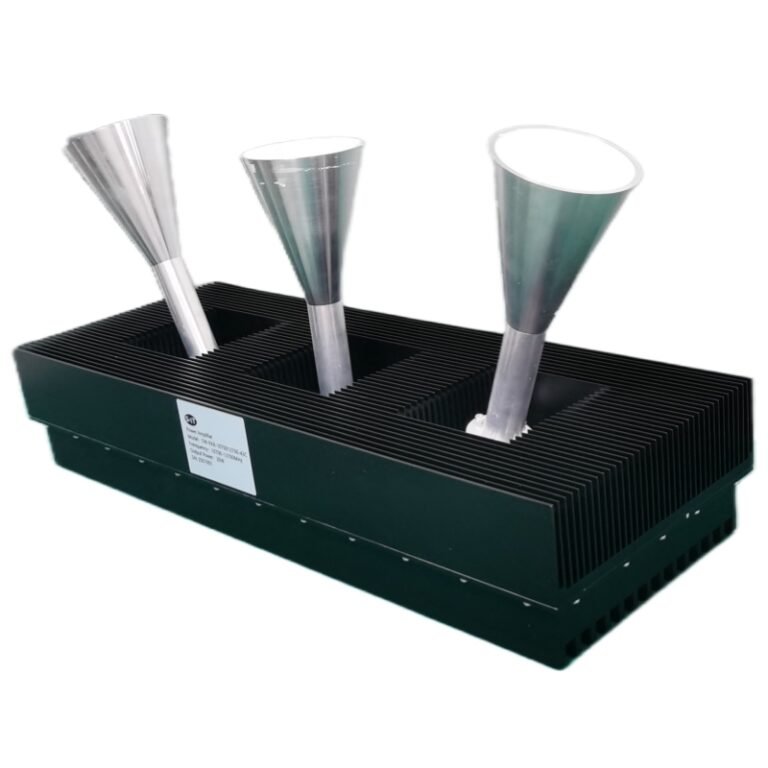

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 10700 | 12700 | MHz | |
Channel Number | 3 | –– | ||
P-sat Power Output @each channel | 43 | dBm | ||
Power Flatness | ±2 | dB | ||
Operating Voltage | 24 | 28 | DC | |
Out impedance | 50 | Ω | ||
Consumption | 350 | W | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

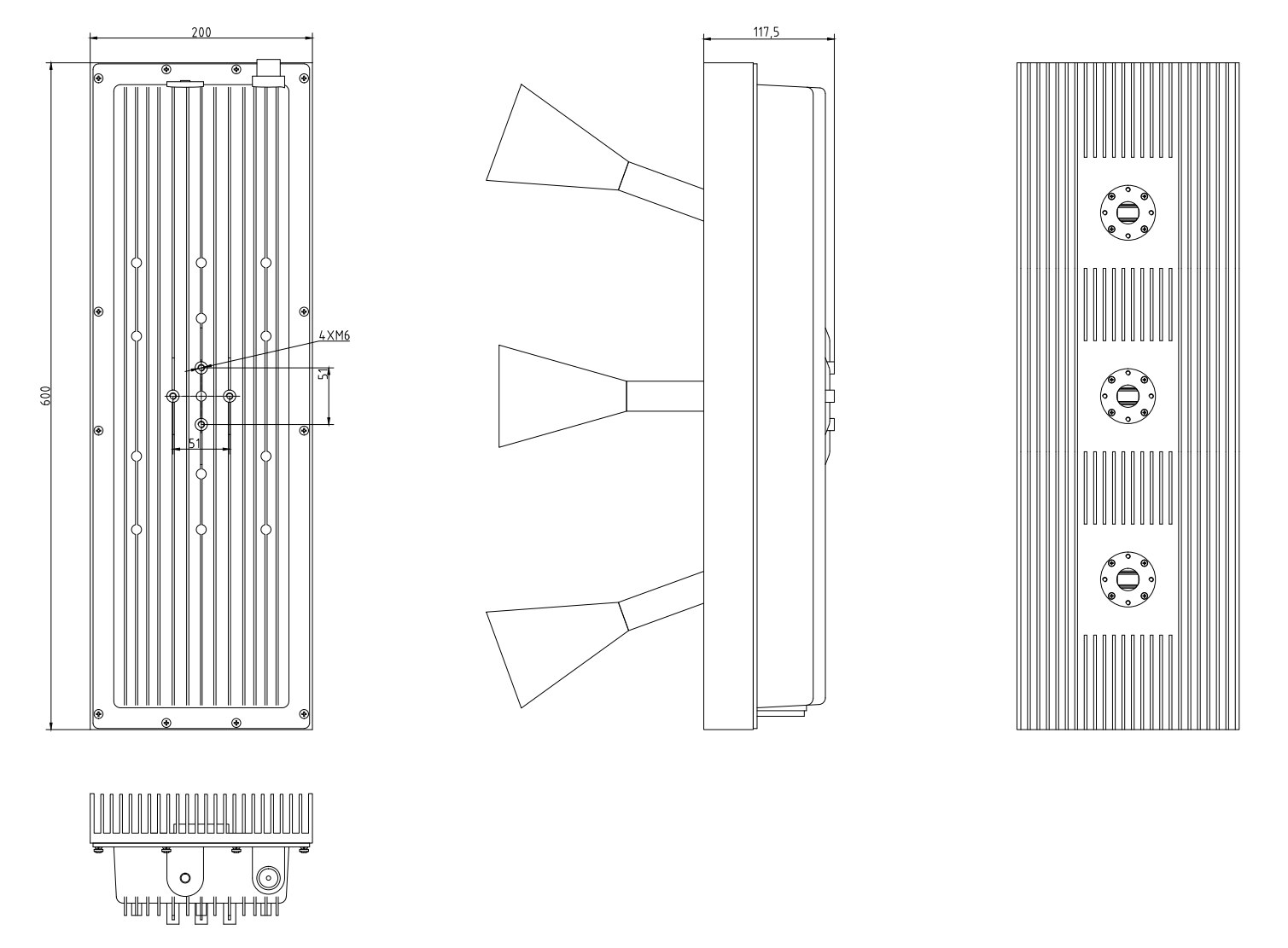

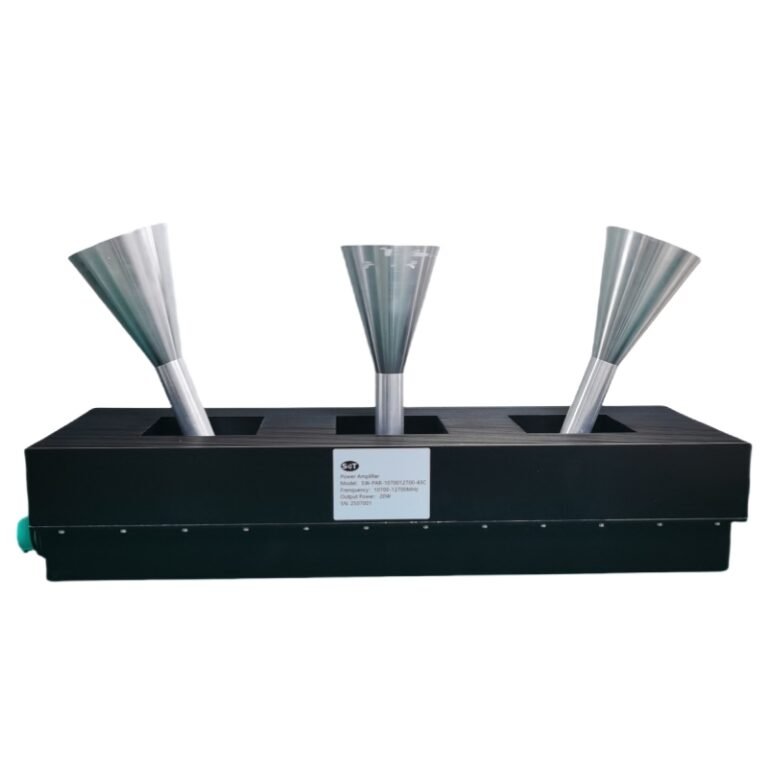

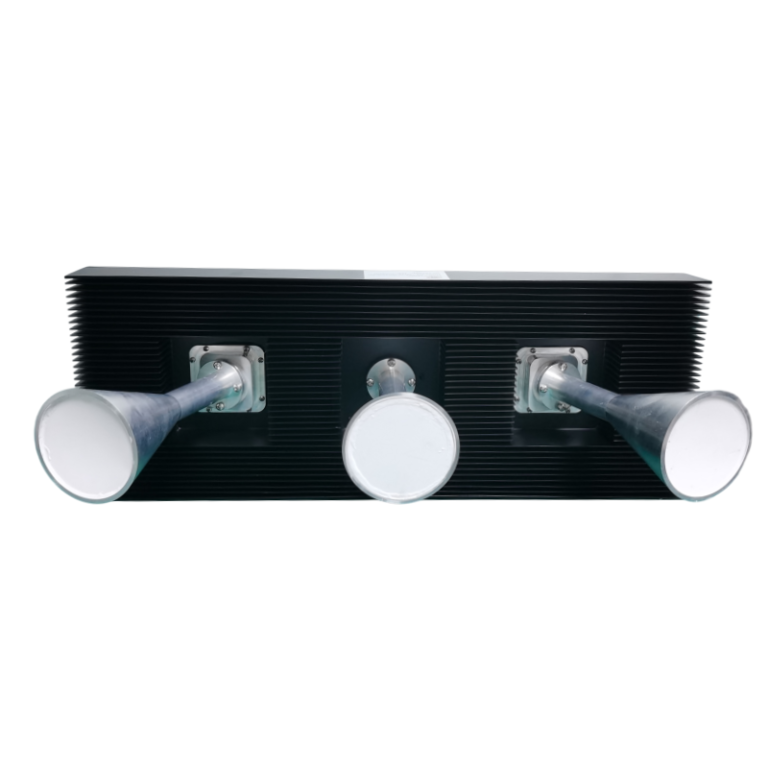

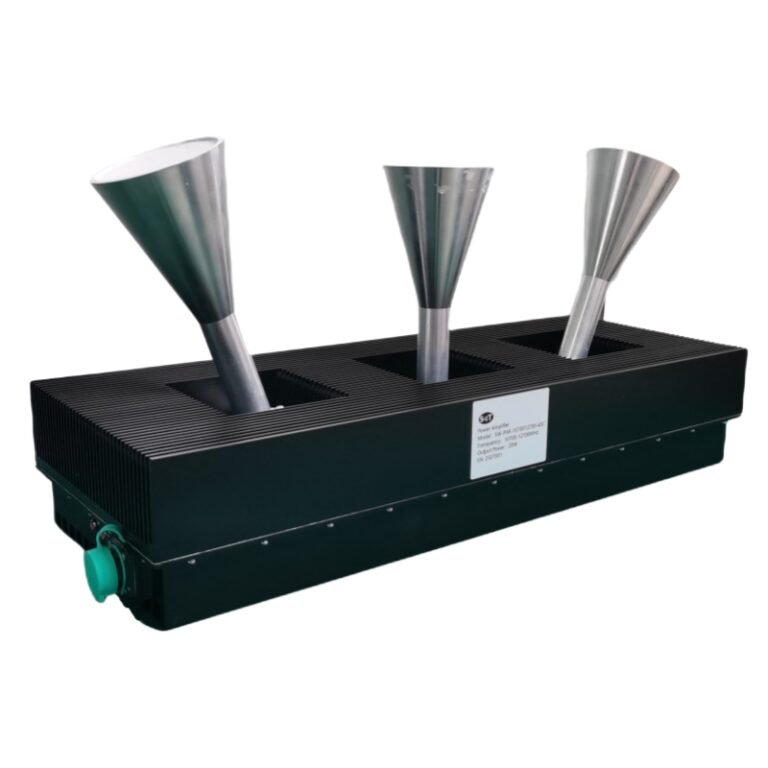

Dimensions (L x W x H) | 600 x200 x 117.5 | mm |
RF Connectors (Output) | circular waveguide | — |
Antenna polarization | Circularly polarized antenna | — |
Number of antennas | 3 | — |
Cooling | Heat dissipation fins | — |
Mounting | φ6-4 Thru Hole | — |
Weight | ≤15 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +55 | °C |
Humidity Range | 0-95 | % | |
