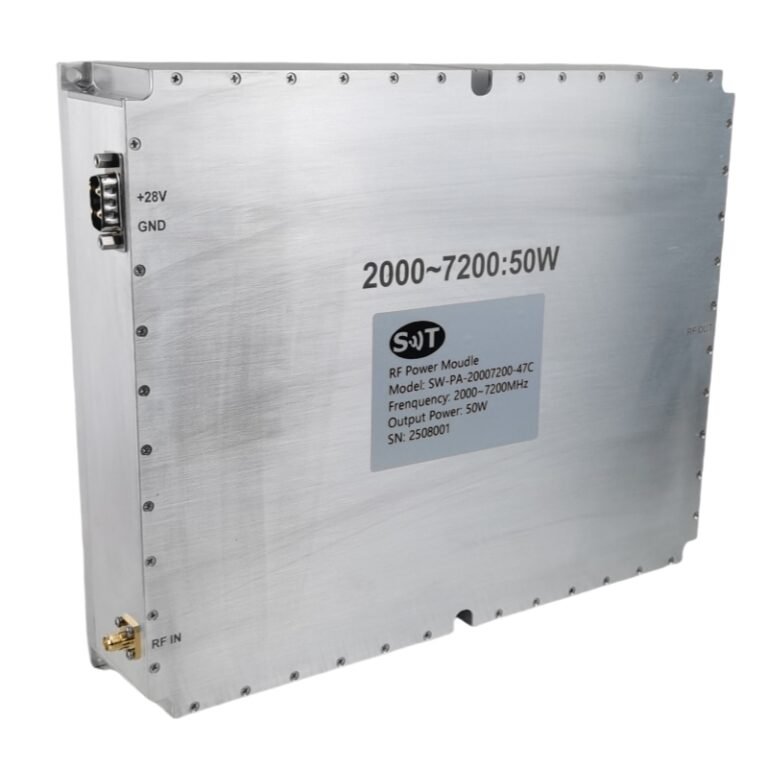

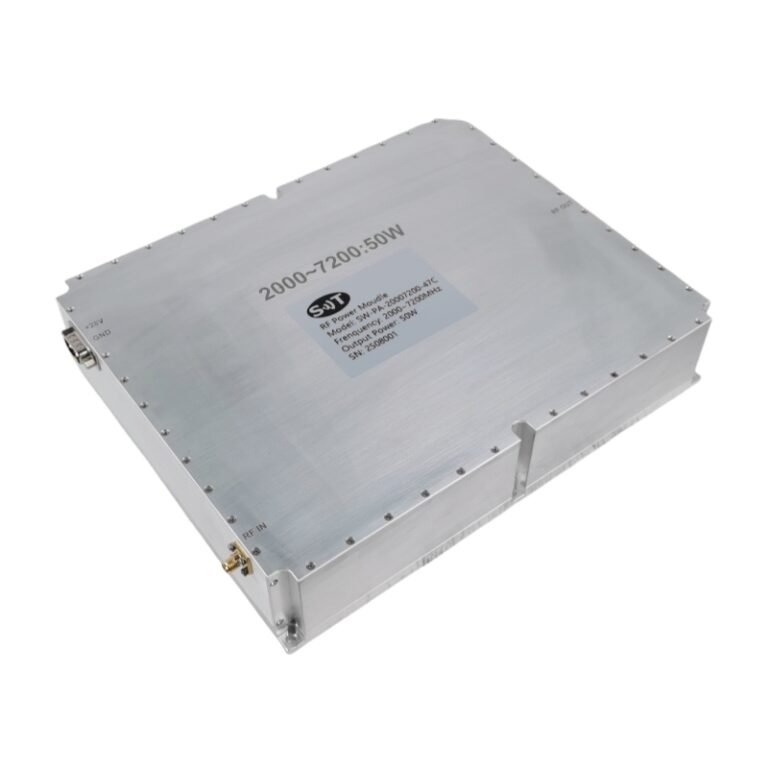

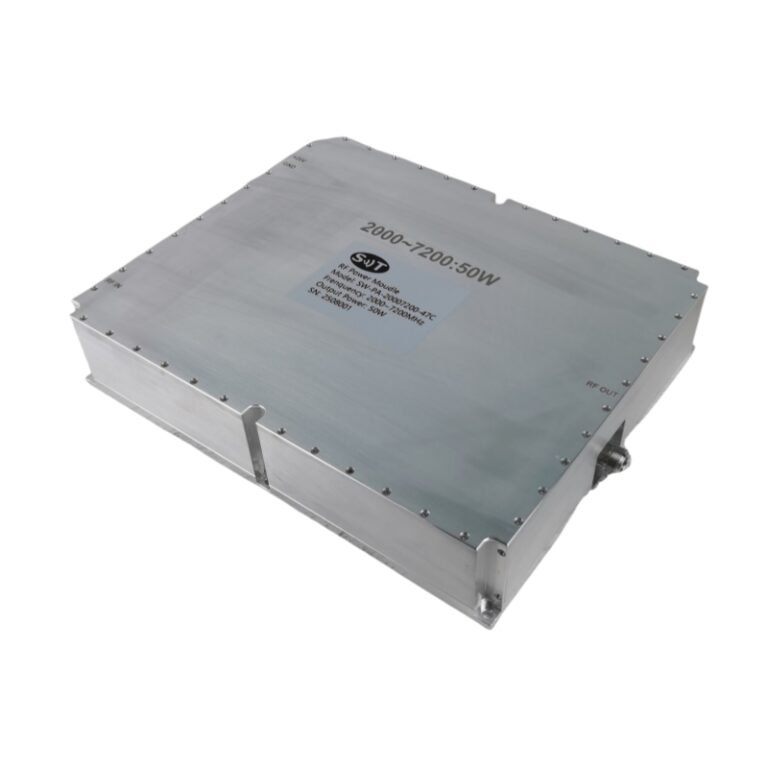

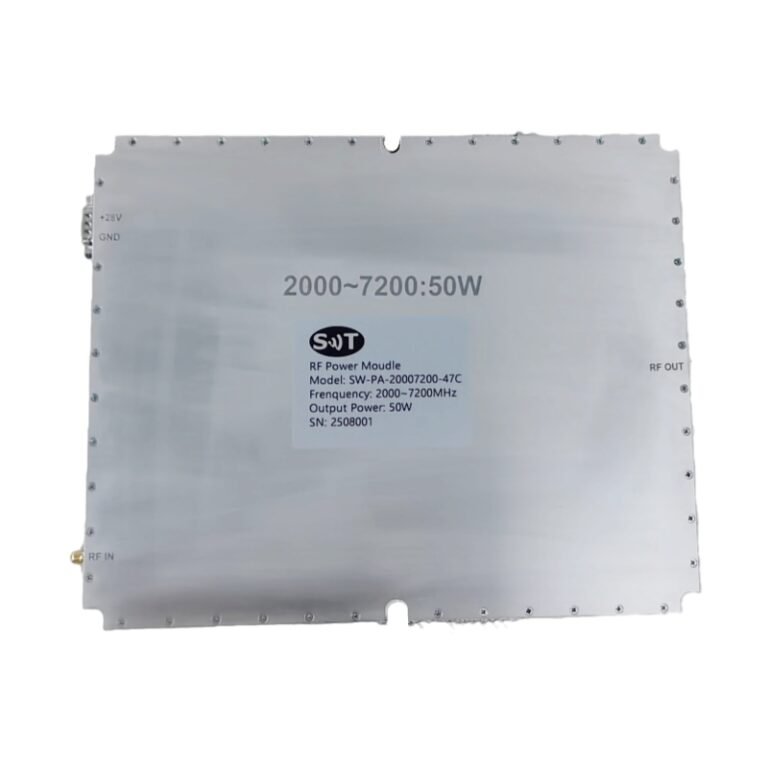

Main technical indicators
qualification | code | Min | TYP | Max | Unit |
service frequency | BW | 2 | 7.2 | GHz | |
Saturation output power | Psat | 50 | W | ||
interiorinput power | Pin | 0 | dBm | ||
Input/output impedance | I/O-IMP | 50 | Ω | ||
supply electricity | Vdc | 28 | 30 | V | |
power dissipation | Pdiss | 300 | 500 | W | |
operating temperature range | OT | -20 | +25 | +55 | ℃ |
size | DM | 250×220×40mm³ | |||
weight | WT | No more than 7kg | |||
heat radiation | Cooling | A radiator is required to dissipate heat | |||

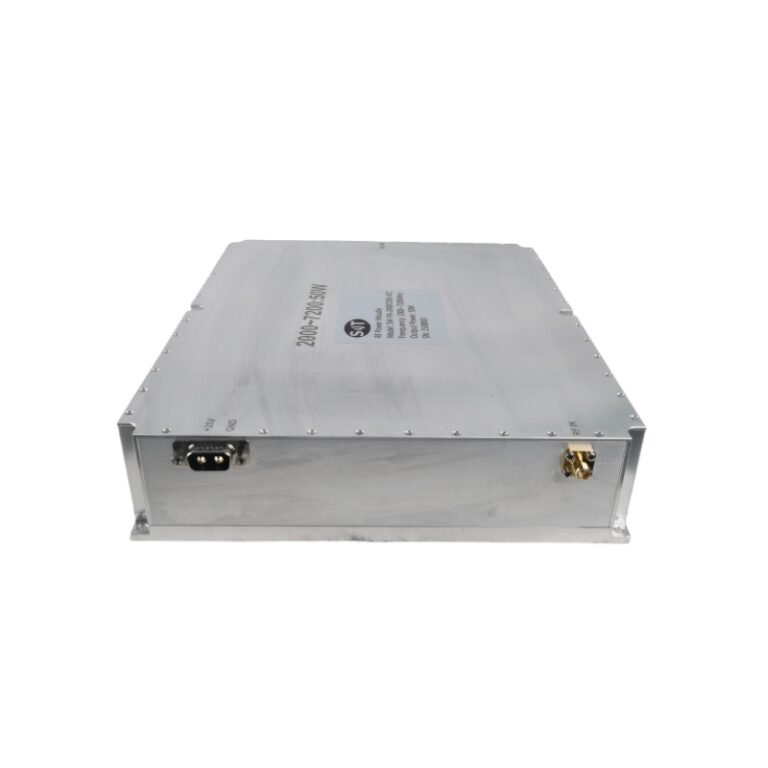

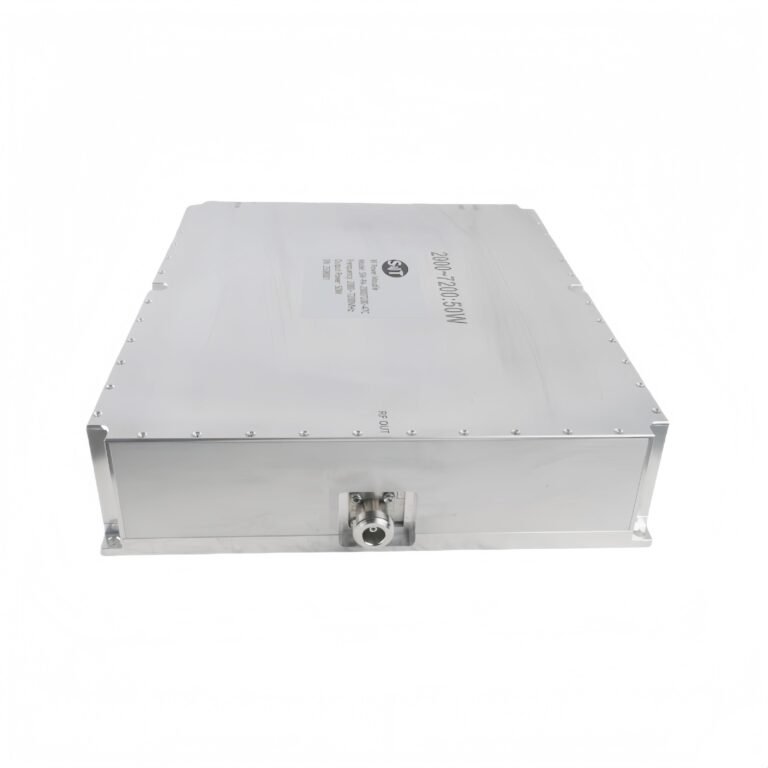

Interface definition
Interface code | interface type | interface function | remarks |
RFIN | SMA-K | Radio frequency input | |
RFOUT | N-K | Radio frequency output | |
DC | DSUB 2W2 connector | Power supply interface |
DSUB 2W2 connector definition
pin | definition | function | remarks |
A1 | VDD | +28V | Power is positive |
A2 | GND | GND | Negative power supply |

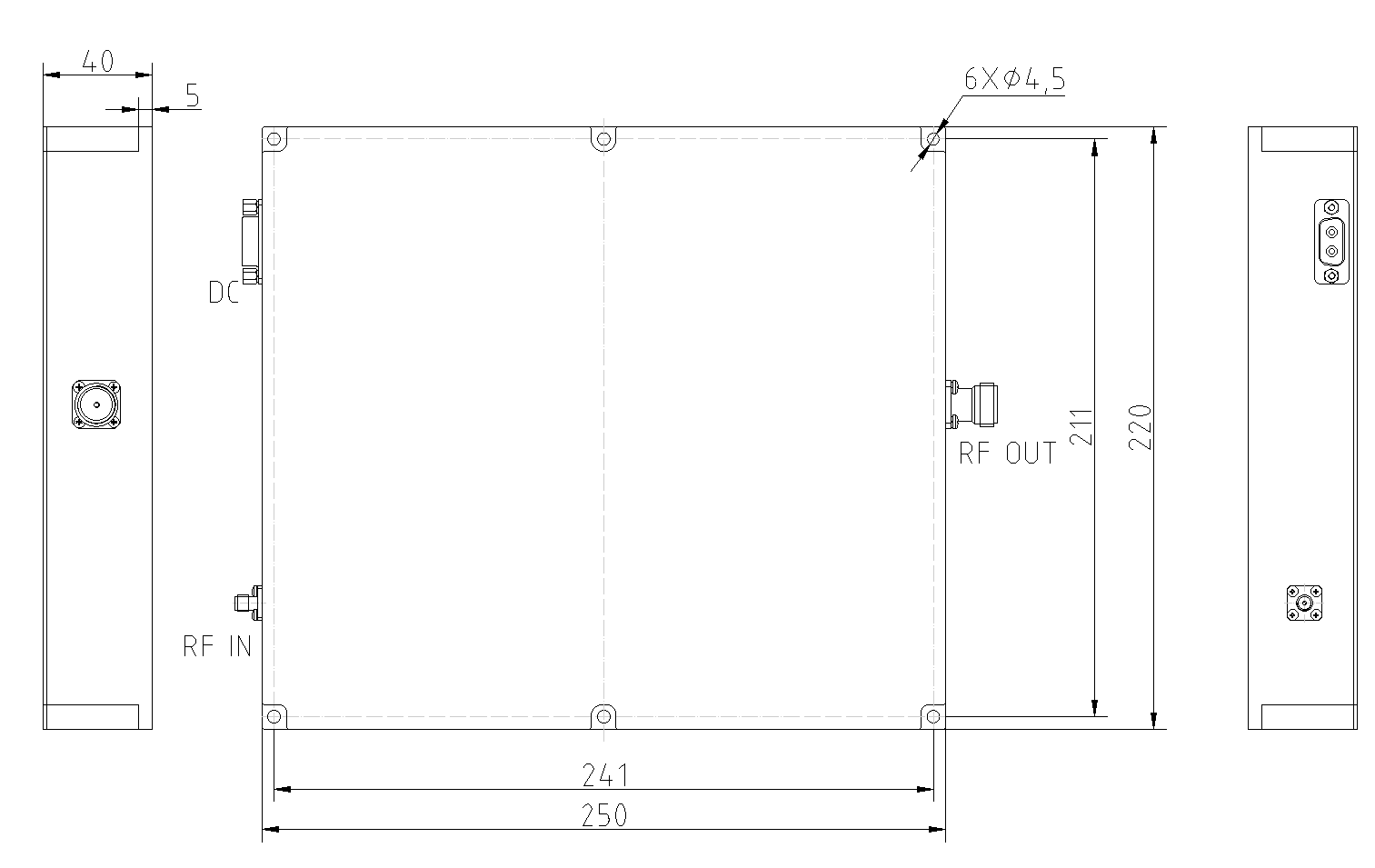

Shape and size diagram
