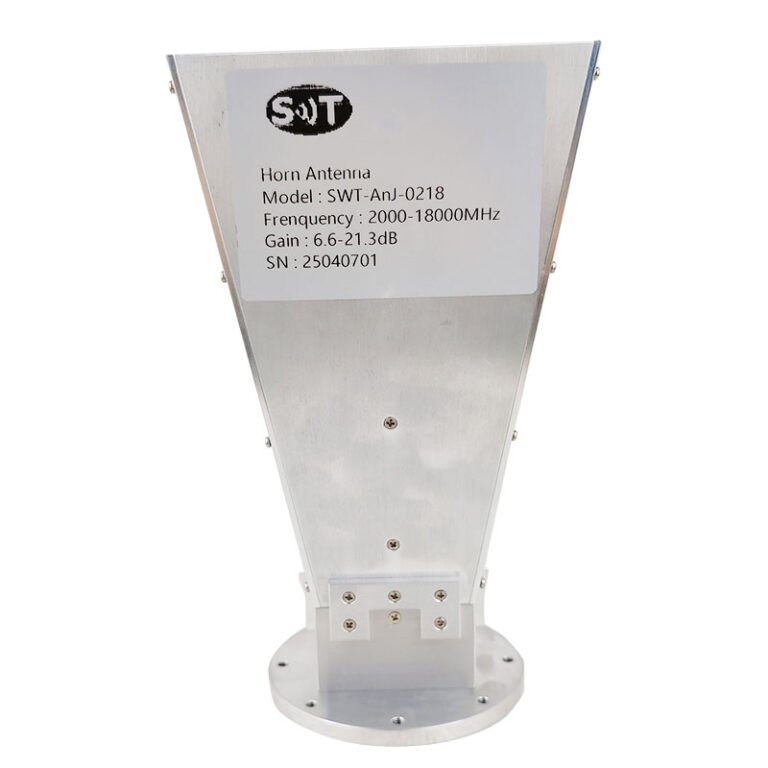

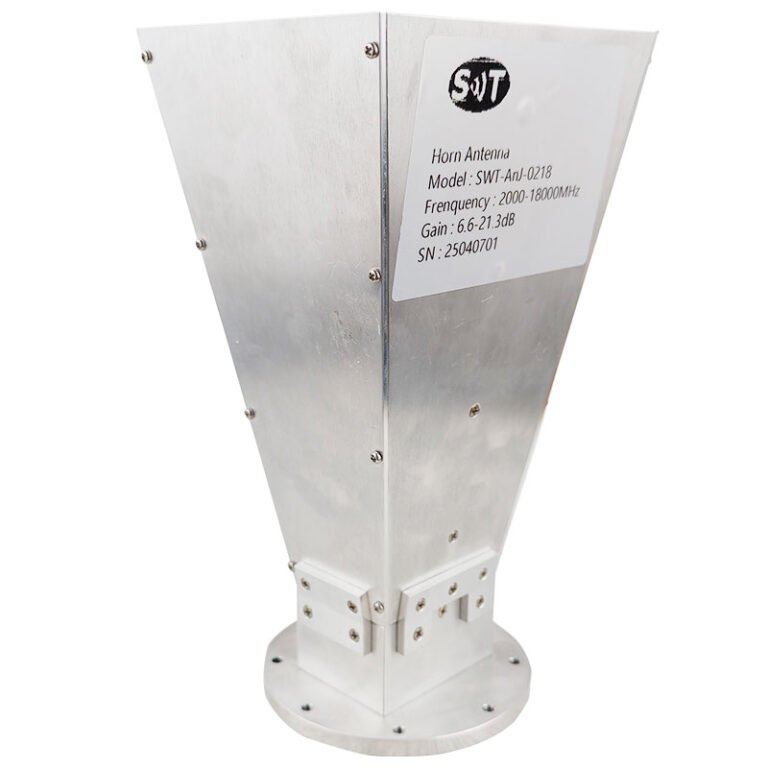

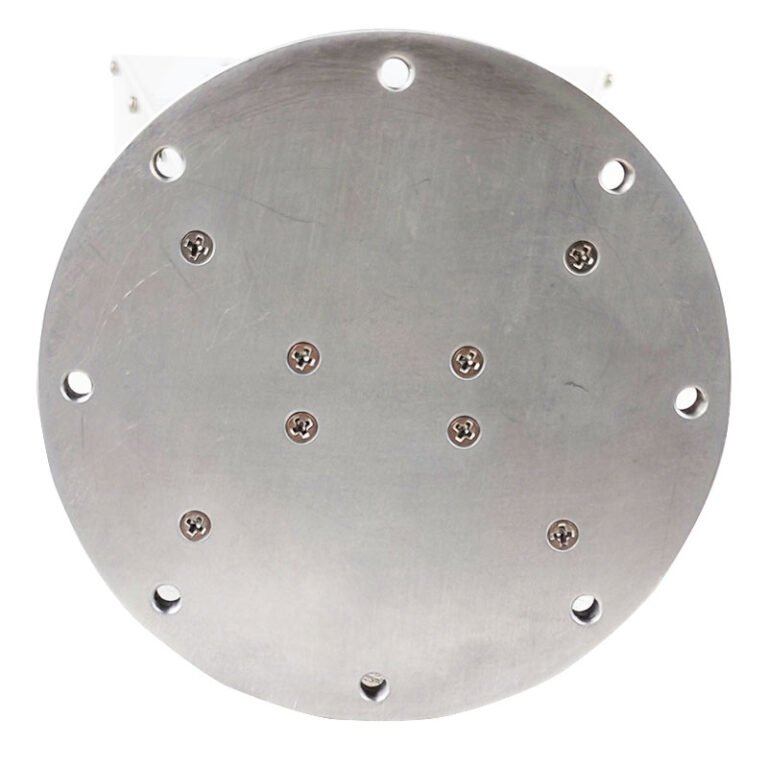

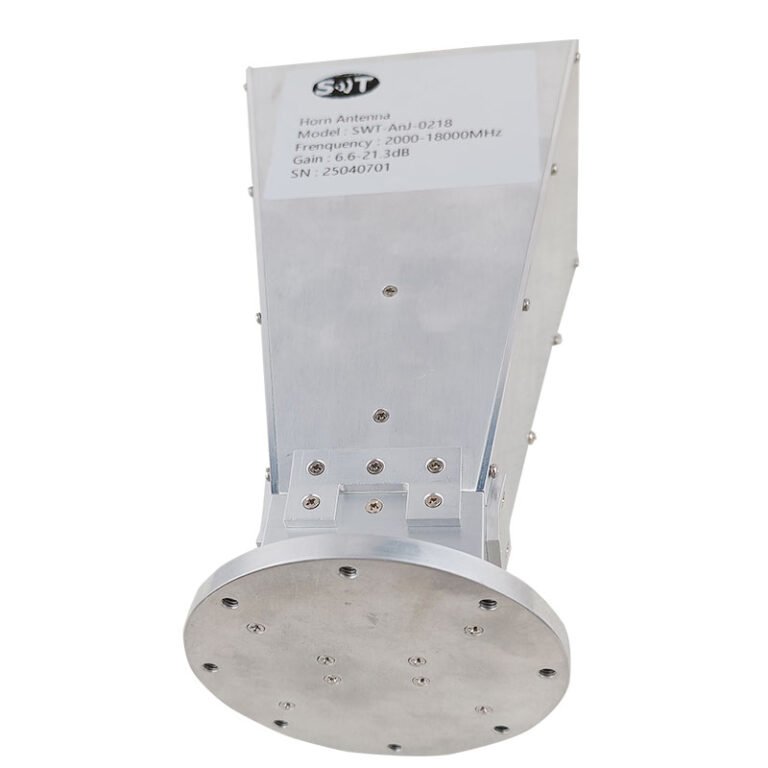

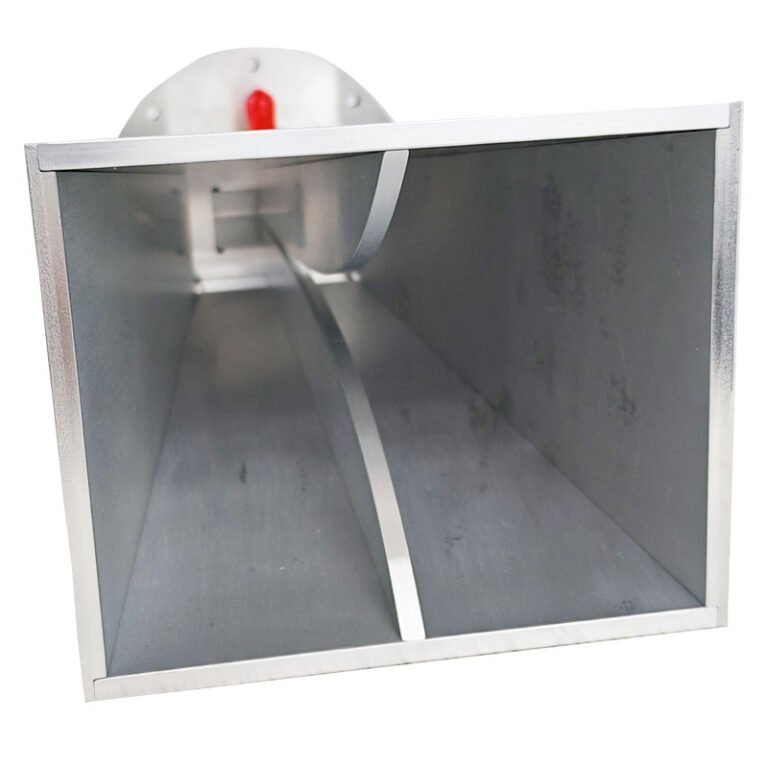

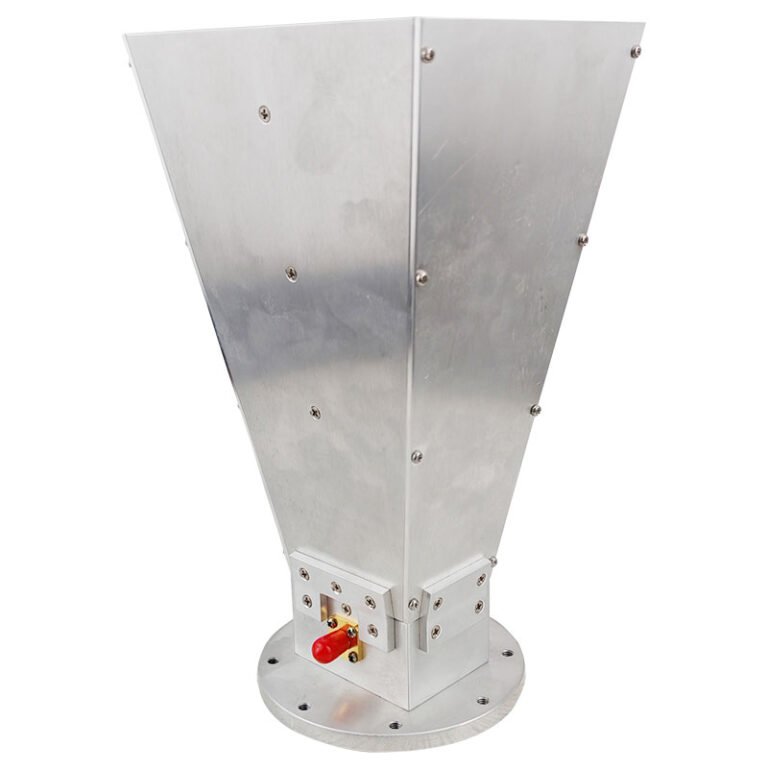

2-18GHz Single Linear Polarization Antenna
| Antenna Specifications | |
|---|---|
| Model | SH-AnJ-0218 |
| Antenna Type | Pyramidal Horn |
| Frequency Range | 2GHz-18GHz |
| VSWR | 2 (typical) |
| Polarization | Single Linear Polarization |
| Main Lobe Width | 14.3-98.7° |
| Side Lobe Suppression | -24.2dB |
| Gain | 6.6-21.3dB |
| Connector Type | SMA-50K |

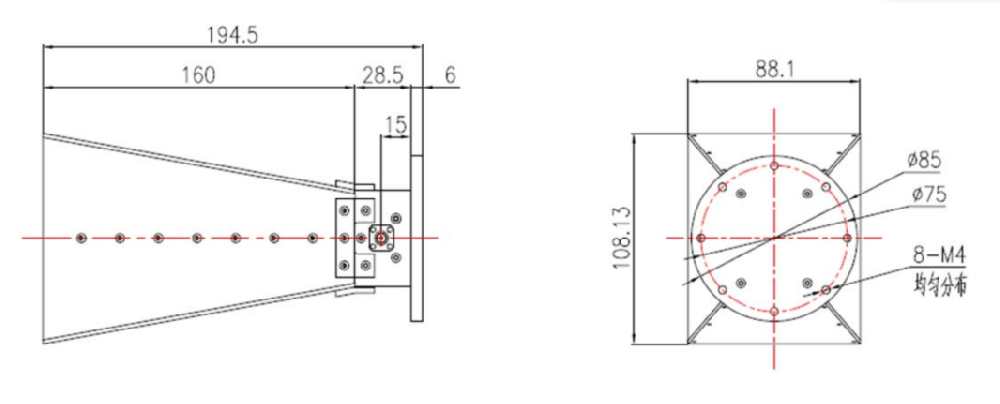

| Aperture Dimensions | 108.13×88.1mm |
| Weight | ≤0.75kg |
| Surface Treatment | Conductive Oxidation |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +80°C |
