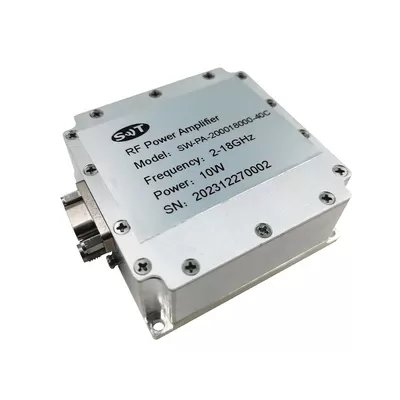

2-18GHz Ku Band Communication Module PSat 50 W Linear RF Power Amplifier With Ldmos Technology
Description
The 2-18GHz Ku Band RF Power Amplifier is designed to amplify signals within the frequency range of 2GHz to 18GHz, specifically targeting the Ku band.
Frequency Range:
This power amplifier is suitable for amplifying signals across the frequency range of 2GHz to 18GHz, falling within the Ku band.
Key Features:
Wideband Design: Capable of amplifying signals across a broad frequency spectrum from 2GHz to 18GHz, making it versatile for Ku band applications.
High Power Output: Offers high output power suitable for applications requiring strong signal intensity.
High Efficiency: Some models exhibit high energy conversion efficiency, reducing energy waste and heat generation.
Applications:
Satellite Communications: Used for signal amplification and transmission in Ku band satellite communication systems.
RF Measurements: Applied in spectrum analyzers and other RF measurement equipment for signal amplification and processing.
Radar Systems: Utilized for signal processing and amplification in radar systems, enhancing radar performance.
Technical Characteristics:
High Linearity: Ensures signal amplification accuracy and stability, suitable for demanding RF signal processing.
Multiple Interfaces and Control Methods: Supports various interfaces and control methods for ease of integration and use.
High Reliability: Designed for stability and reliability, suitable for long-term operation and high-load environments.
Use Cases:
Satellite Ground Stations: Used for signal amplification and processing in satellite ground stations.
RF Testing: Applied in various RF testing equipment and laboratory setups for signal amplification and testing.
Communication Equipment: Suitable for signal amplification and transmission in Ku band communication equipment.
In summary, the 2-18GHz Ku Band RF Power Amplifier is a versatile device suitable for a wide range of Ku band RF applications, characterized by high power output, efficiency, and reliability. It is an essential component in many communication, radar, and measurement systems.
Specification
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 2 | 18 | GHz | |
| RF INPUT | 0 | dBm | ||
| P-sat Power Output | 50 | W | ||
| Power Gain | 47 | dB | ||
| Power Gain Flatness | ±3.5 | dB | ||
| Harmonic Signals | -10 | dBc | ||
| Input VSWR | 2 | 2.5 | ||
| Operating Voltage | 28 | VDC | ||
| Currents | A | |||
| In-Out impedance | 50 | Ω | ||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | 350*300*90 | mm |
| RF Connectors (Input / Output) | SMA-KF / SMA-KF | — |
| Control Connector | D-SUB:Power on/power off control; Monitoring parameters include output power, temperature | — |
| Cooling | Exteral Heatsink Required | — |
| Weight | ≤8 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -40 | +85 | °C |
| Storage Temp. | -40 | +85 | °C |
| Amplifier Safeguard Temp. | +90 | °C | |
| Protections | With over temperature protection, input over power protection, over voltage protection, over current protection | ||
INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | —— | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| NUMBER | interface type | DESCRIPTION | |
| X1 | SMA-FK | RF IN | |
| X2 | SMA-FK | RF OUT | |
| X6 | D-SUB | DC & Control interface | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | D-SUB | |
| TRIAD CABLE PART NUMBER: | —— | |
| NUMBER | Definition | DESCRIPTION |
| 1 | VDD | 28V |
| 2 | VDD | 28V |
| 3 | GND | GND |
| 4 | GND | GND |
| 5 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 6 | Alarm | Alarm (TTL) |
| 7 | Temp monitoring | Temperature (Analog) |
| 8 | NC | NC |
| 9 | NC | NC |
