18000-26500 MHz 28 dB Linear Polarization Waveguide Interface Aluminum Material Sea Grey Paint for RF Testing Communication System

1 .1

Frequency range

18-26.5 GHz

1 .2

Standing Wave (Max. VSWR)

≤ 1.5

1.3

Antenna gain

≥28 dB

1.4

Interface

Waveguide interface

1.5

Polarization

Linear polarization

2.0

Mechanical parameters:

2.1

Outer dimensions ( height )

About 227*190 mm

2.2

External paint color

Sea grey paint

2.3

Basic Materials

Aluminum

2.4

weight

Approx.: 1Kg

3.0

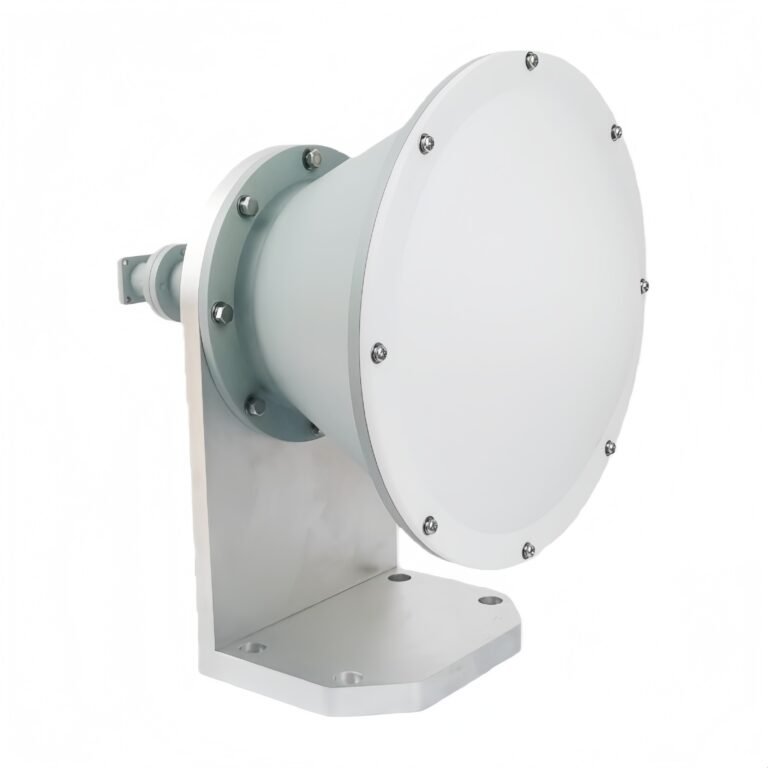

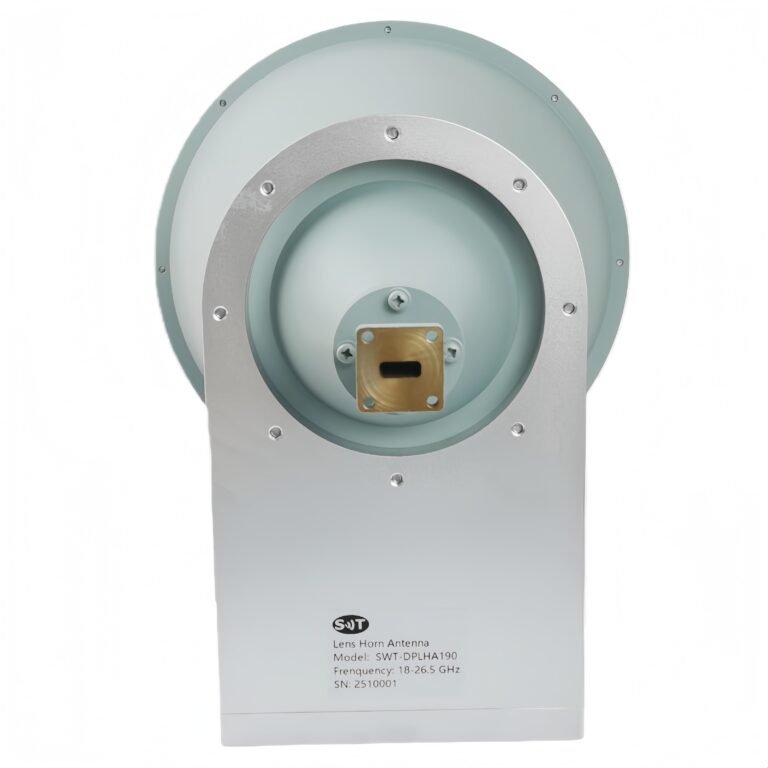

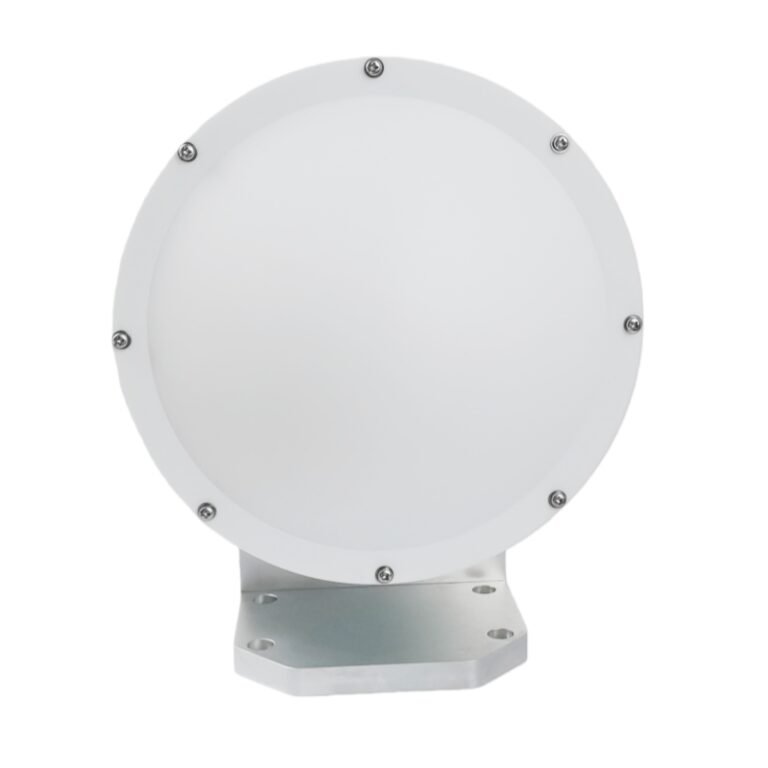

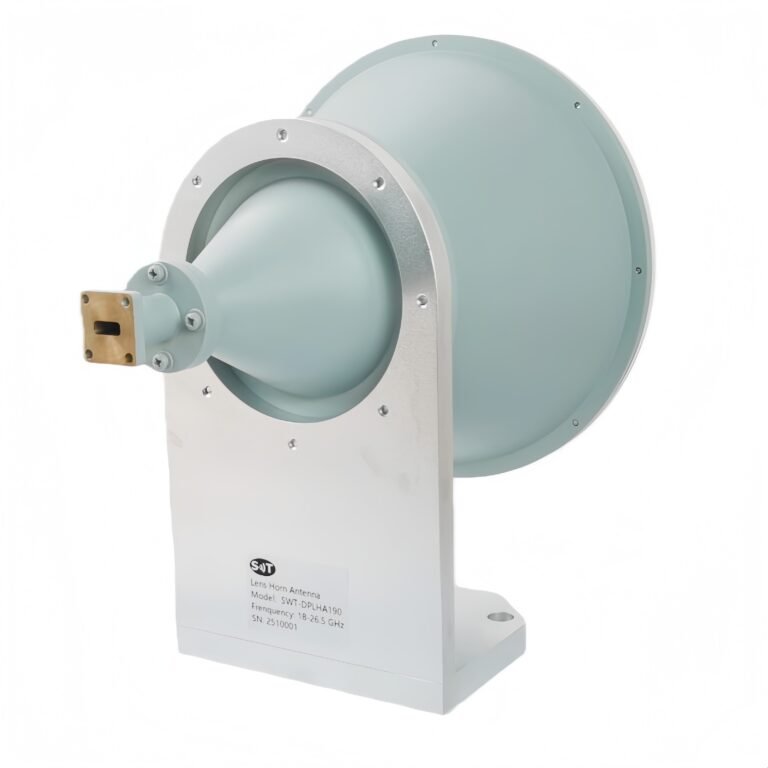

Product appearance
