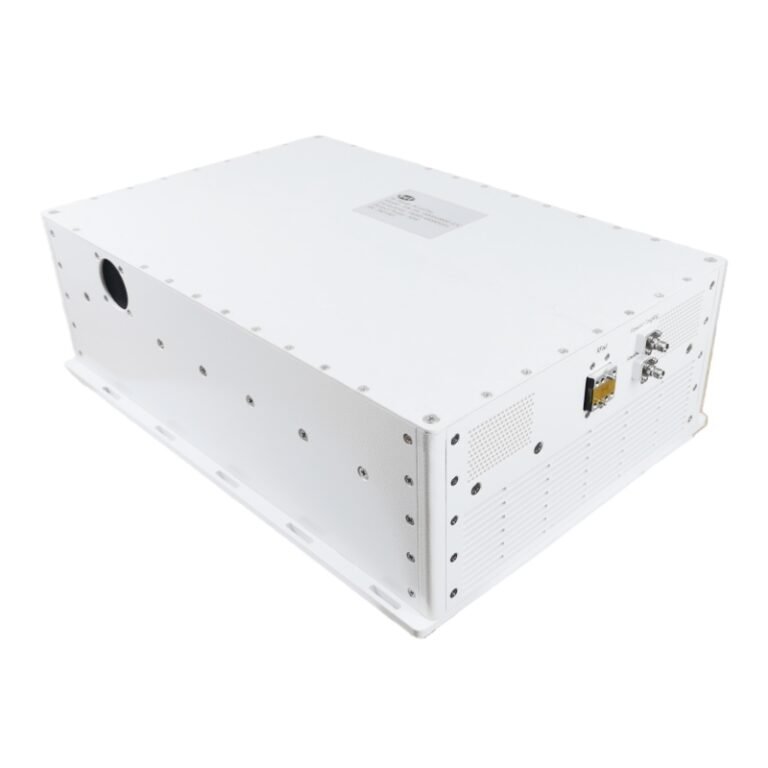

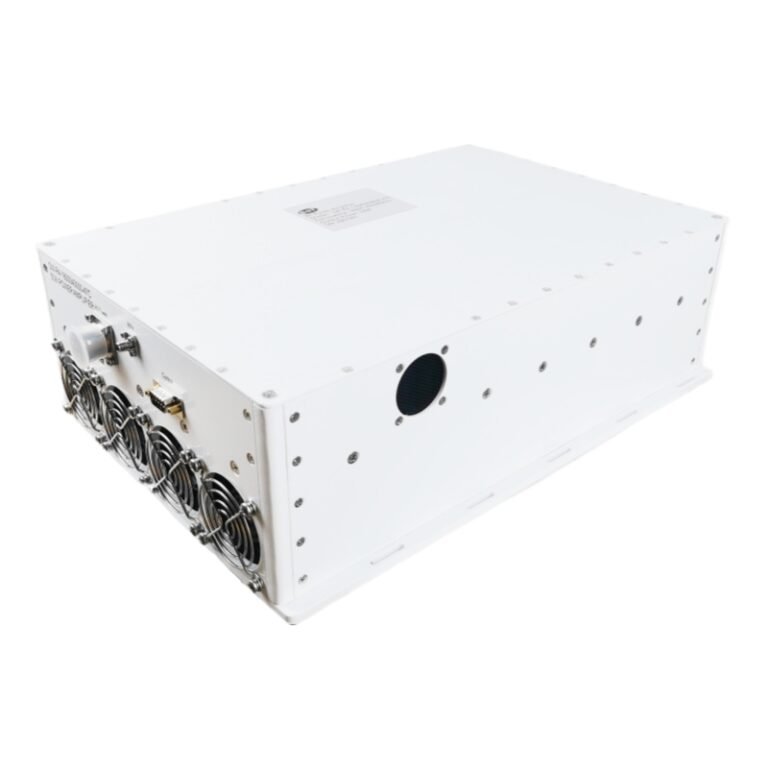

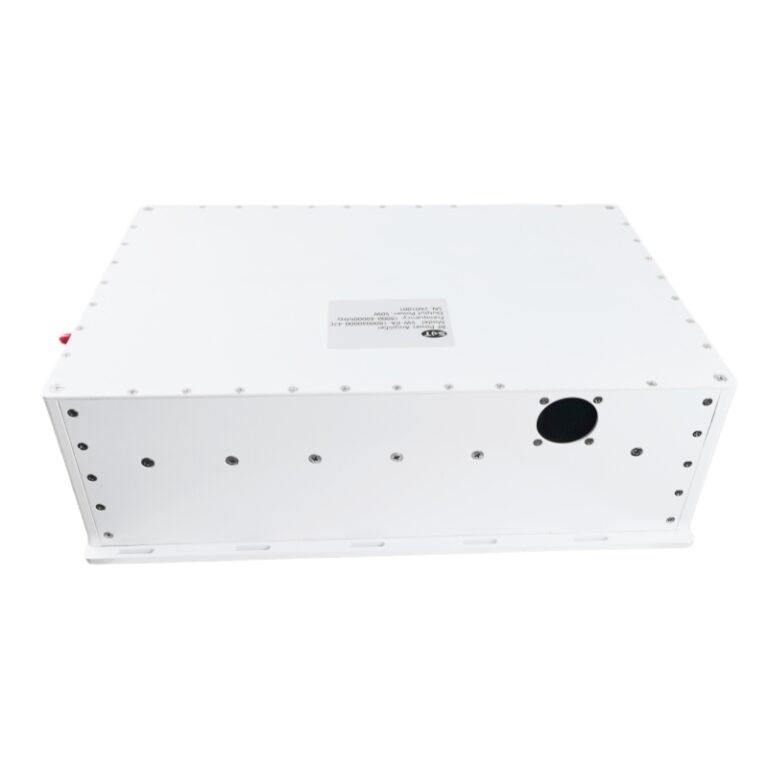

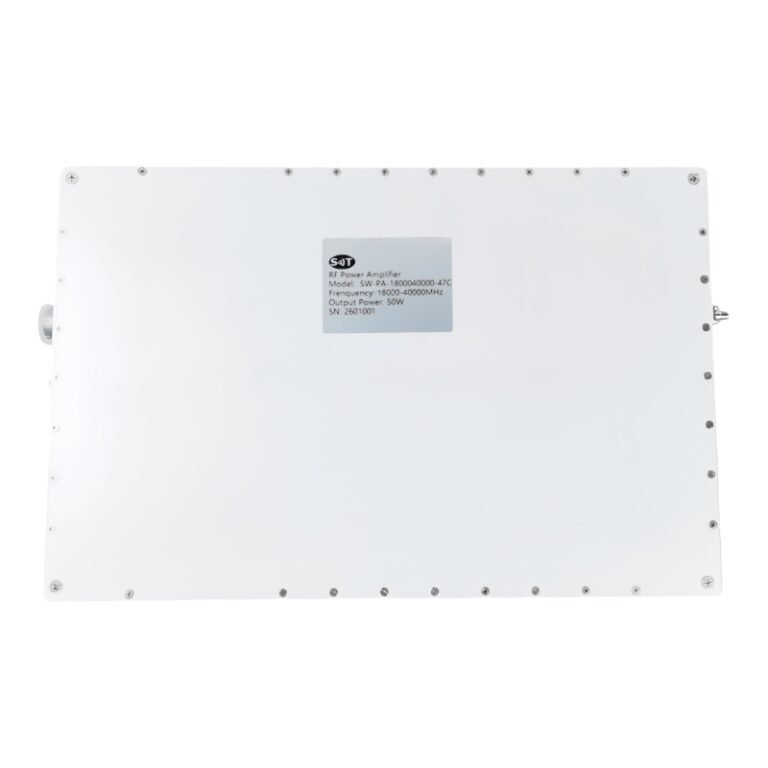

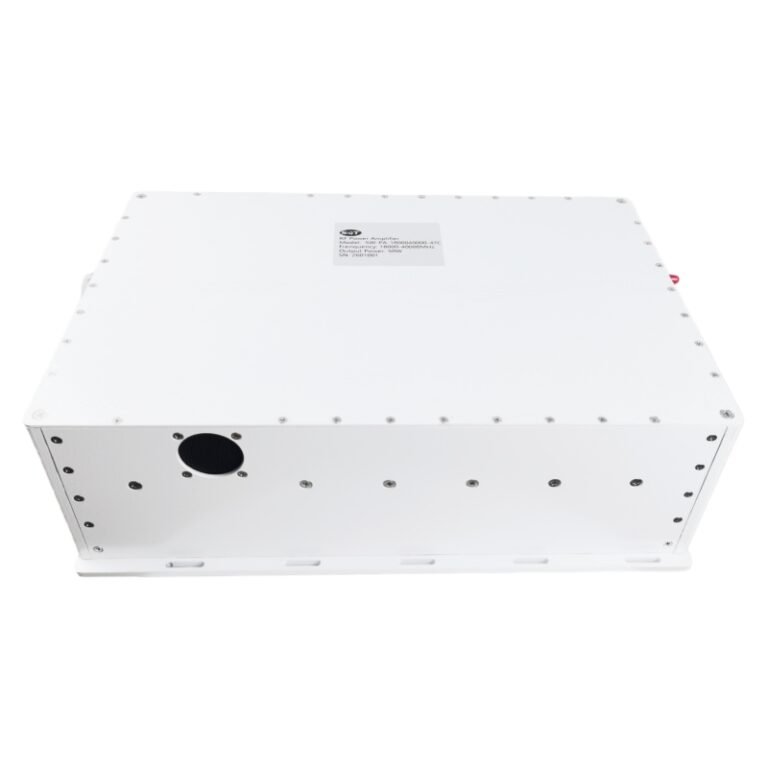

Description
The module is designed for both defense and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 18 | 40 | GHz | |
RF INPUT | 0 | dBm | ||
Power Gain | 47 | dB | ||
P-sat Output Power | 47 | dBm | ||
Power Gain Flatness | ±2 | |||
In/Out Impedance | 50 | Ω | ||
Input VSWR | 1.5 | |||
Spurious Signals | -55 | dBc | ||
Harmonic | -20 | dBc | ||
Operating Voltage | 220 | V AC | ||
Power Dissipation | 500 | 600 | W | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

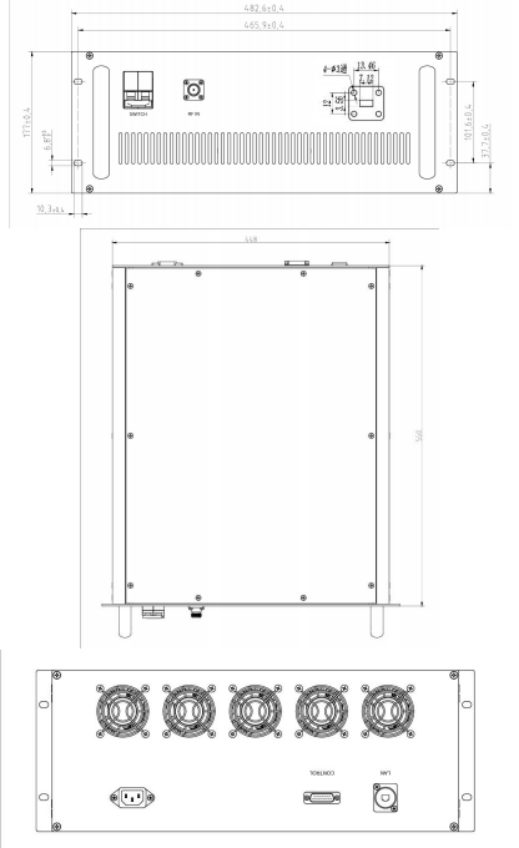

Dimensions (W x D x H) | The standard 19-inch shelf is 4U high, 482*550*178 | mm |
RF Connectors (Input / Output) | 2.92mm–KF / WRD1800C24 | — |
Control Connector | DB9 Male： Power on/power off control; Monitoring parameters include temperature | — |
AC Connectors | K20- B3 Male：Standard 220V socket | |
Cooling | Forced air cooling for heat dissipation | — |
Weight | ≤10 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +55 | °C |
Humidity Range | 0-95 | % | |
Amplifier Safeguard Temp. | +75 | °C | |
Protections | With over temperature protection, output mismatch protection | — | |

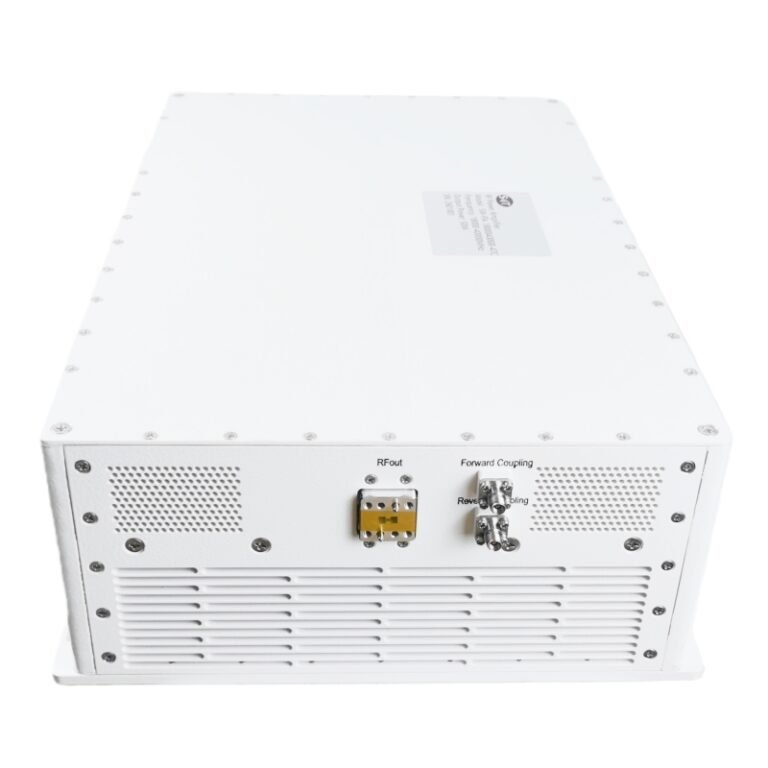

INPUT/OUTPUT panel Connector | ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |

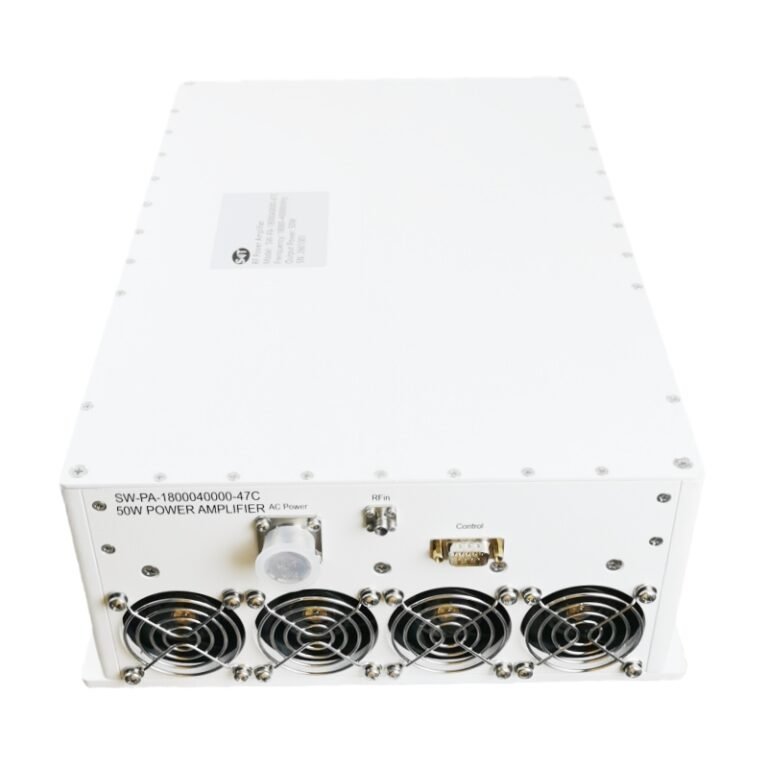

NUMBER | interface type | DESCRIPTION |
X1 | 2.92mm–KF | RF IN |
X2 | WRD1800C24 | RF OUT |
X3 | DB9 Male | Control interface |
X4 | K20-B3 Male | Standard 220V socket |
X5 | 2.92mm–KF | Forward coupling port (40dB ±1dB) |
X6 | 2.92mm–KF | Reverse coupling port (40dB ±1dB) |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | DB9 Male | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | RS485A |
PC software communicate with PA interface |
2 | RS485B | |
3 | GND | |
4-9 | NCN | NC |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | K20-B3 Male | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | L |
Standard 220V socket |
2 | N | |
3 | GND | |
