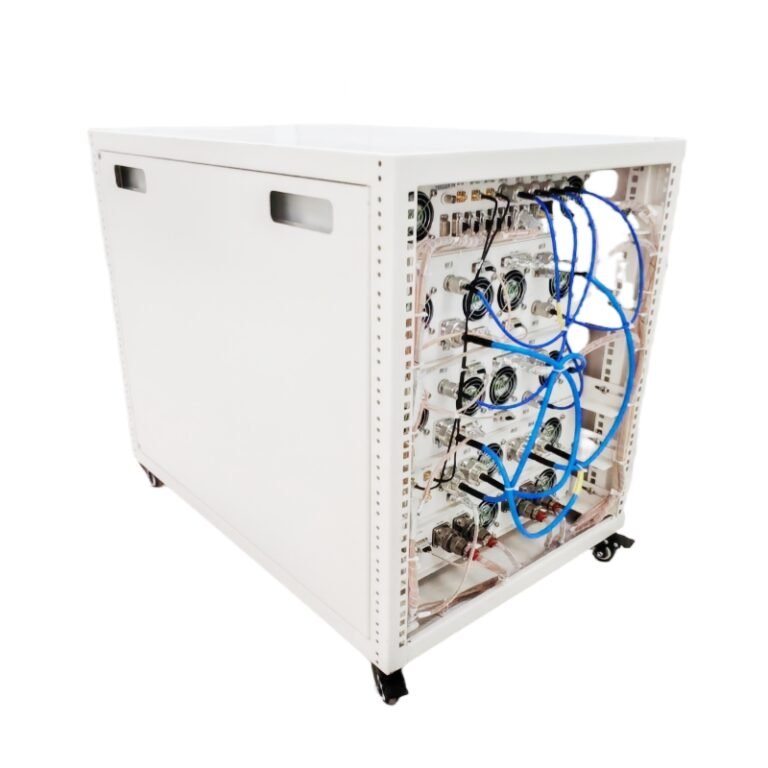

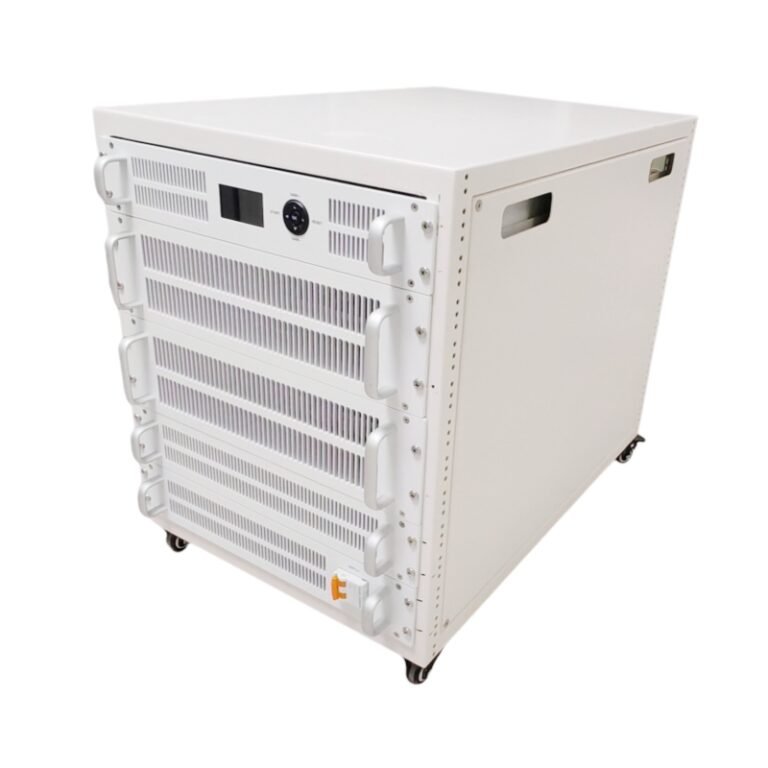

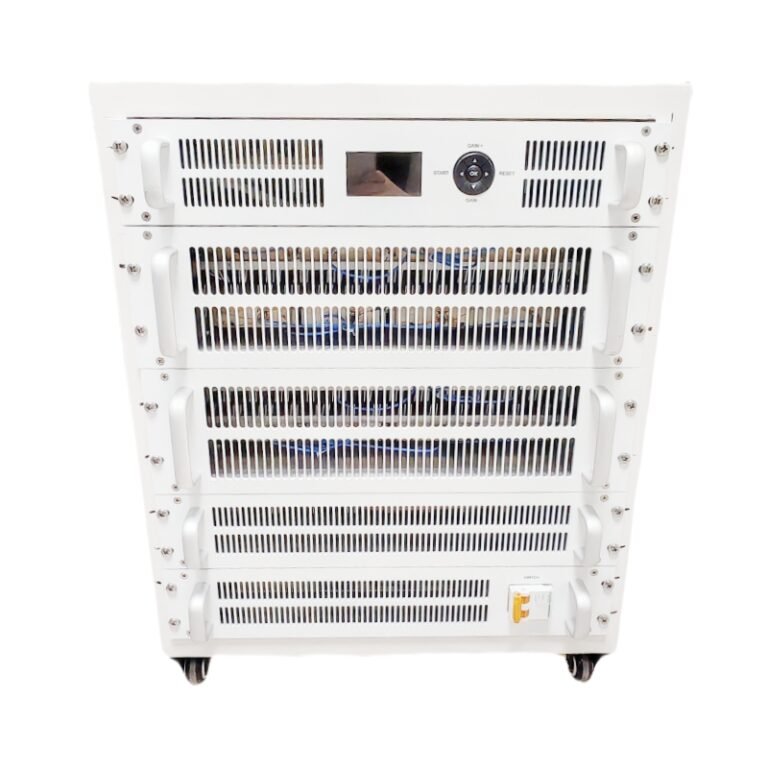

Description
The chassis is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 1200 | 1450 | MHz | |
Operating Mode | Pulsed | —— | ||
RF INPUT | 0 | dBm | ||
Power Gain | 70 | dB | ||
P-sat Output Power | 70 | dBm | ||
Power Gain Flatness | ±2 | dB | ||
Pulse width | 0.5 | 100 | us | |
Pulse period | 1000 | 6000 | us | |
Duty cycle | 10 | % | ||
Rising edge | 200 | ns | ||
Falling edge | 500 | ns | ||
Pulse top fluctuation | 2 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -20 | dBc | ||
Operating Voltage | 220 | V AC | ||
Supply Power | 5000 | W | ||
Input VSWR | 2 | |||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | The standard 19-inch shelf is 12U high, 482*600*534 | mm |
RF Connectors (Input / Output) | SMA-K / DIN (female) | — |
Control Connector | DB15： Power on/power off control; Gain Control; Monitoring parameters include output power, temperature Remote control and monitoring can be realized through RS232 |
— |
Control Connector | RJ45： Remote control and monitoring can be realized through LAN | |
Cooling | Built-in cooling system, forced air cooling | — |
Weight | ≤80 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | 0 | +45 | °C |
Humidity Range | 0-90 | % | |
Amplifier Safeguard Temp. | +80 | °C | |
Protections | With over temperature protection, input over power protection | ||
INPUT/OUTPUT panel Connector | ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | ||
NUMBER | interface type | DESCRIPTION |
X1 | SMA-K | RF IN |
X2 | DIN | RF OUT |
X3 | LCD Display | Human-computer interaction interface |
X4 | Switch | 220V AC |
X5 | RJ45 | LAN |
X6 | DB15 | Control interface |
X7 | N-FK | Forward coupling port |
X8 | N-FK | Reverse coupling port |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | DB15 | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
2 | Output Power monitoring | Output Power Detection (Output analog voltage) |
3 | Reverse Power monitoring | Reverse Power Detection (Output analog voltage) |
4 | Temp monitoring | Temp monitoring alarm (Output analog voltage) |
5 | GND | GND |
6 | RXD |
RS232 serial bus interface （TTL） |
7 | TXD | |
8 | GND | |
9-15 | NC | NC |

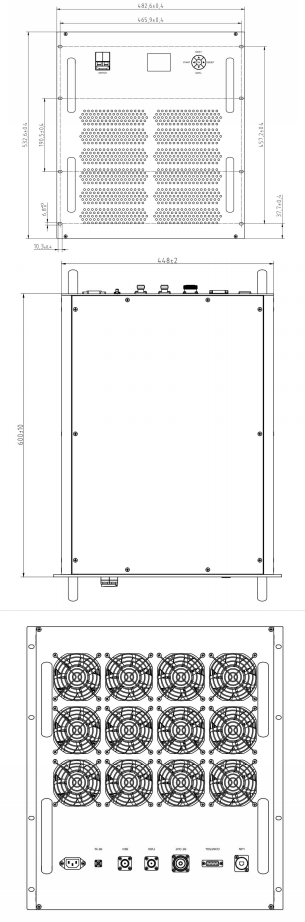

Outline Dimensional Drawing
