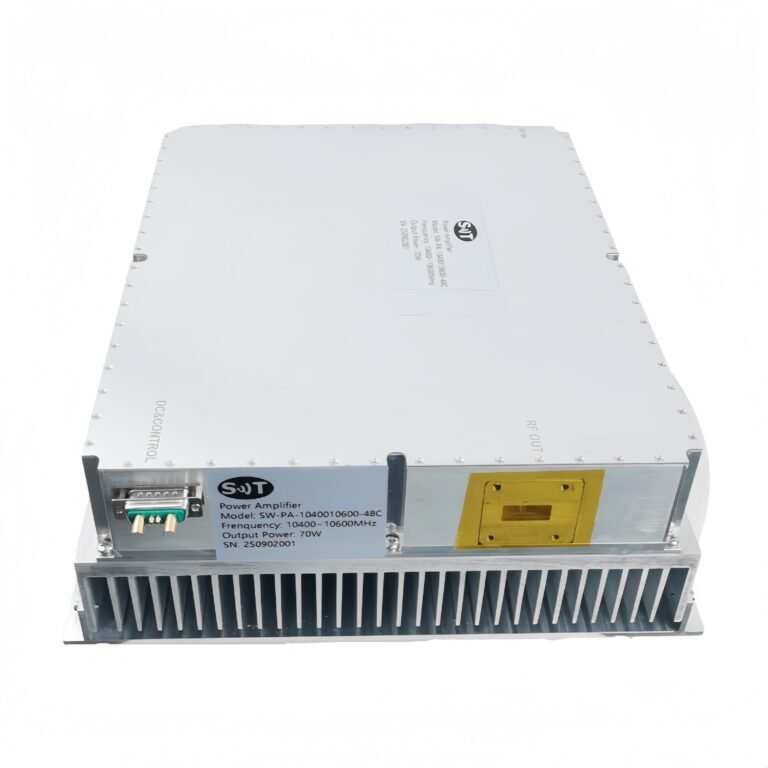

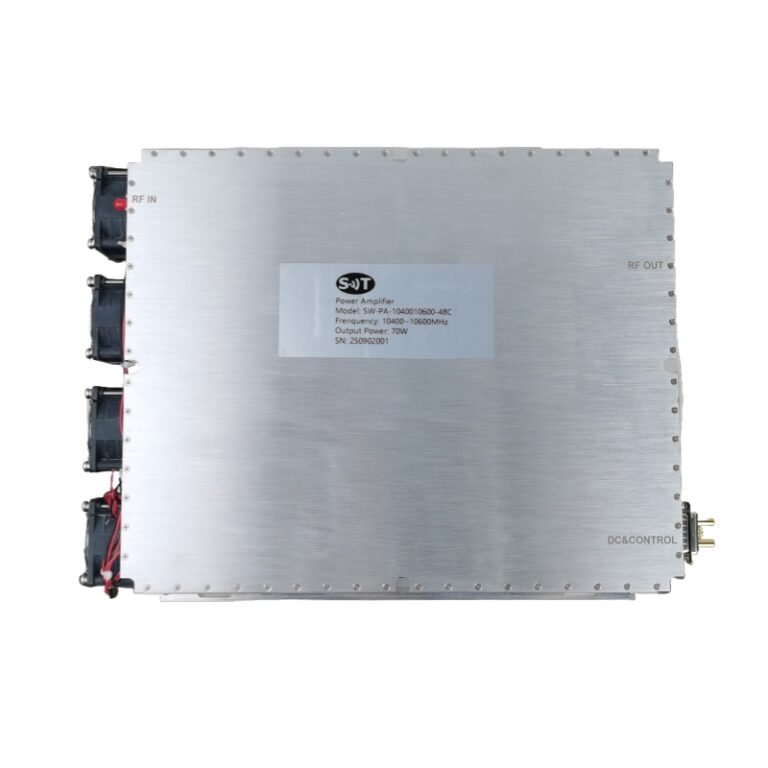

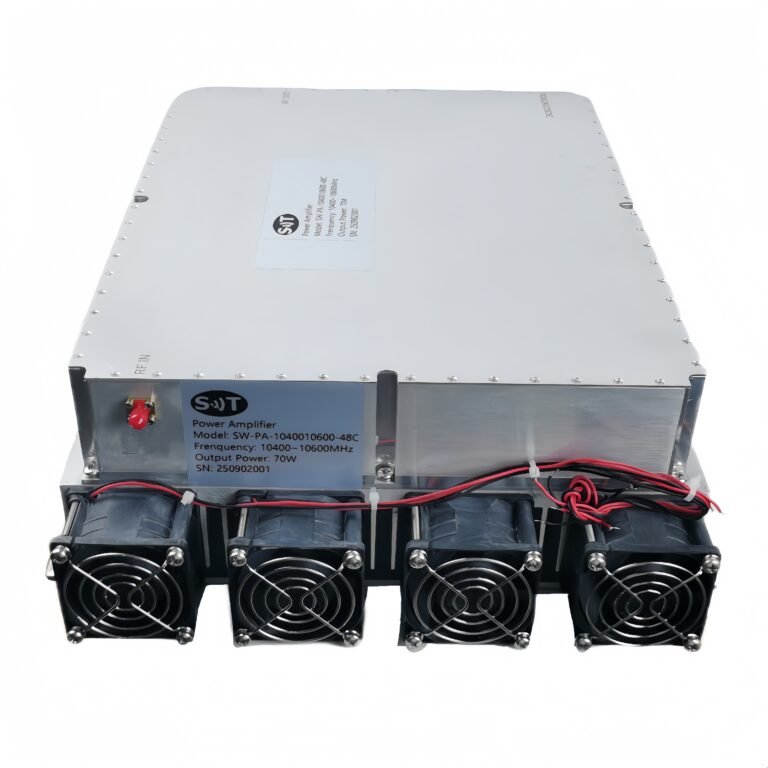

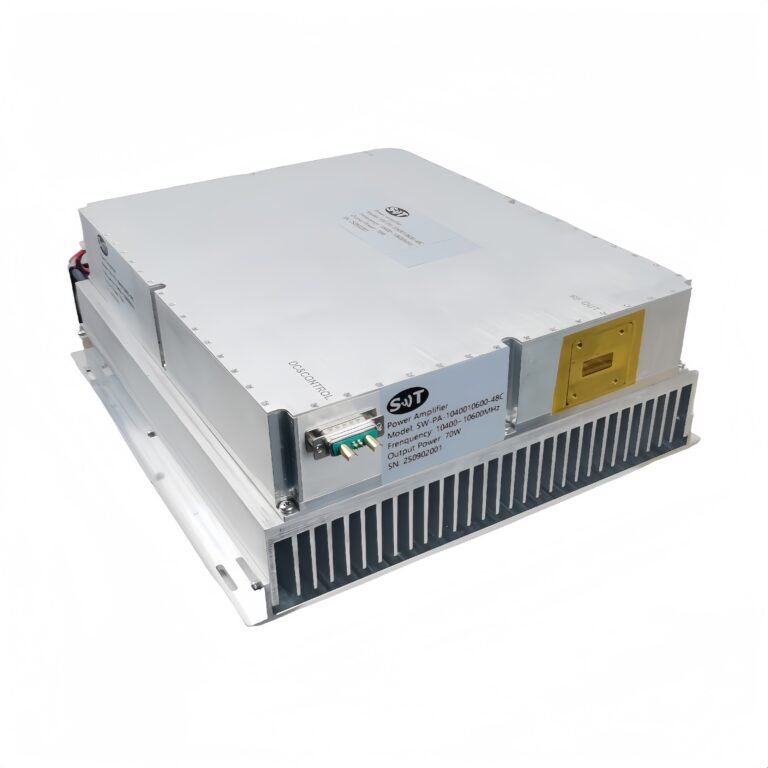

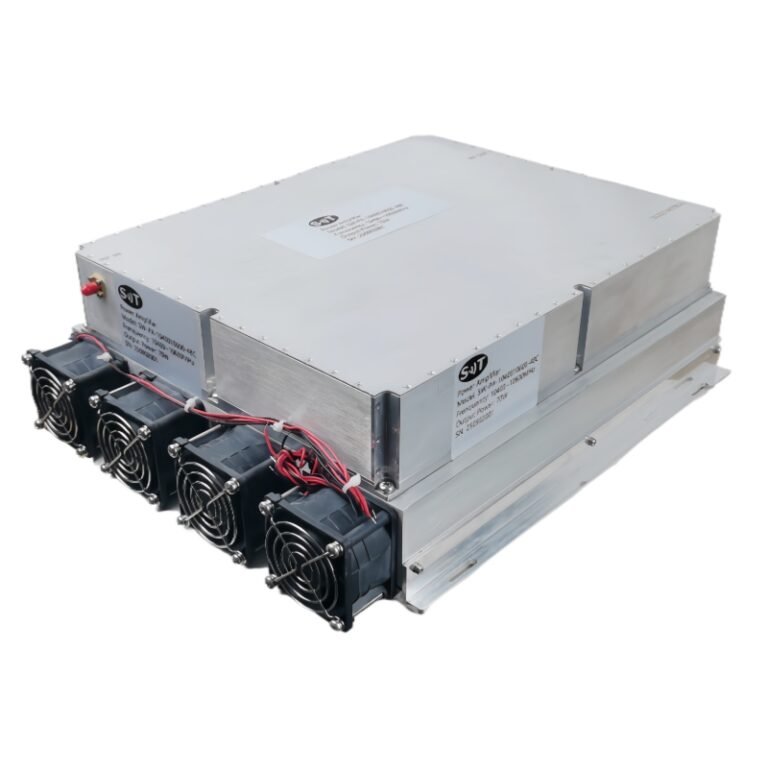

Description
The module is designed for commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28 VDC +25oC,and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 10400 | 10600 | MHz | |
RF INPUT | 0 | dBm | ||
P-sat Power Output | 46 | 48.5 | dBm | |
Power Gain | 49 | dB | ||
Power Gain Flatness | ±1 | dB | ||
Harmonic Signals | -20 | dBc | ||
Spurious emission | -55 | dBc | ||
Noise Figure | 10 | dB | ||
Gain Control range | 0 | 31.5 | dB | |
Gain Control step | 0.5 | dB | ||
Phase Control range | 0 | 354.375 | ° | |
Phase Control step | 5,625 | ° | ||
Input VSWR | 1.5 | 2 | ||
Operating Voltage | 28 | V DC | ||
Currents | 20 | A | ||
In-Out impedance | 50 | Ω | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

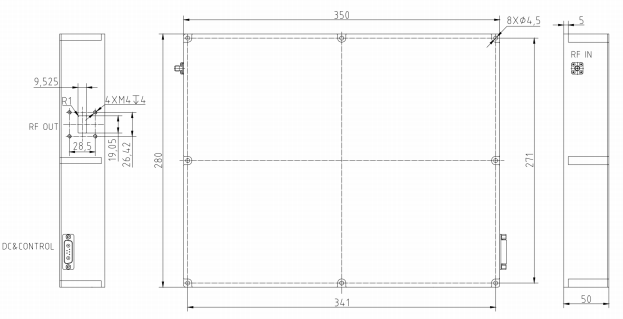

Dimensions (Lx W x H) | 350*280*120 | mm |
RF Connectors (Input / Output) | SMA– KFD/ Waveguide WR90 | — |
DC / Control Connector | D-SUB 7W2 | — |
Cooling | Consider heat dissipation with the system(TBD) | — |
Mounting | φ3-8 Thru Hole | — |
Weight | ≤10(Excluding radiator) | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -30 | +55 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 70 | °C | |
INPUT/OUTPUT PINS | ||
AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2 | |
TRIAD CABLE PART NUMBER: | —— | |
PIN NUMBER | LABEL | DESCRIPTION |
A1 | +VDC | +28V |
A2 | GND | Ground |
1 | GND | Ground |
2 | Amp Enable | Disable: TTL “Low”, Enable : TTL “High” (Low : 0~0.5V, High : 2.5~5V) |
3 | RS485A | Gain control, status reporting(Power detection and VSWR detection, temperature alarm and other states) |
4 | RS485B | |
5 | GND | |
