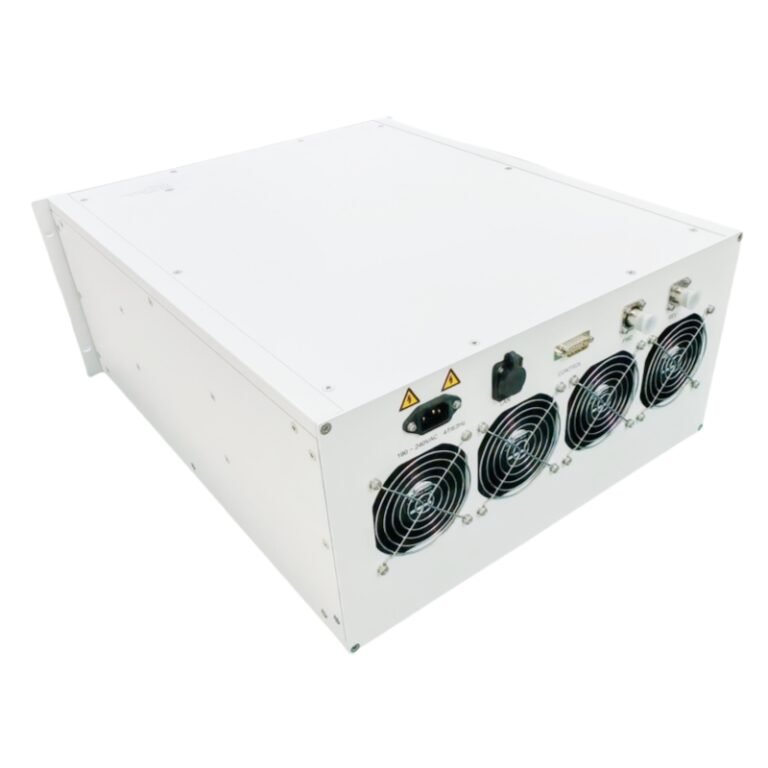

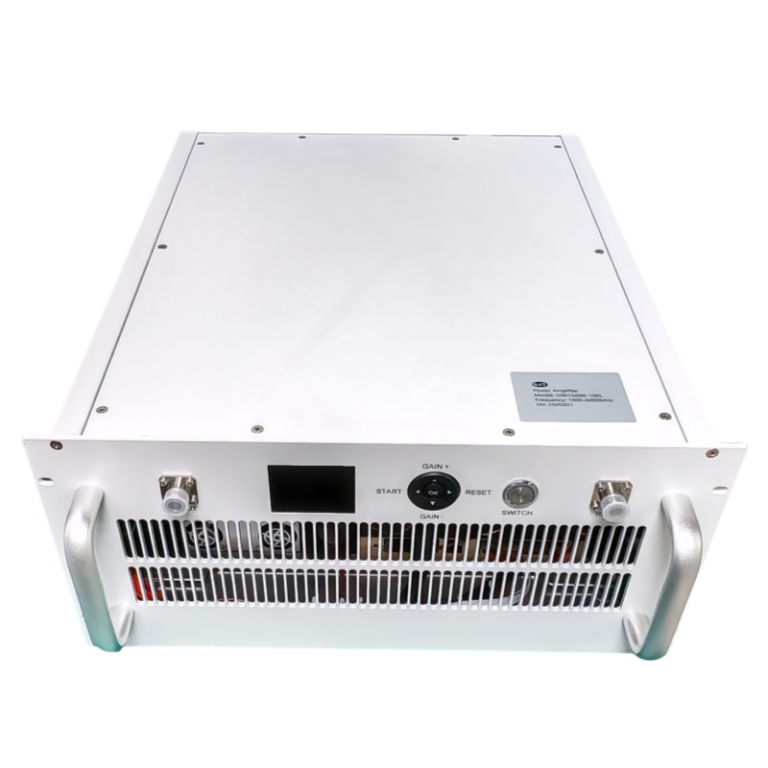

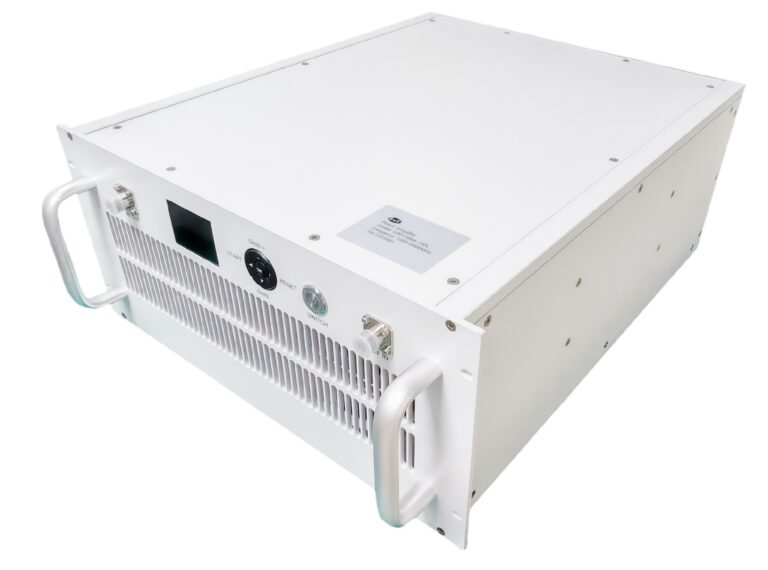

Description
The chassis is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 1000 | 6000 | MHz | |
RF INPUT | 0 | 5 | dBm | |
Power Gain | 50 | dB | ||
P-1dB Output Power | 50 | W | ||
P-sat Output Power | 100 | W | ||
Power Gain Flatness | ±4 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -65 | dBc | ||
Harmonic Signals | -15 | dBc | ||
Gain Adjust Range | 31.5 | |||
Gain Adjust Ste | 0.5 | |||
Operating Voltage | 200 | 220 | 240 | V AC |
Supply Power | 1600 | W | ||
Input VSWR | 2 | |||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

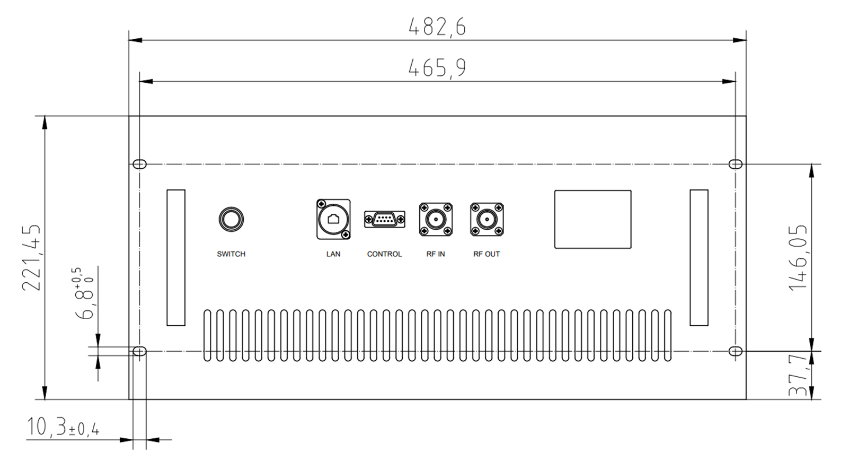

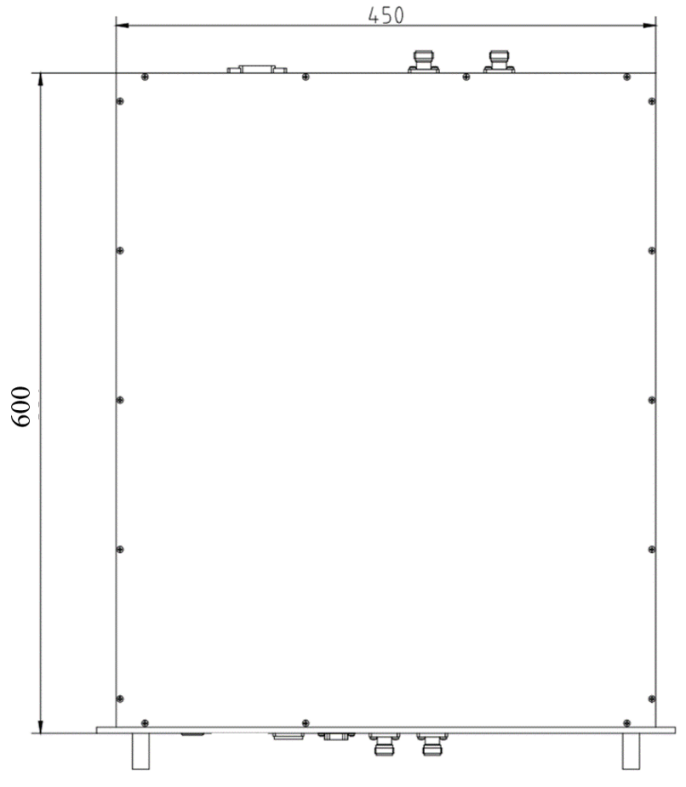

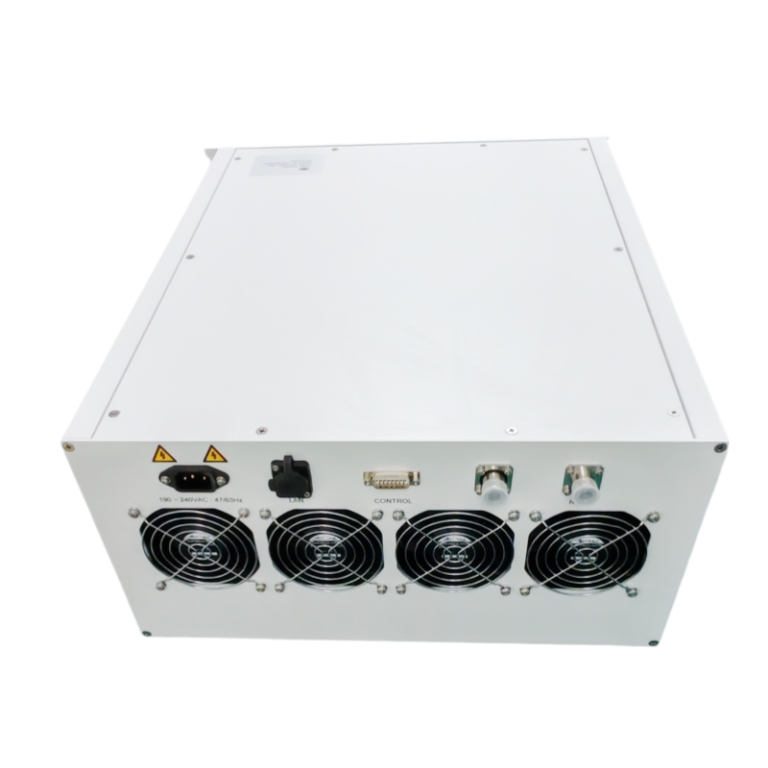

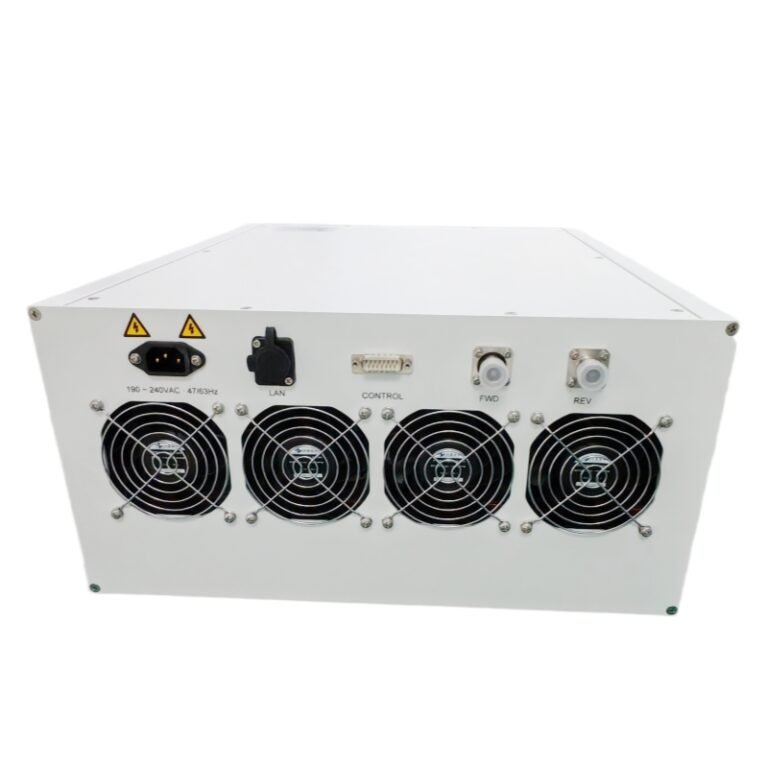

Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*600*223 | mm |
RF Connectors (Input / Output) | N-K / N-K (N female) | — |
Control Connector (Option1) | DB9：Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current | — |
Control Connector (Option2) | RJ45：Remote control and monitoring can be realized through LAN | |
Cooling | Built-in cooling system, forced air cooling | — |
Weight | ≤40 | kg |
AC Connector | Three-in-one air switch | |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -25 | +55 | °C |
Humidity Range | 0-90 | % | |
Amplifier Safeguard Temp. | +80 | °C | |
Protections | With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection | ||
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | DB9 | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
2 | Output Power monitoring | |
3 | Temp monitoring | |
4 | Voltage monitoring | |
5 | Current monitoring | |
6 | RXD | RS232 serial bus interface, PA gain adjustment |
7 | TXD | |
8 | GND | |
9 | NC | NC |
