Description

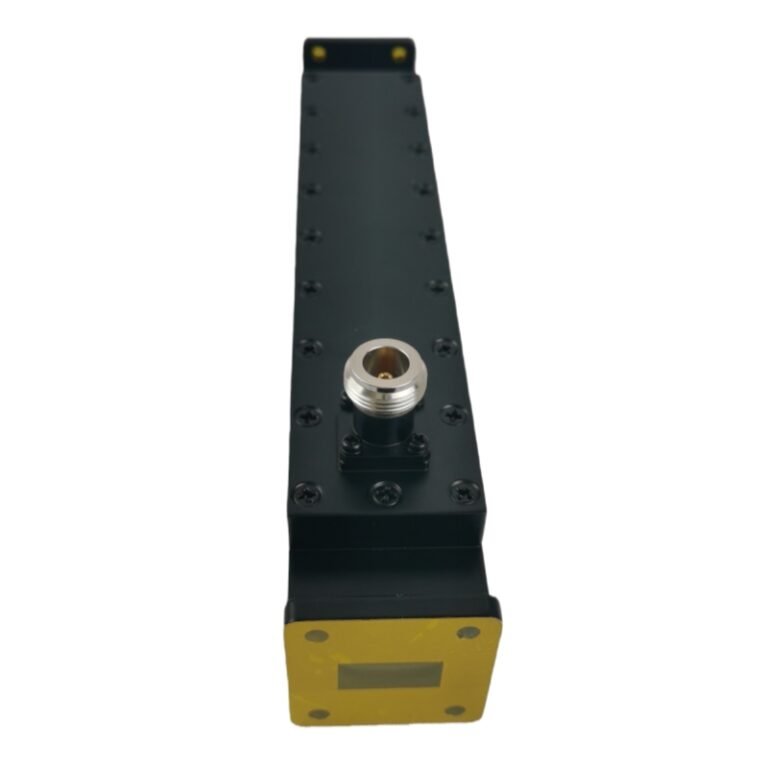

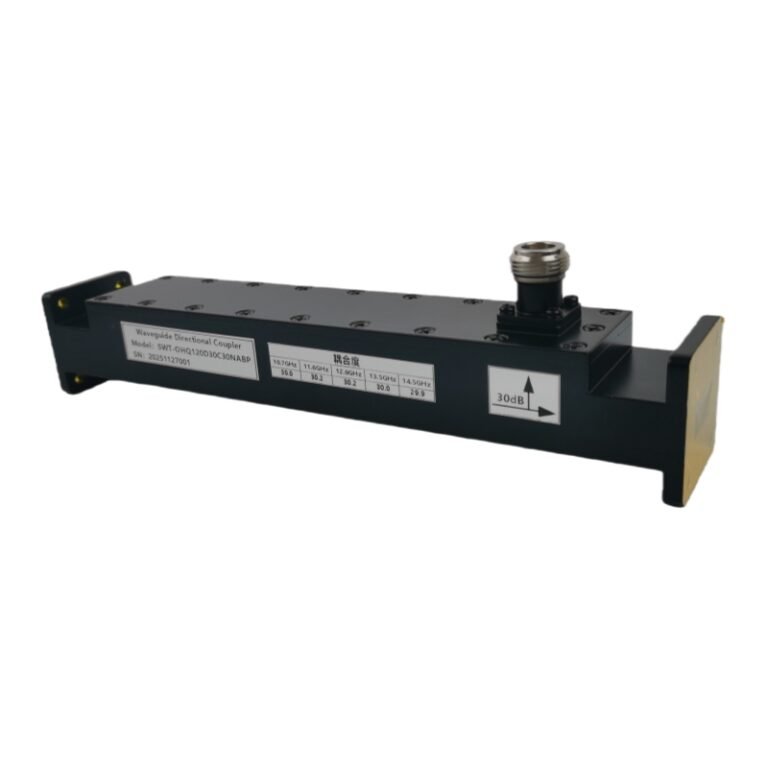

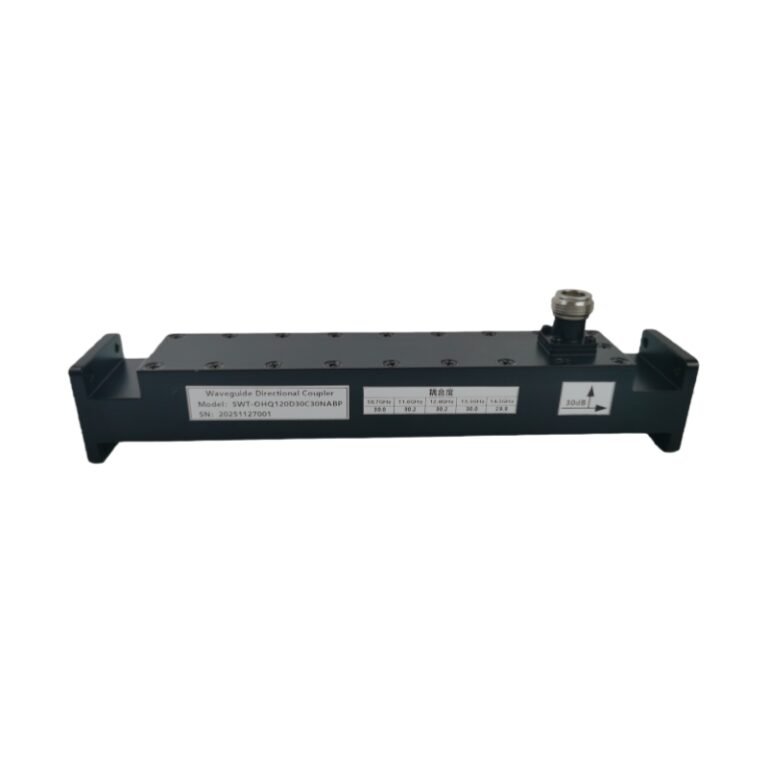

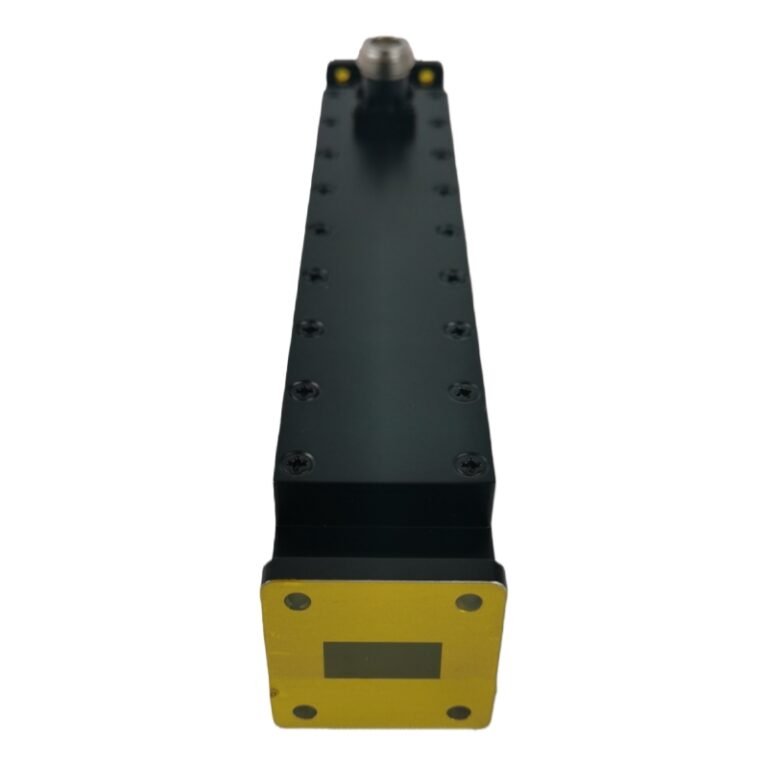

High-performance broadband directional coupler designed for microwave and RF systems. Features a frequency range of 10.7–14.5 GHz, low VSWR (≤1.1 main, ≤1.3 auxiliary),
high directivity (≥30 dB), and robust aluminum construction with conductive oxidation coating. Ideal for precision signal sampling and monitoring applications.
Specification
| Parameter | Specification |
|---|---|
| Frequency Range | 10.7 – 14.5 GHz |
| Main Path VSWR | ≤ 1.1 |
| Auxiliary Path VSWR | ≤ 1.3 |
| Coupling | 30 dB ± 1 dB |
| Directivity | ≥ 30 dB |
| Connector Type | N-Female |
| Material | Aluminum |
| Flange Type | FBP120 |
| Surface Treatment | Conductive Oxidation |
| Coating | Blue Paint |
