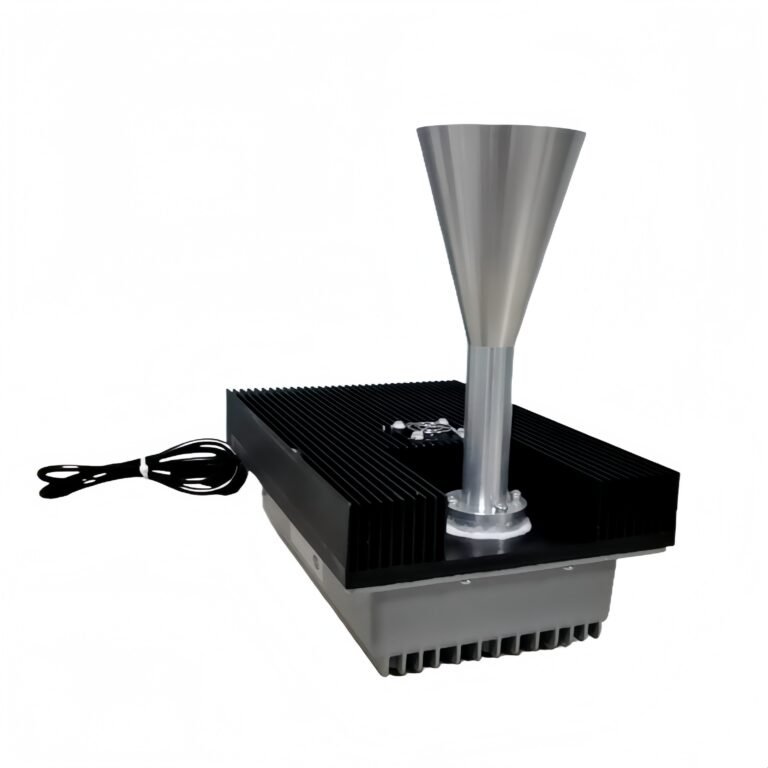

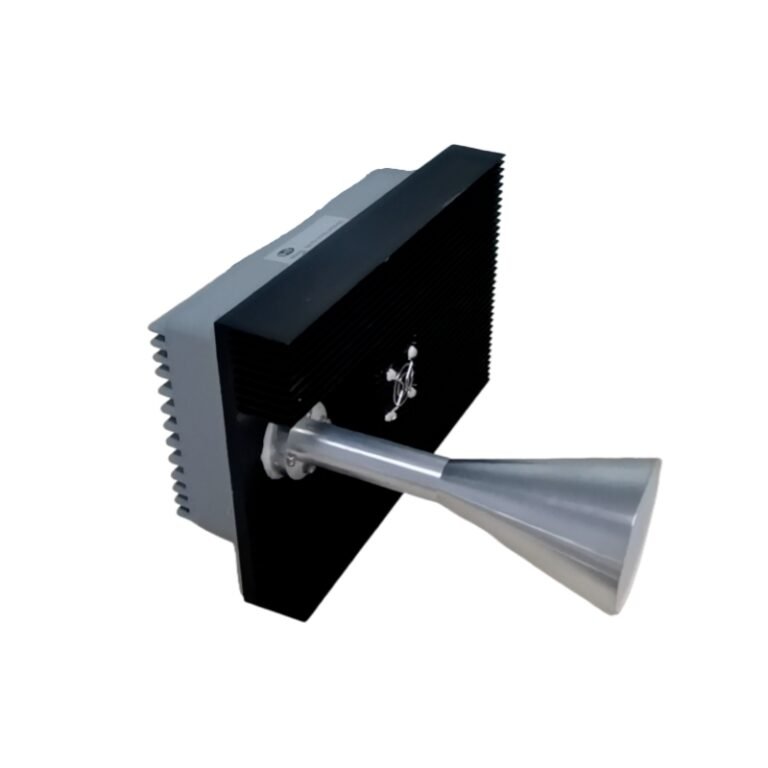

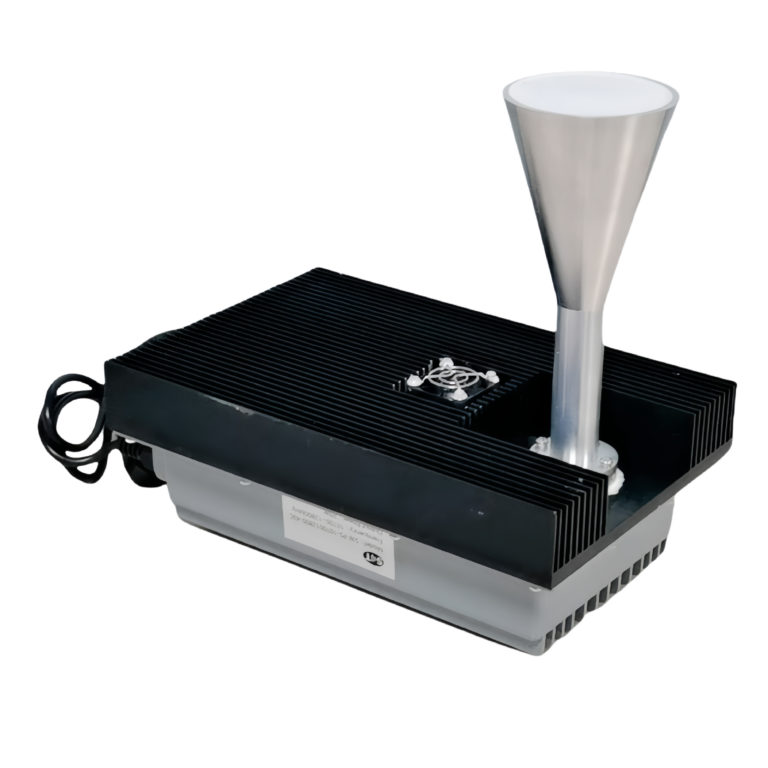

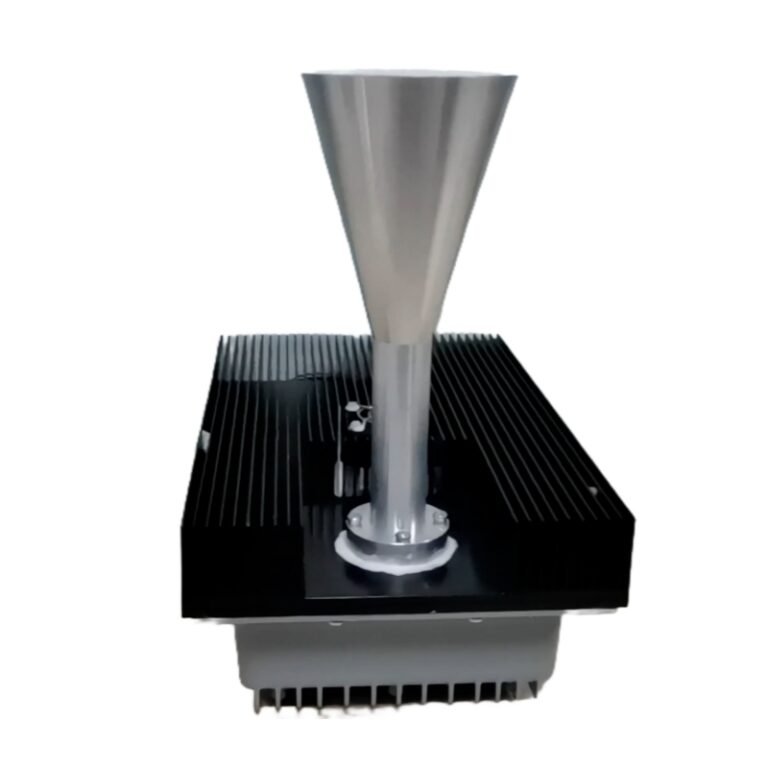

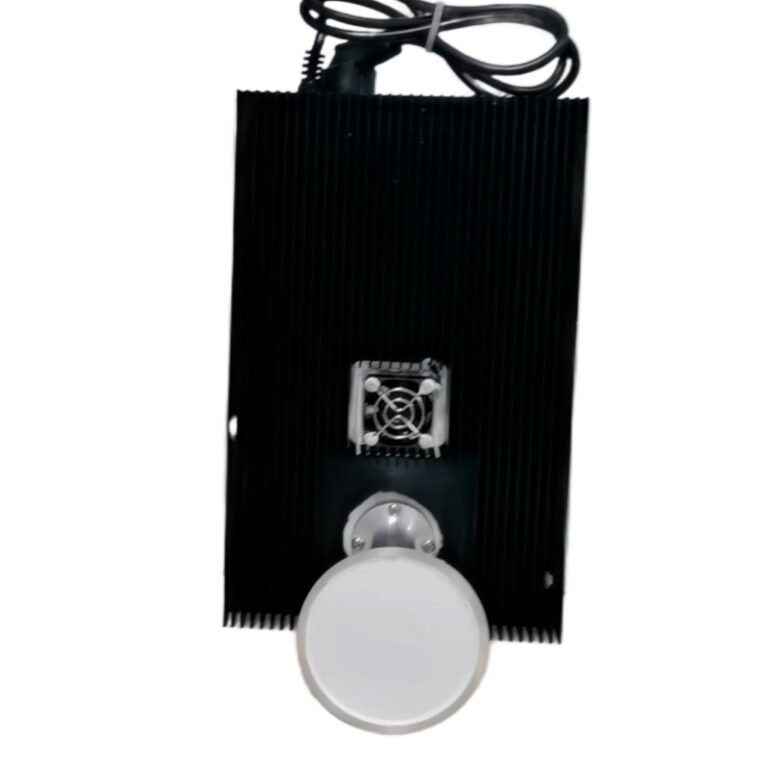

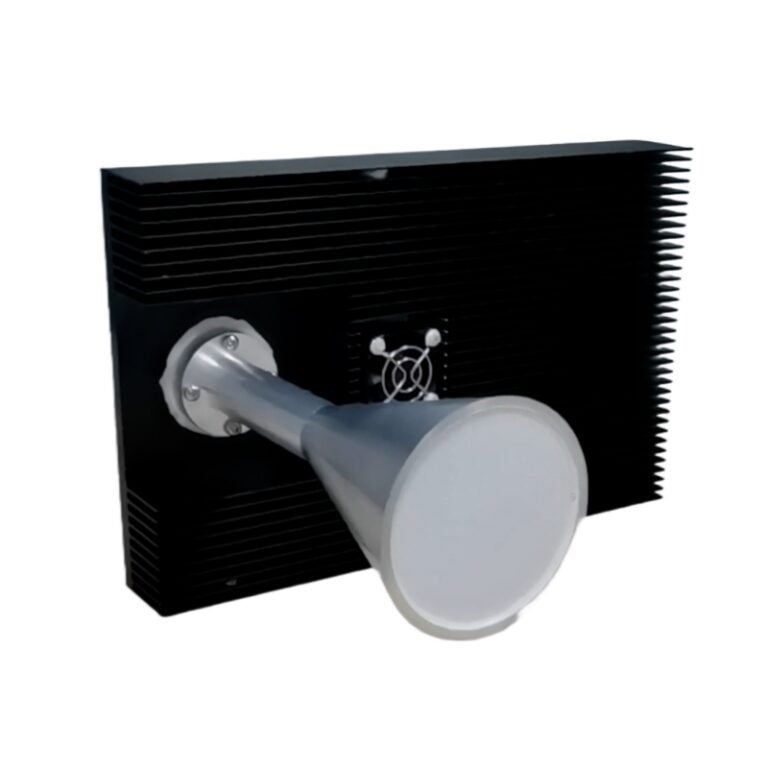

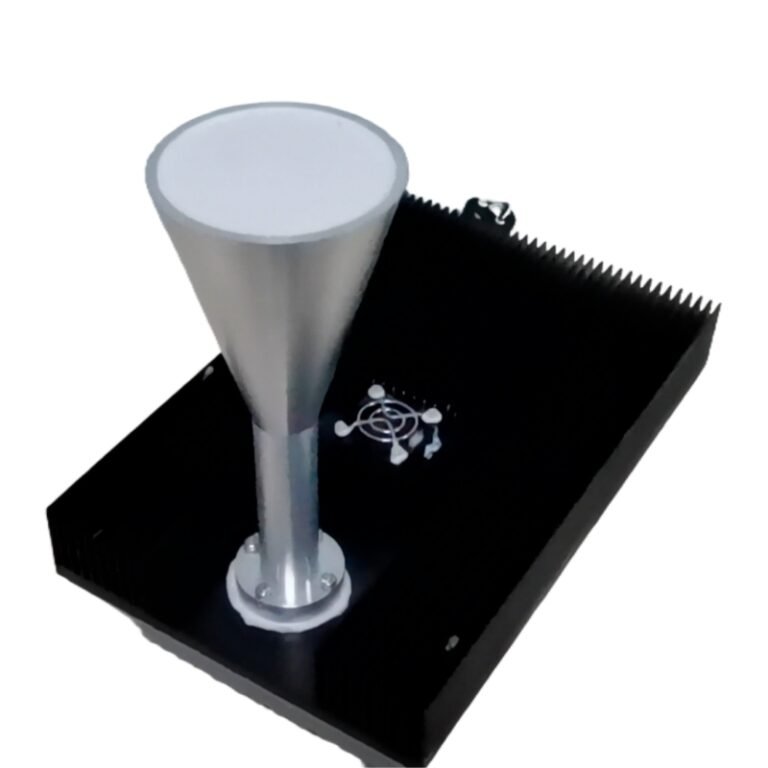

Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
Main technical parameter
| |||||
Technical indicators | coding | Min | TYP | Max | Unit |
Low Frequency Band Operating Frequency | 10.7 | 11.7 | GHz | ||
High Frequency Band Operating Frequency | 11.8 | 12.8 | GHz | ||
Saturated output power | Psat | 42.5 | 43.5 | 45.5 | dBm |
Power gain flatness | ΔG | ±1.5 | dB | ||
Spurious rejection @ saturated output | Spur | -50 | dBc | ||
Harmonic suppression @ saturated output | 2nd /3nd | -50 | dBc | ||
Input/Output Impedance | I/O-IMP | 50 | Ω | ||
electricity supply | Vdc | AC 220 | V | ||
Power consumption (CW) | Pdiss | 110 | W | ||
Antenna gain | 18 | dB | |||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

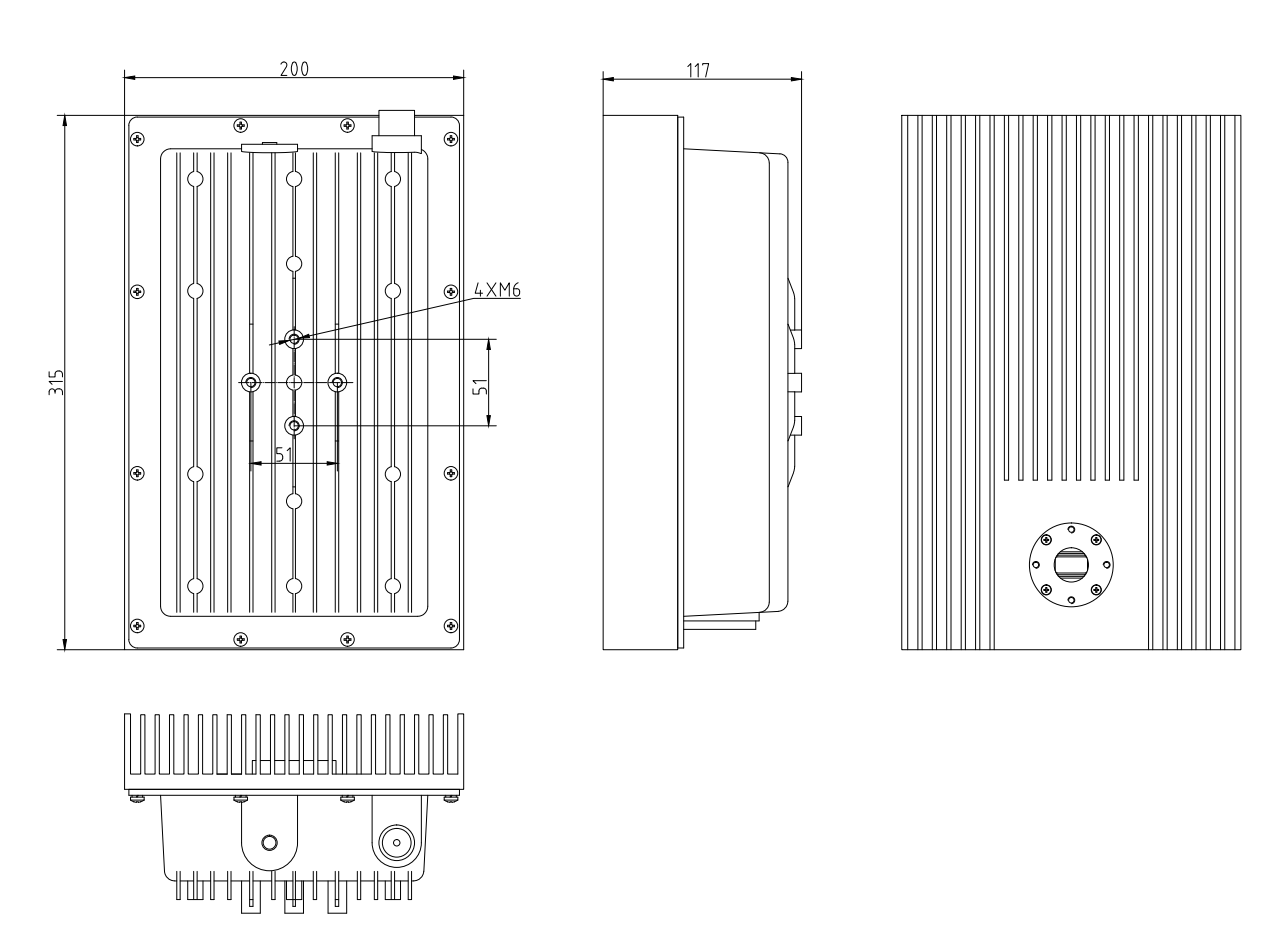

Dimensions (L x W x H) | 315*200*117mm | mm |
RF Connectors (Input / Output) | Circular waveguide port（Output） | — |
AC / Control Connector | National standard three-plug power cord(220V/10A ) | — |
Cooling | Natural air Self-cooling | — |
Mounting | 3-4 Thru Hole | — |
Weight | ≤6 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +55 | °C |
Humidity Range | 0-100 | % | |
Max RF Input | +0 | dBm | |
PA Baseplate Shutoff Temperature | + 55 | °C | |
