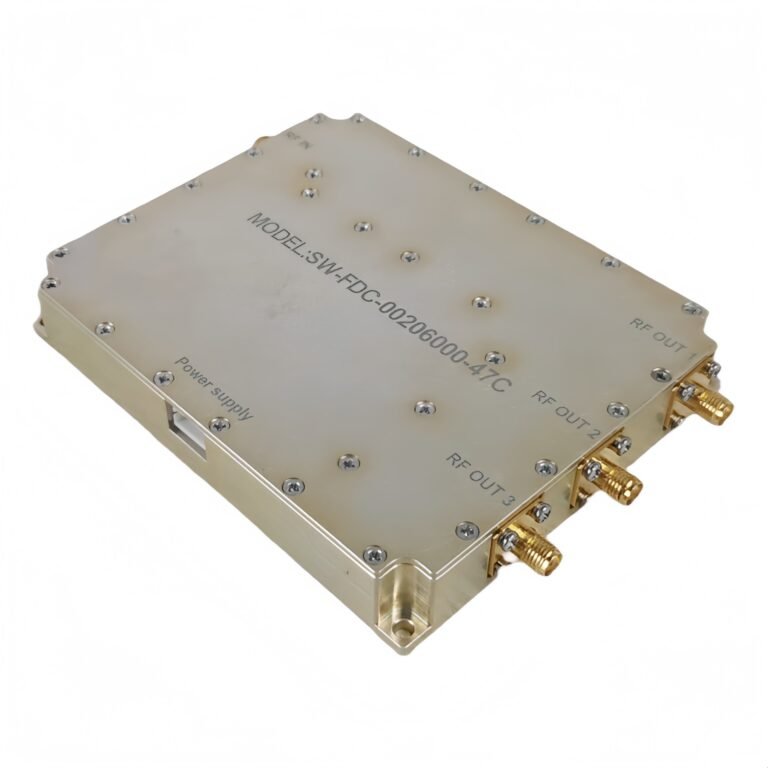

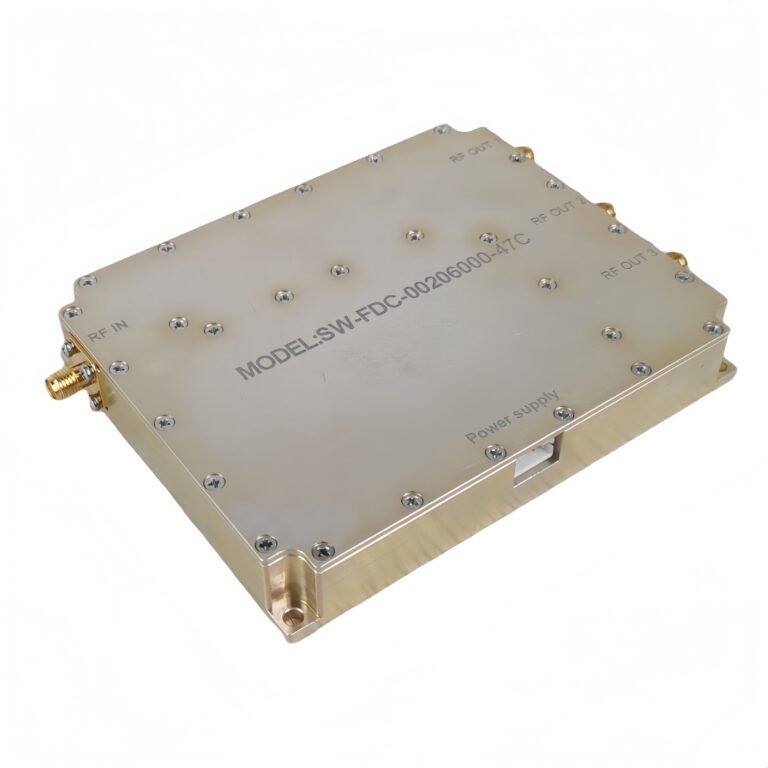

Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Input Frequency Range | 20 | 6000 | MHz | |
Output Frequency Range 1 | 20 | 500 | MHz | |
Output Frequency Range 2 | 500 | 2000 | MHz | |
Output Frequency Range 3 | 2000 | 6000 | MHz | |
RF INPUT Power Range | -20 | 10 | dBm | |
RF Gain | 0 | dB | ||
P1 dB Output Power | 10 | dBm | ||
Power Gain Flatness | ±3 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -20 | dBc | ||
Input and Output VSWR | 2 | –– | ||
Operating Voltage | 28 | V DC | ||
Current | 0.3 | A | ||

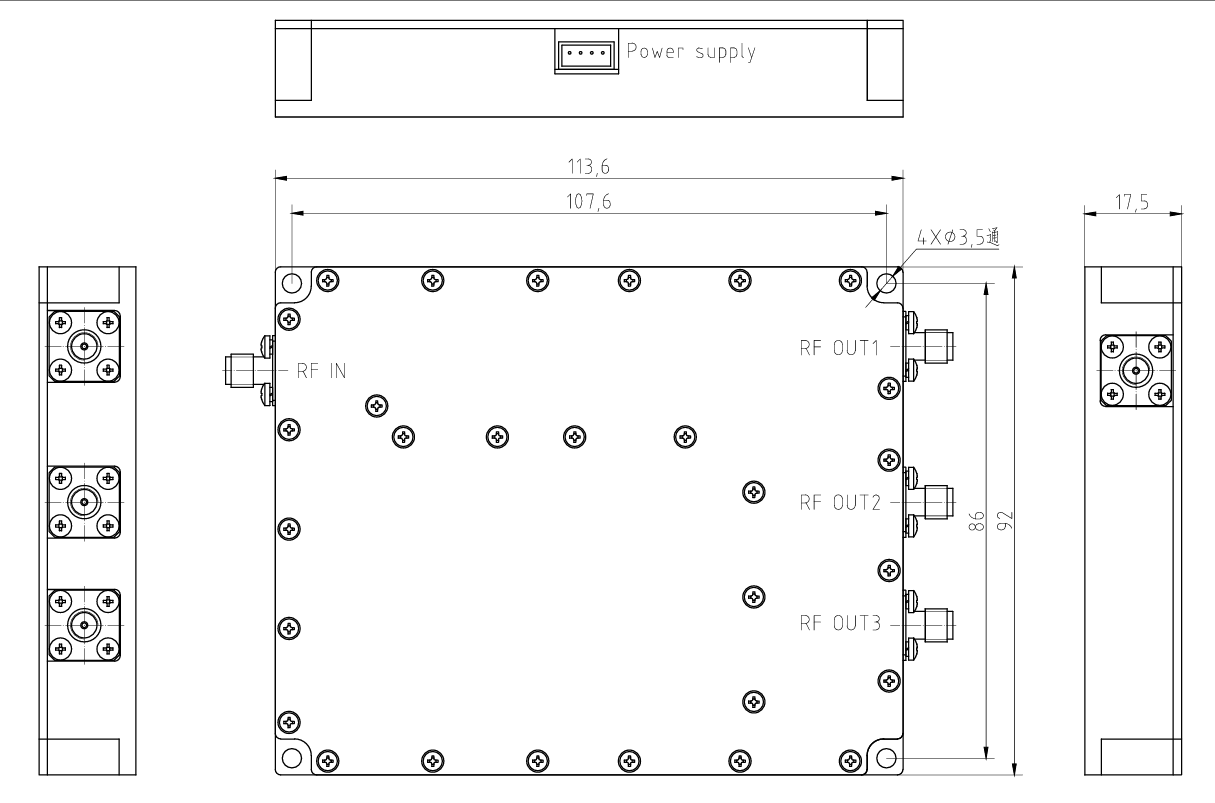

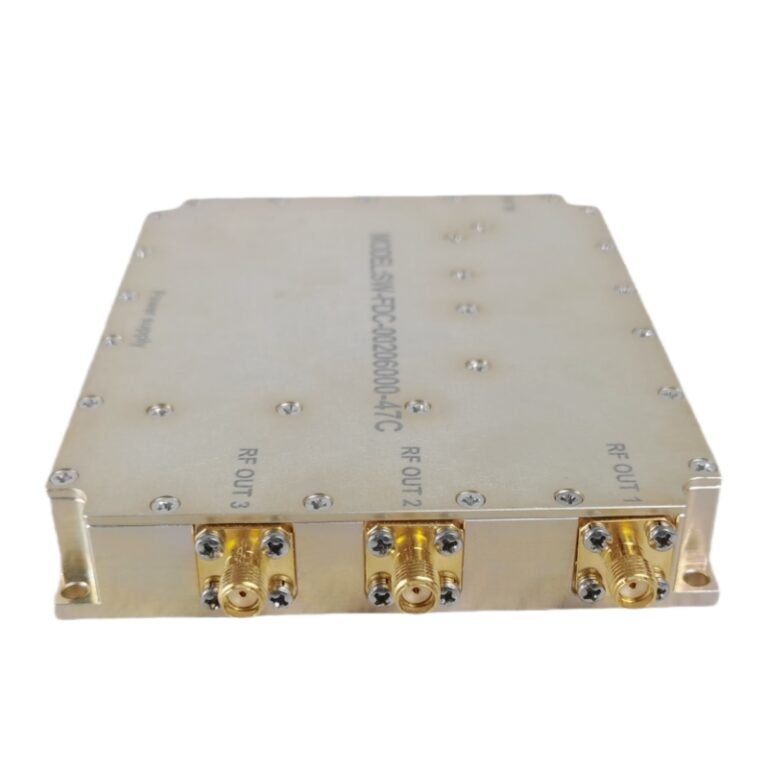

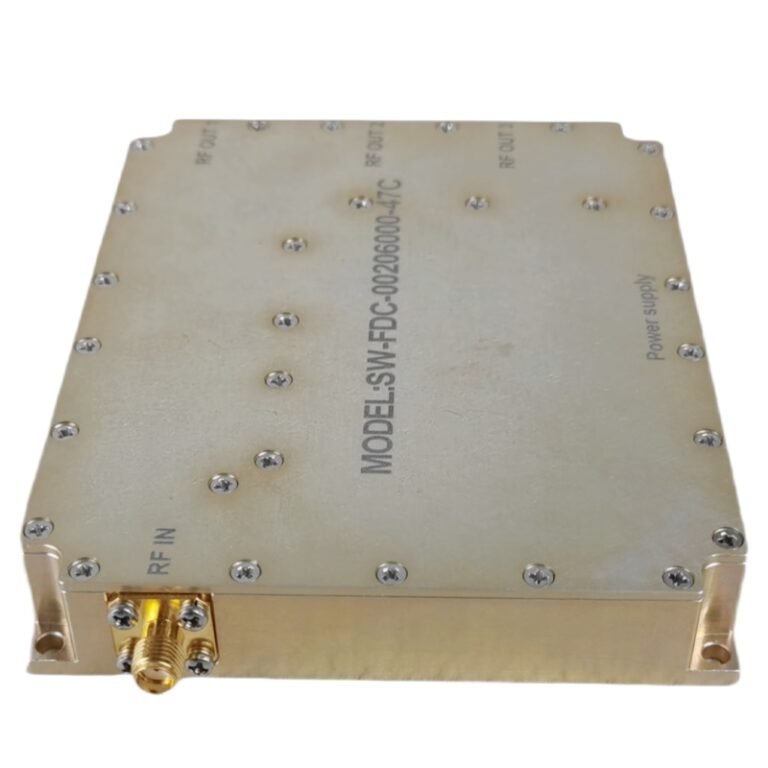

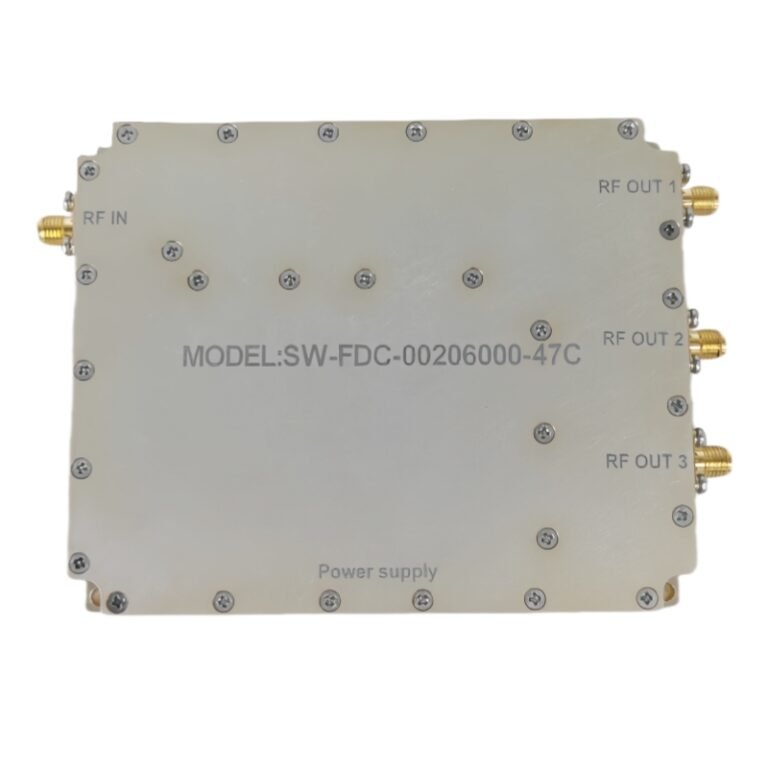

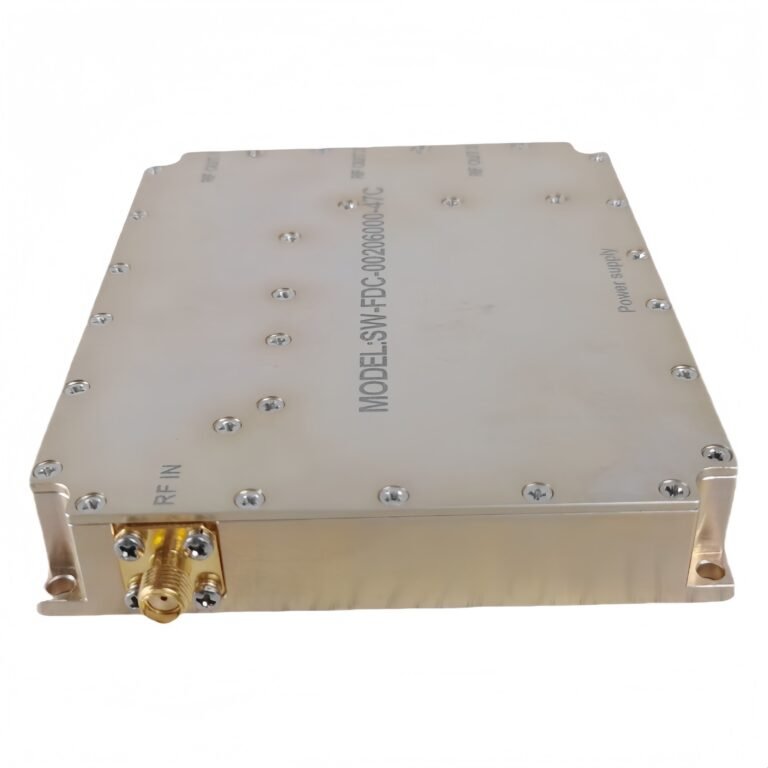

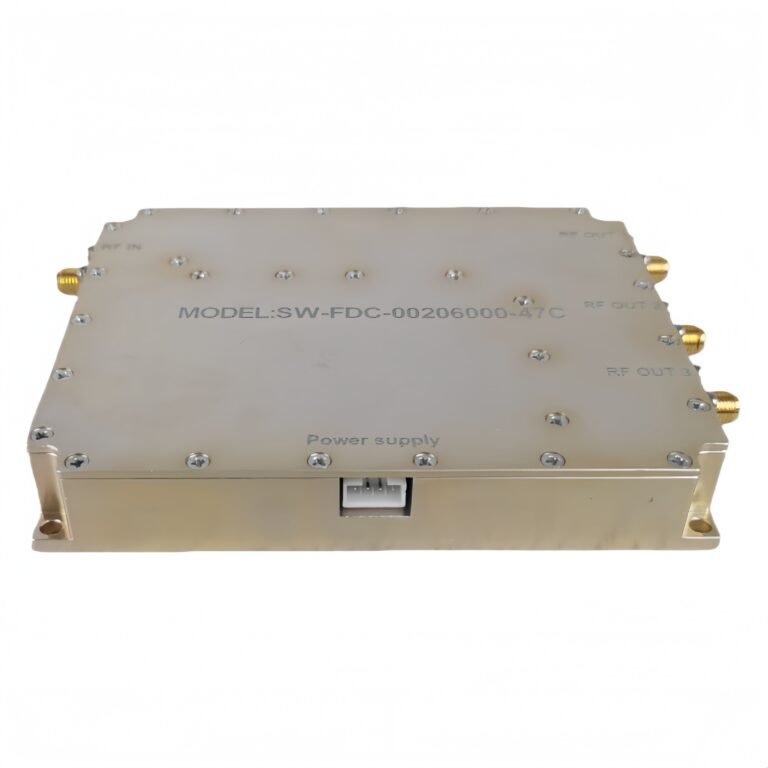

MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | 113.2*92*16 | mm |
RF Connectors (Input / Output) | SMA–KF / SMA–KF | — |
DC Connector | PH-4AW | — |
Cooling | Base heat dissipation | — |
Mounting | ||
Weight | ≤0.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +60 | °C |
Storage Temp. | -40 | +80 | °C |
Humidity Range | 0-95 | % | |
| ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |
X1 | SMA- KFD | RF IN |
X2-X4 | SMA- KFD | RF OUT 1-3 |
X5 | PH-4AW | DC interface |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | PH-4AW | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
1 | VDD | 28V |
2 | GND | GND |
3 | GND | GND |
4 | GND | GND |
