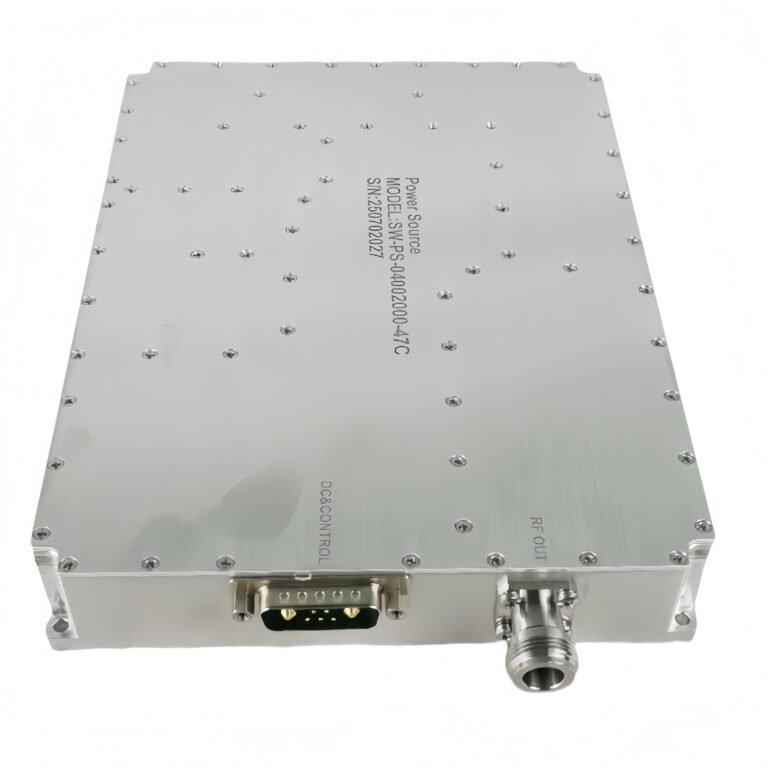

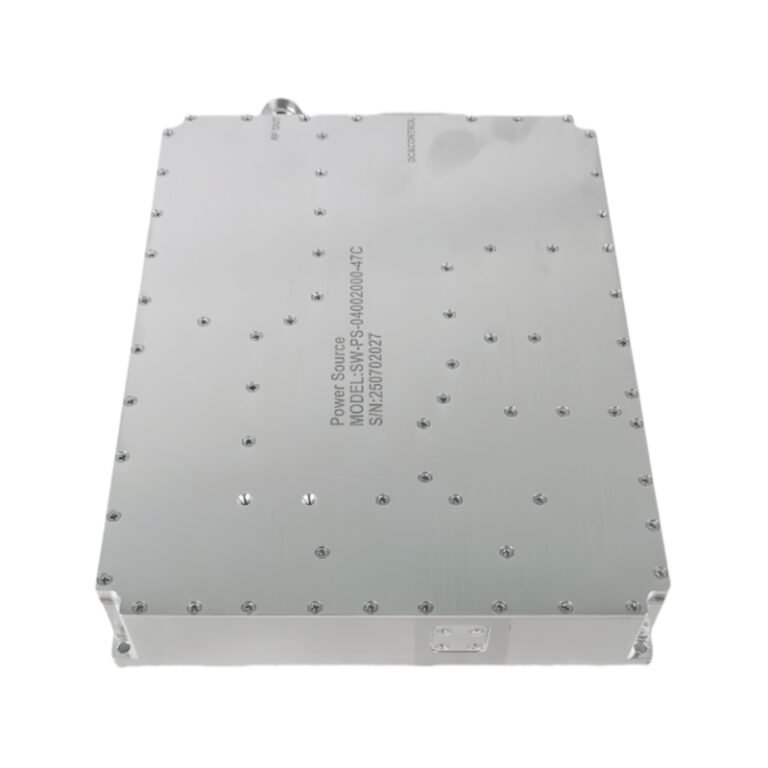

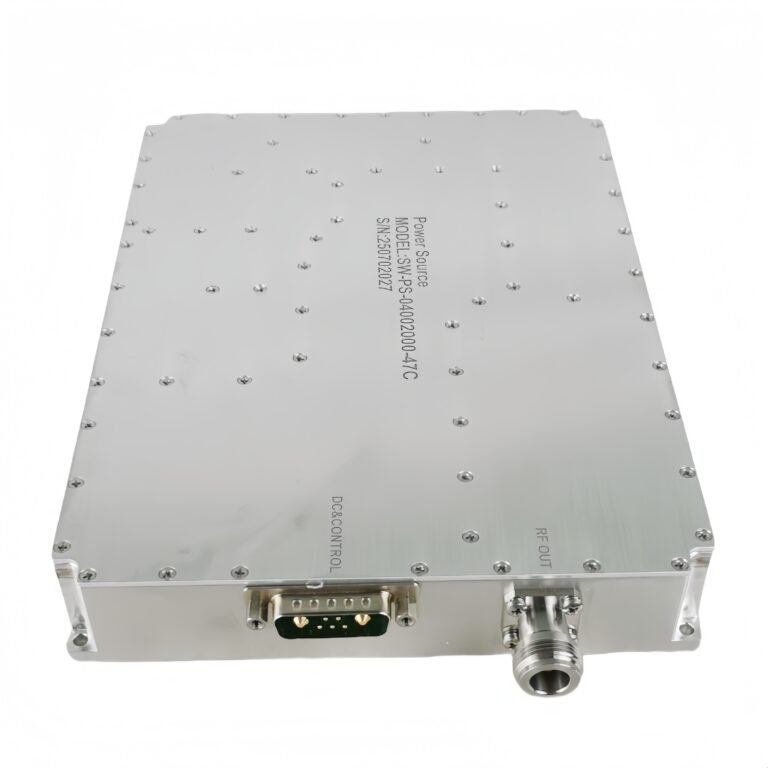

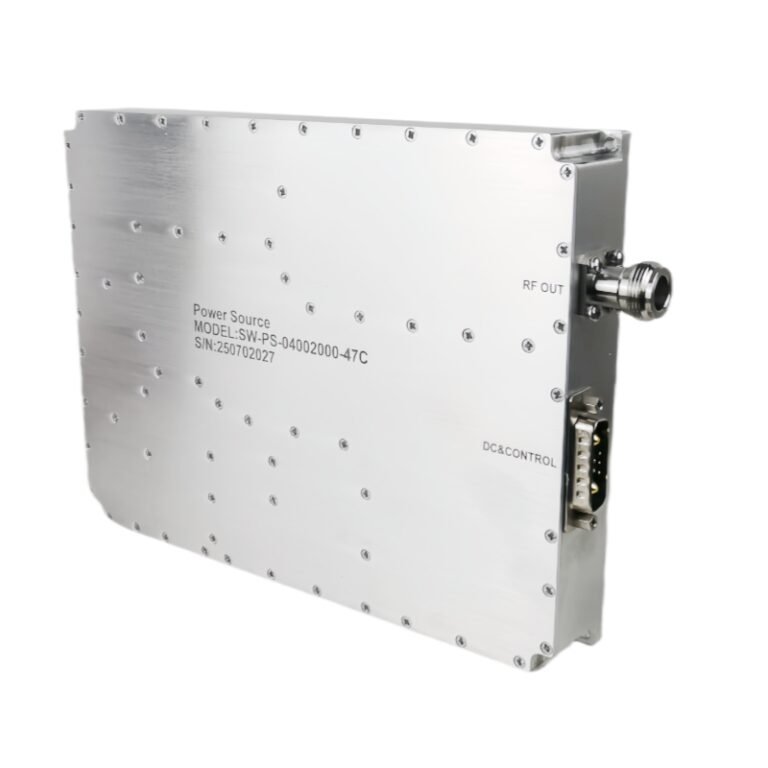

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 400 | 2000 | MHz | |
Oeration mode | Sweep frequency source | |||
P-sat Power Output | 46.5 | 47 | dBm | |
Power Gain Flatness | ±2.5 | dB | ||
Input VSWR | 2 | |||
Operating Voltage | 28 | VDC | ||
In-Out impedance | 50 | Ω | ||
Current | 7 | 8 | A | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

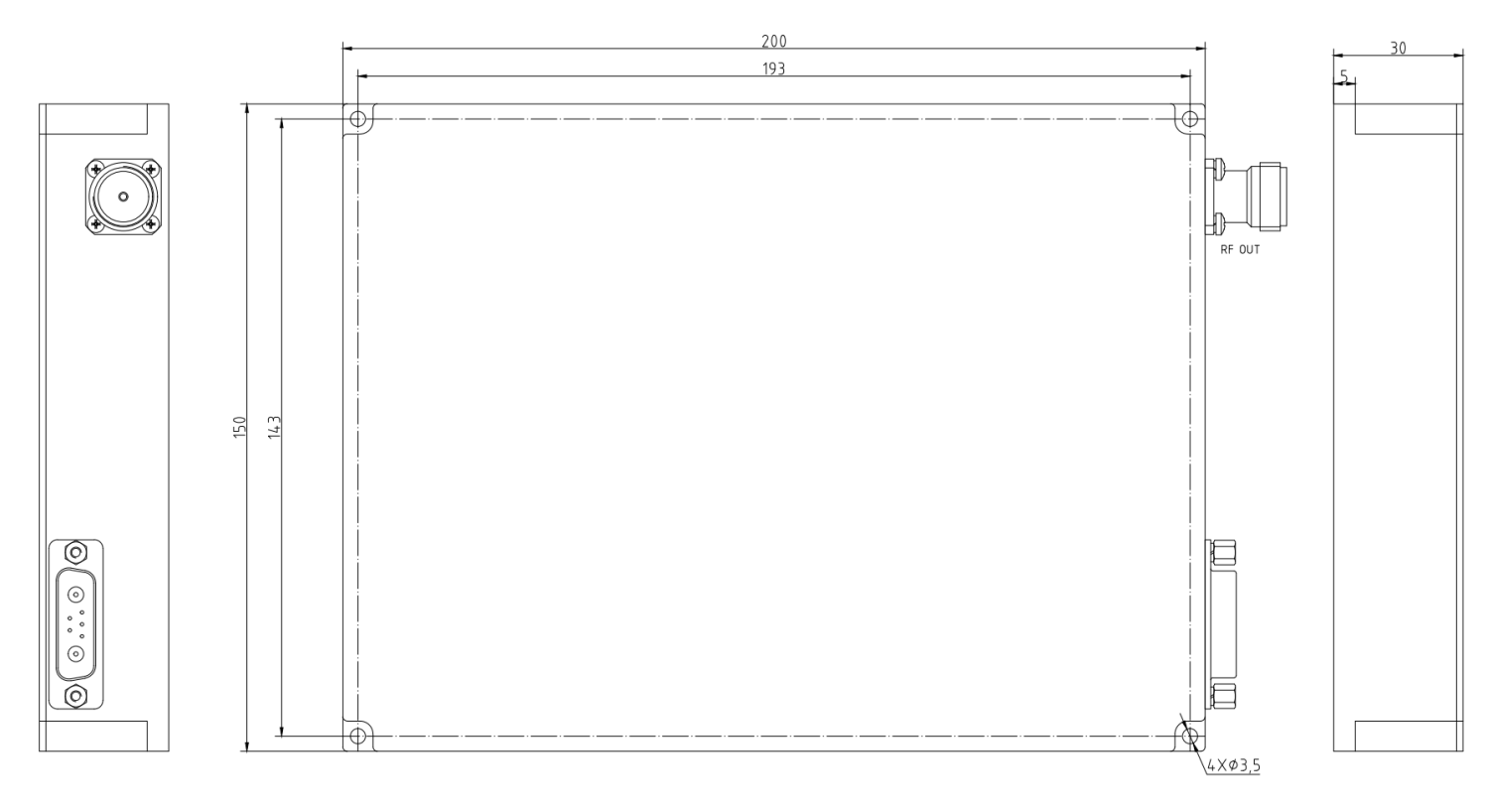

Dimensions (L x W x H) | 200x150x30 | mm |
RF Connectors (Input / Output) | N- KFD | — |
DC / Control Connector | D SUB 7W2 | — |
Cooling | Consider heat dissipation with the system | — |
Mounting | 3-6 Thru Hole | — |
Weight | ≤1.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -40 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 90 | °C | |
INPUT/OUTPUT PINS | |||
AMPLIFIER CONNECTOR TYPE: | D SUB 7W2 | ||
TRIAD CABLE PART NUMBER: | —— | ||
PIN NUMBER | LABEL | DESCRIPTION | |
A1 | +VDC | +28V | |
A2 | GND | Ground | |
1-2 | NC | NC | |
3 | RS485A | Gain Control and Seep speed Control | |
4 | RS485B | ||
5 | GND | ||
