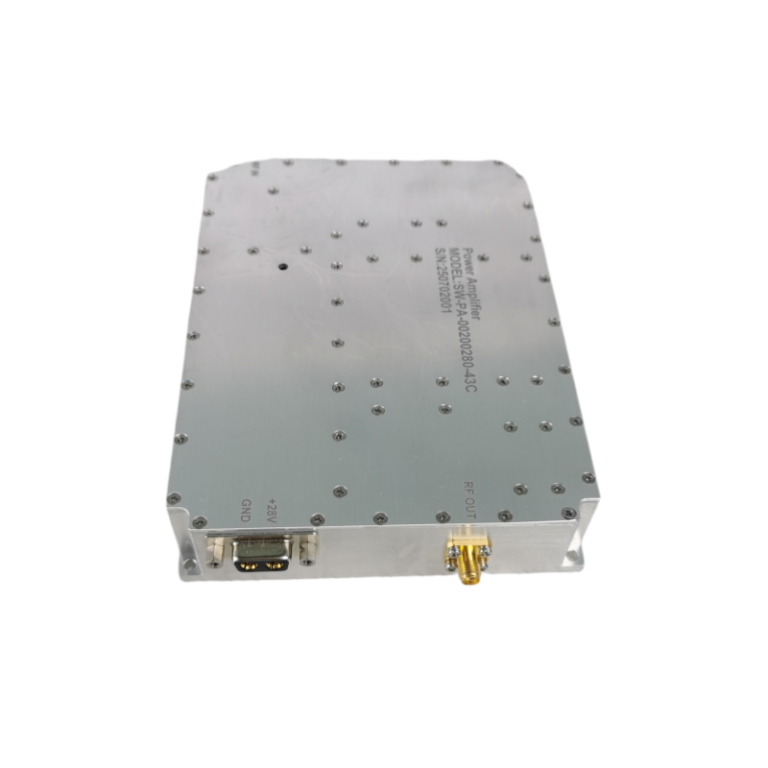

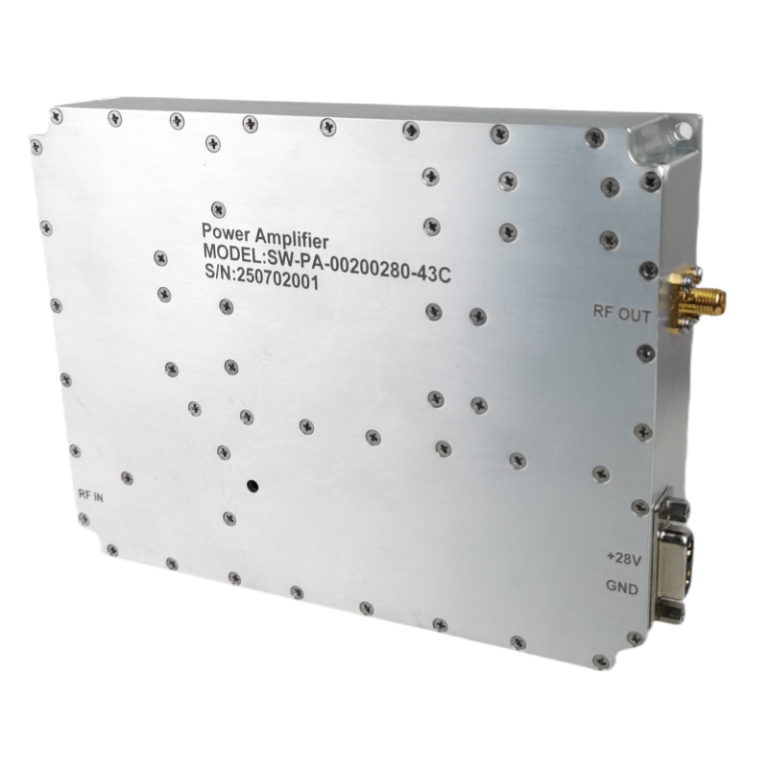

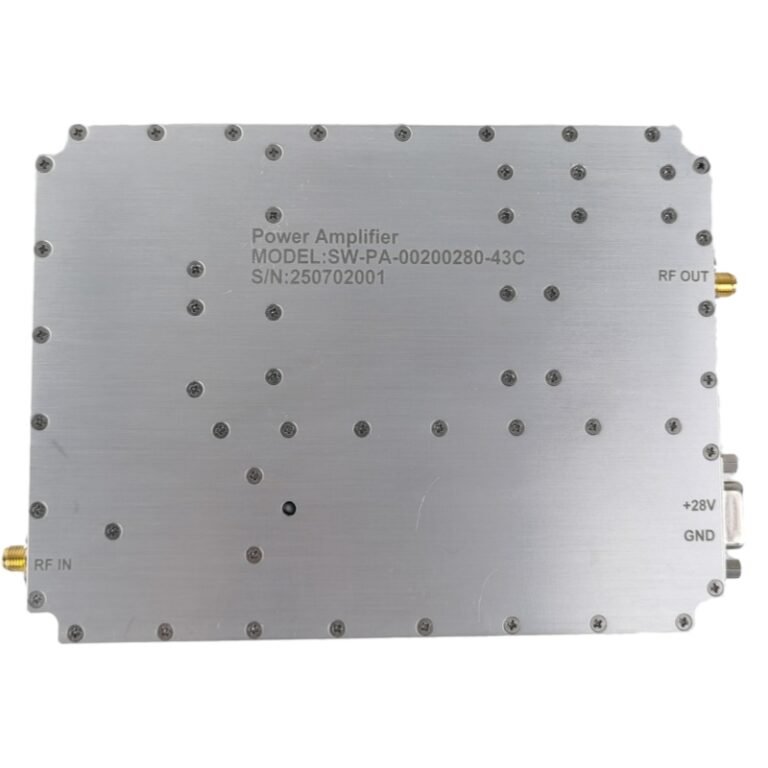

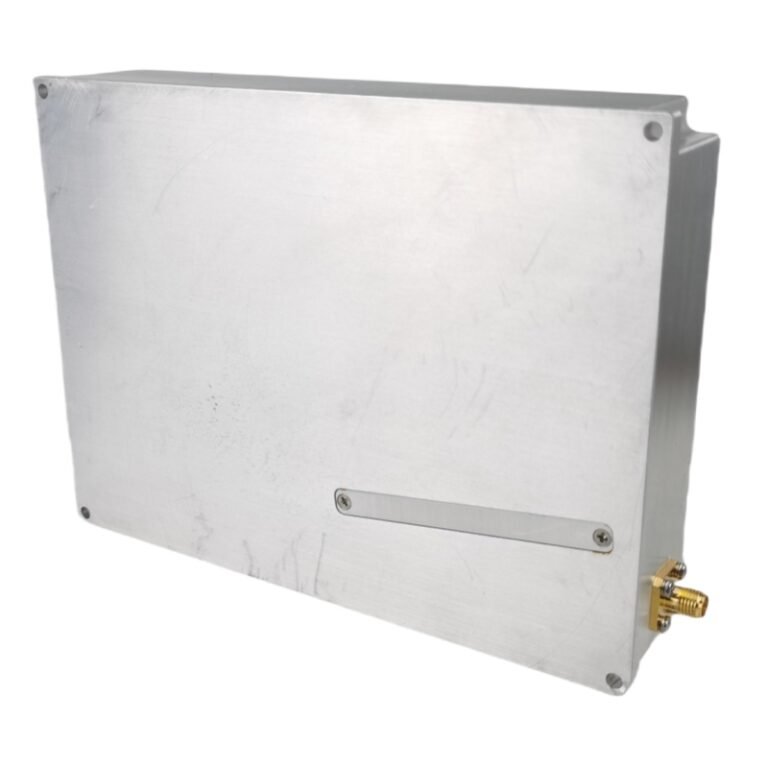

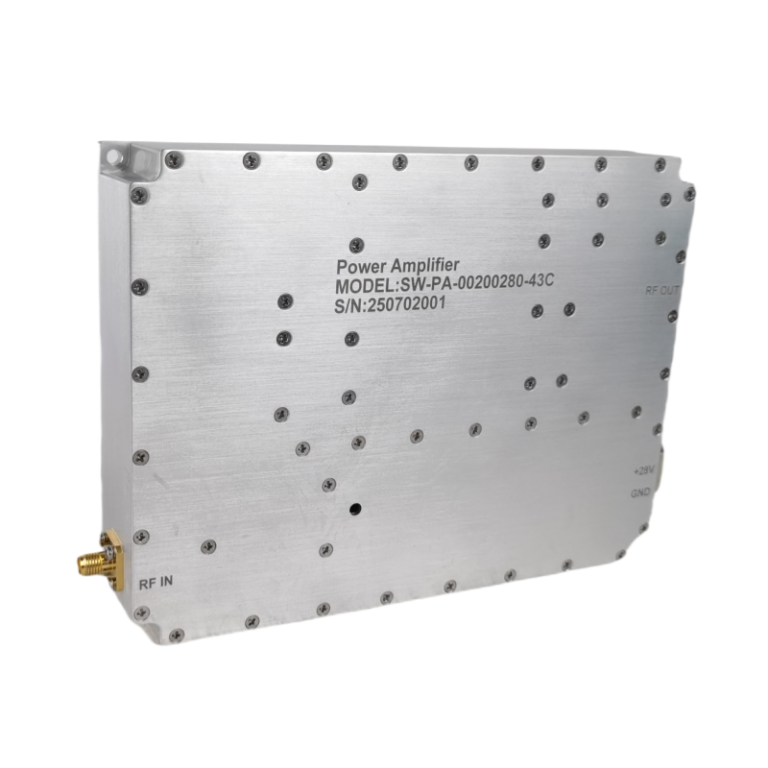

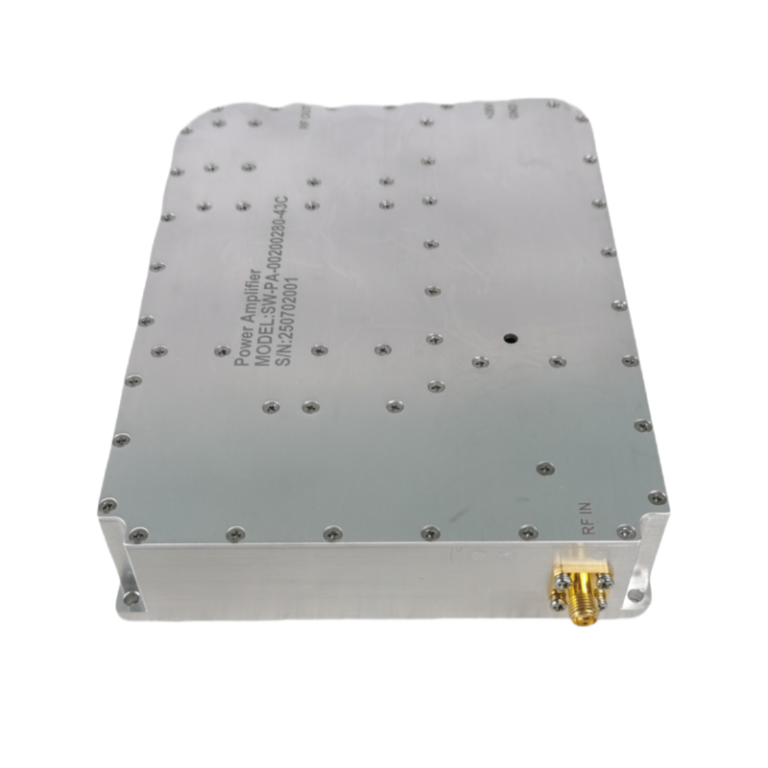

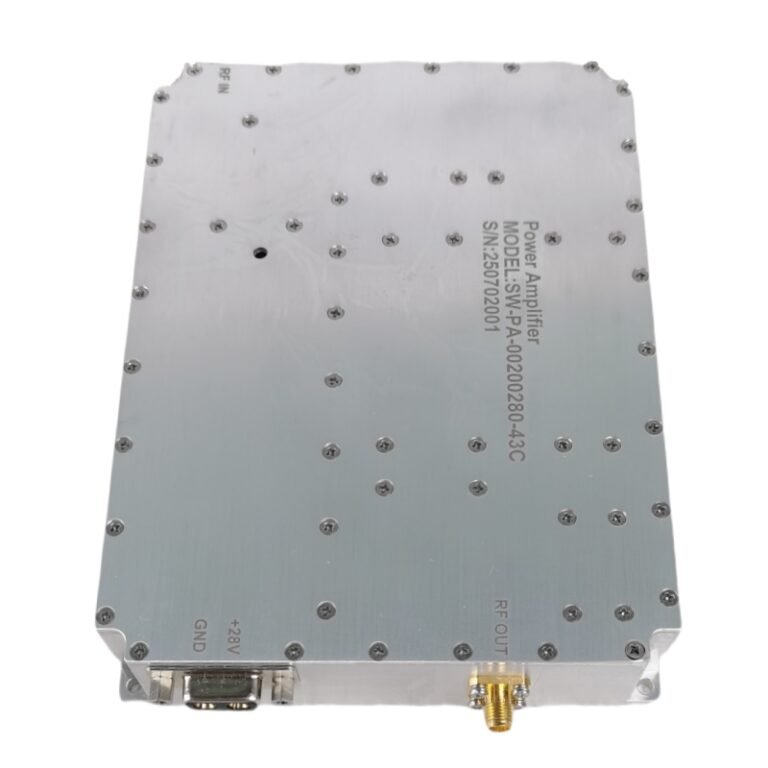

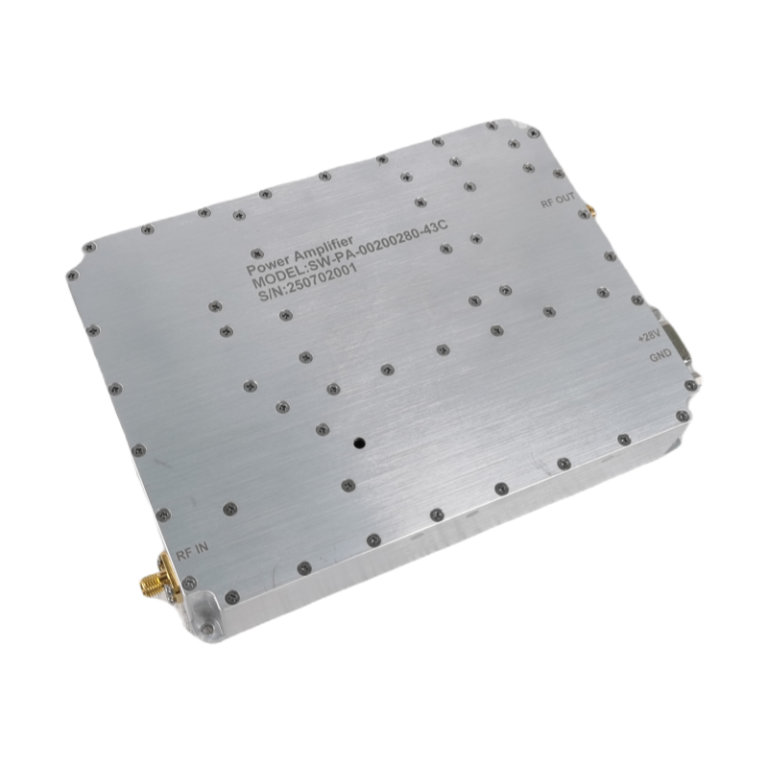

Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +28V DC +25oC, and in a 50Ω system.
|
9RF / ELECTRICAL |
||||
|
PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
|
Operating Frequency |
20 |
280 |
MHz |
|
|
RF INPUT |
-2 |
dBm |
||
|
Power Gain@ can be adjust by Potentiometer |
45 |
dB |
||
|
P-1dB Power Output |
43 |
dBm |
||
|
Frequency response@ Temp |
±0.5 |
dB |
||
|
Frequency response @ 20-280 MHz |
±2 |
dB |
||
|
Frequency response @ 40-100 MHz) |
±1 |
dB |
||
|
| ||||
|
Spurious |
-50 |
dBc |
||
|
Input VSWR |
1.5 |
|||
|
Operating Voltage |
24 |
28 |
VDC |
|
|
In-Out impedance |
50 |
Ω |
||
|
Current |
4 |
5 |
A |
|
|
MECHANICAL |
||
|
PARAMETER |
VALUE |
UNIT |
|

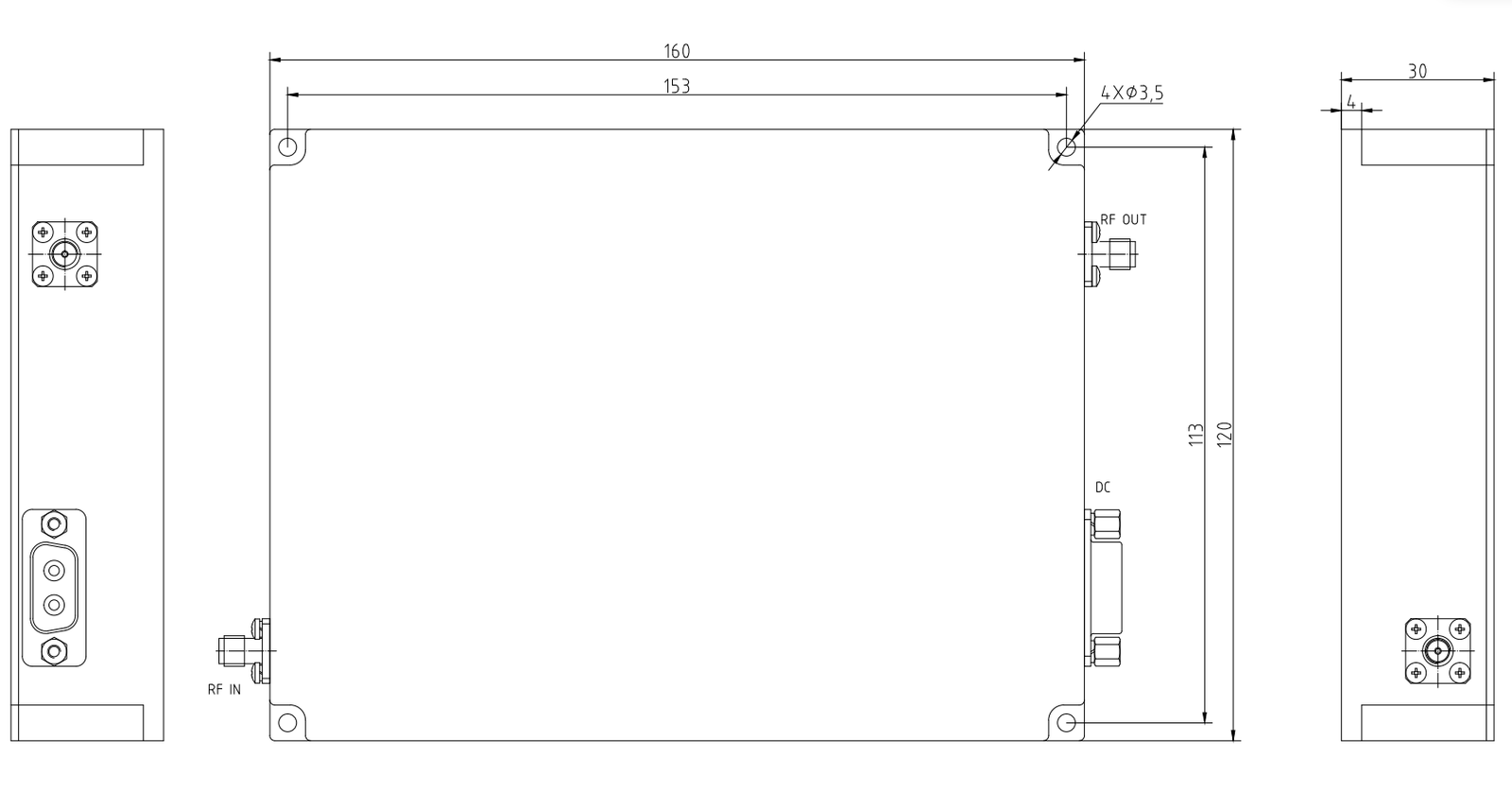

Dimensions (L x W x H) |
160×120×30 |
mm |
|
RF Connectors (Input/Output) |
SMA- KFD/SMA – KFD |
— |
|
Cooling |
Additional heat dissipation fins are required |
— |
|
Mounting |
φ4.4-4 Thru Hole |
— |
|
Weight |
≤1 |
kg |
|
ENVIRONMENTAL / PROTECTIONS |
|||
|
PARAMETER |
MIN |
MAX |
UNIT |
|
Operating Temp. (Housing Temp.) |
+10 |
+50 |
°C |
|
Connector Definition |
||
|
AMPLIFIER CONNECTOR TYPE: |
D-SUB 2W2 |
|
|
TRIAD CABLE PART NUMBER: |
—— |
|
|
NUMBER |
Definition |
DESCRIPTION |
|
1 |
VDD |
+28V |
|
2 |
GND |
GND |
